Hilti GX 3 Operating Instructions

*2126636*
2126636 English 5
3 Description

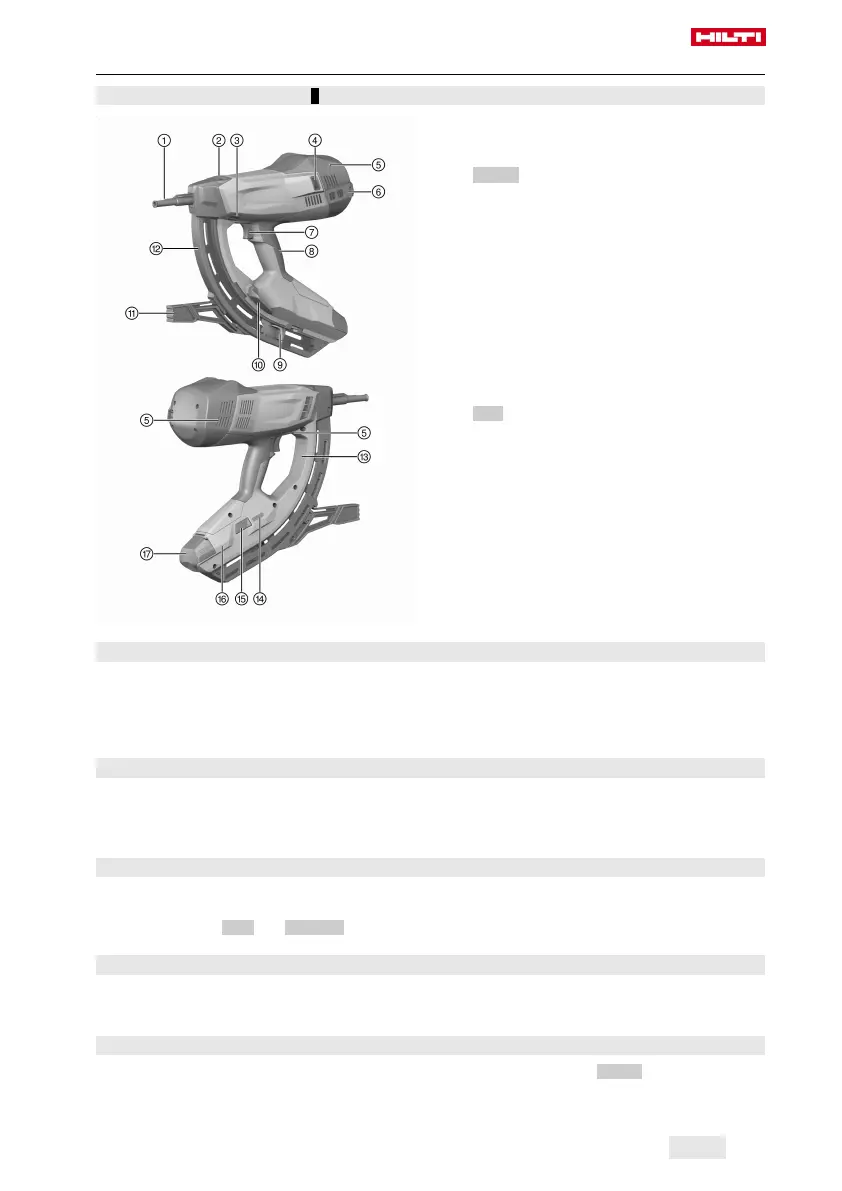

3.1 Overview of the product 1
@
Fastener guide
;
Slider for fastener driving depth adjustment
and for releasing the fastener guide
=
RESET button
%
Inlet/outlet valve
&
Cooling air slots
(
Belt hook
)
Trigger
+
Grip
§
Nail pusher
/
Magazine lockbutton
:
Support leg
∙
Magazine
$
Type identification plate
£
Gas can status indicator
|
GAS button
¡
Gas can compartment
Q
Gas can compartment cover
3.2 Intended use
The product described is a gas-actuated fastening tool (“fastening tool”). It is designed to drive suitable
fasteners into concrete, steel, sand-lime block, concrete-block masonry, rendered masonry and other
materials suitable for use of the direct fastening technique.
The fastening tool is for hand-held use or use with the pole tool extension (accessory) only.
3.3 Items supplied
Gas-actuated fastening tool with fastener guide, toolbox, operating instructions.
Other system products approved for use with this product can be found at your local Hilti Center or online
at: www.hilti.group
3.4 Fastener guide
The fastener guide holds the studs or, respectively, guides the nails and, when the tool is fired, thus directs the
fasteners into the supporting material at the desired position. Application-specific fastener guides (IF or ME)
are available for the GX 3 and GX 3-ME fastening tools (see type identification plate for exact designation).
3.5 Fasteners
Two types of fastener can be driven by the fastening tool: nails and threaded studs. Additional fastening
components, which can be inserted in the fastener guide, are also available for various applications.
3.6 Slider for fastener driving depth adjustment and for releasing the fastener guide
The slider can be used to reduce the depth to which the fastener is driven. In the EJECT position, it releases
the fastener guide for removal.
Printed: 07.06.2018 | Doc-Nr: PUB / 5261663 / 000 / 02
