5.2.9 Connections for safeethernet, Ethernet/Networking Example
For the networking via safeethernet or Ethernet the devices are equipped – depending on
the design – with two or four connections arranged on the lower and upper side panels of the
case or on the front side (e.g. F60).

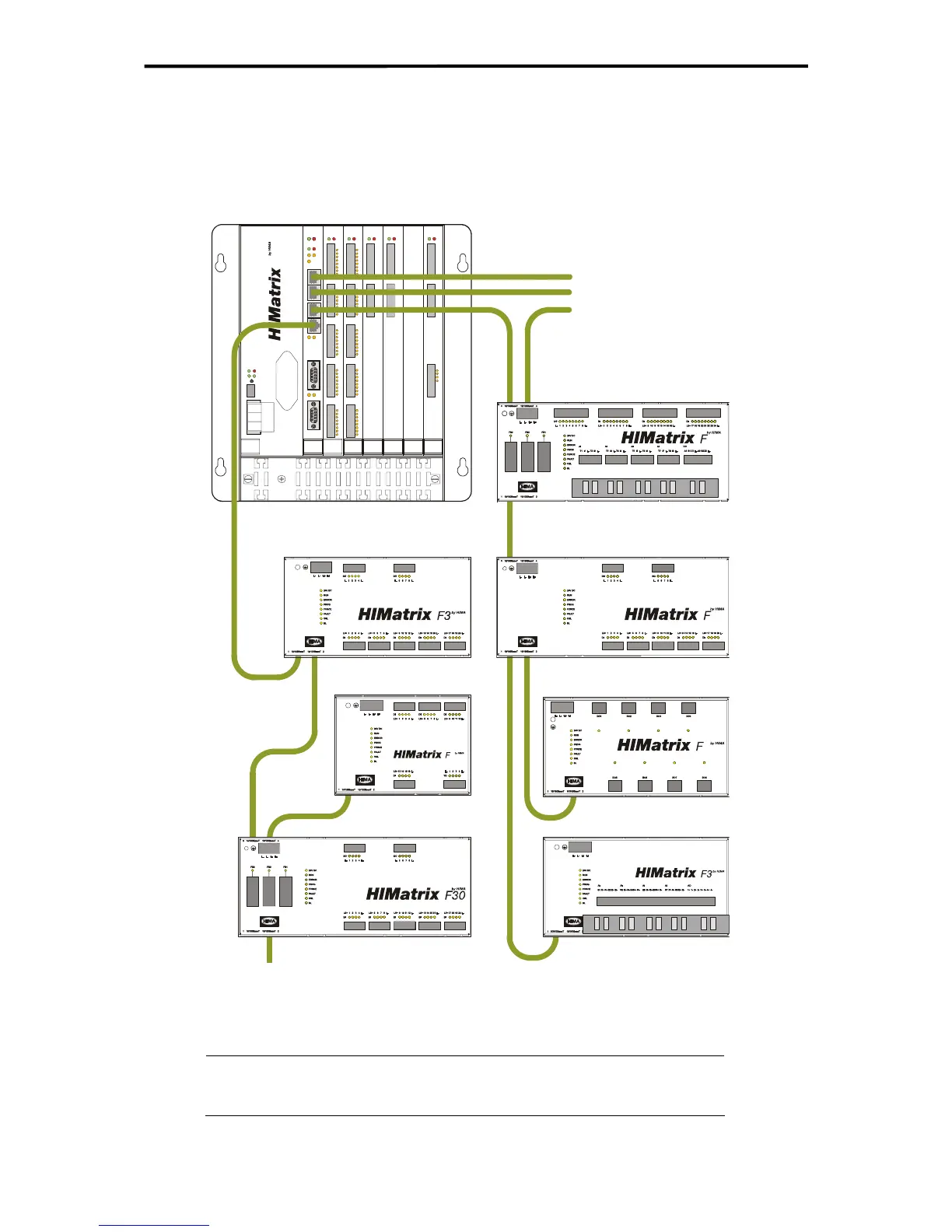

Safeethernet Networking example:
superior safe ethernet
from other F60
PADT with
ELOP II Factory
PADT with ELOP II Factor
y
35
AIO
8/4 01
DO
8 01
2
3
1
DI
16 01
1
DIO
20/8 02
F60
Figure 9: Safeethernet Networking example
The various systems can be networked together as required via Ethernet (star or line con-
figuration). A programming unit (PADT) can also be connected wherever required.
Note
Make sure that no network rings are formed when connecting
systems together. A system must receive data packets on only
one path.
