HIMA HIMatrix F3 AIO 8/4 01 Engineering Manual

HI 800 101 HIMatrix Engineering Manual

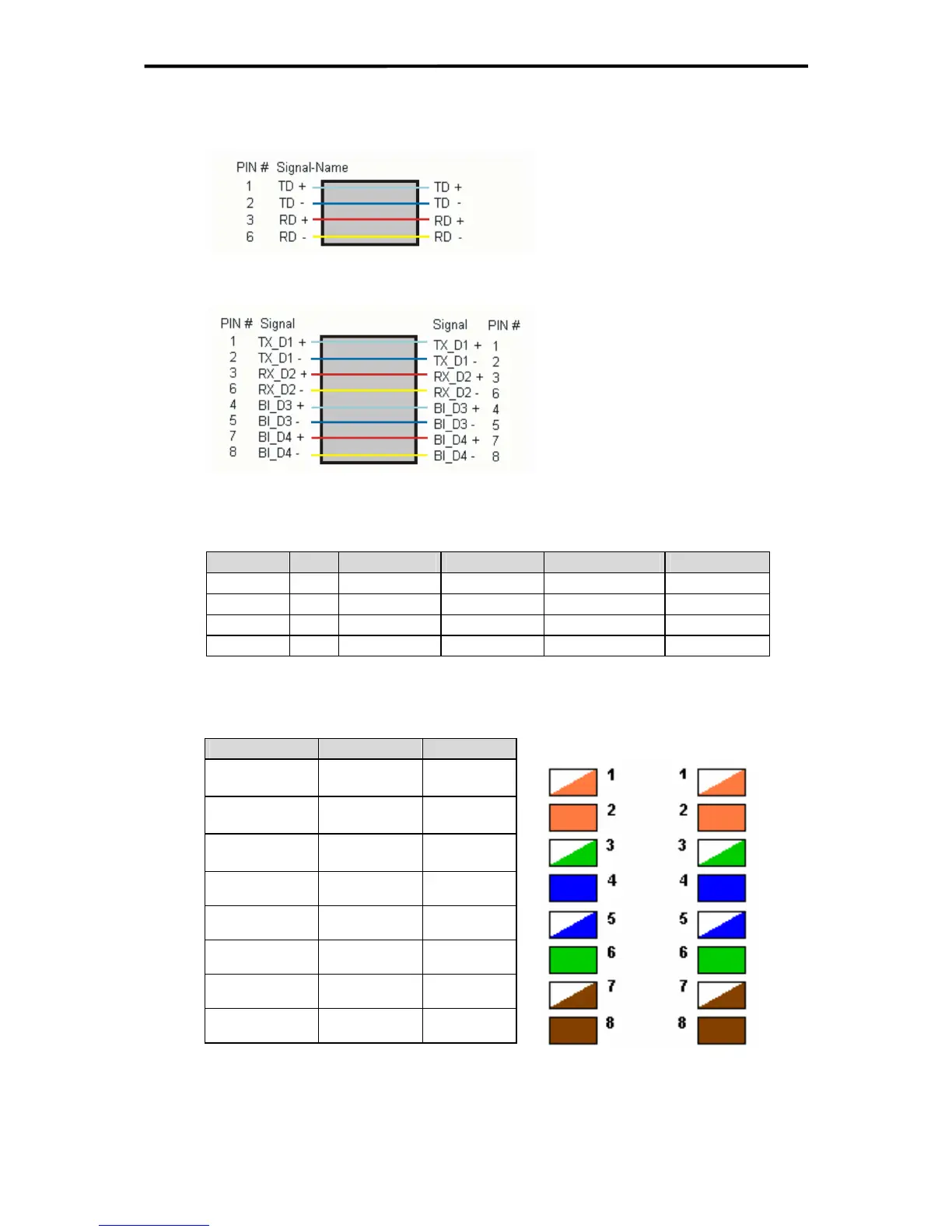

Patch cable
Controllers with integrated switch or components connected to a switch must be connected
with a (1:1) patch cable (see following scheme).
Figure 14: Patch cable 10BaseT/100BaseT
Figure 15: Patch cable 1000BaseT
Assignment and color codes for RJ45 plugs
Core pair Pins EIA/TIA IEC REA DIN 47.100
1 4/5 blue/white white/blue white/blue white/brown
2 1/2 white/orange red/orange turquoise/violet green/yellow
3 3/6 white/green black/gray white/orange gray/pink
4 7/8 white/brown yellow/brown turquoise/violet blue/red
Table 10: Assignment and color codes for RJ45 plugs
Assignment RJ45 plug for Ethernet according to EIA/ITA
Signal Pin Color
TX+ 1 white/orange
TX- 2 orange
RX+
3
white/green
BI+ 4
Blue
BI- 5
white/blue
RX- 6
green
BI+ 7
white/brown
BI- 8
brown
TX = Send data, RX = Receive data, BI = Bidirectional transfer of data
Table 11: Assignment and color codes for RJ45 plugs according to EIA/ITA 568B
37 of 61
