HANGING THE FAN
06
|
hinkley.com
INSTALLATION OF SAFETY CABLE SUPPORT

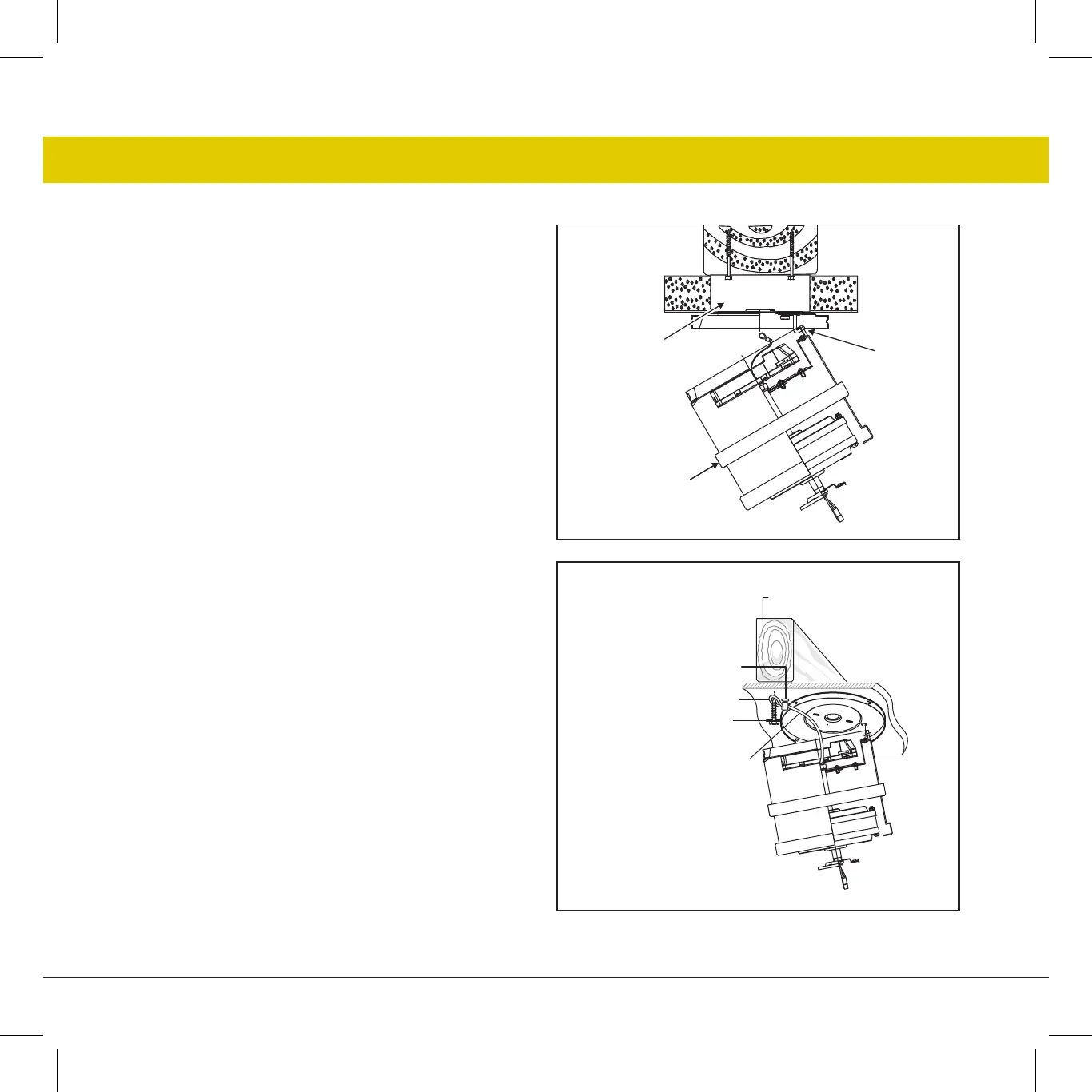

Attach the wood screw and the flat washer to the ceiling joist as
shown (do not fully tighten). Slide the cable clamp onto the safety
cable from the fan. Loop the safety cable around the wood screw
that was just attached to ceiling joist. Feed the end of the cable
into the clamp and pull as much cable through as possible. Firmly
tighten screw in the clamp. Cut off excess cable. (Fig. 2)
You are now ready to make the electrical connections.
Safety cable clamp
Wood ceiling joist
Safety cable loop
Wood screw and washer
Hook
REMEMBER to turn off the power. Follow the steps below to hang
your fan properly.
Place the decorative ring onto the motor housing.
Carefully lift fan motor assembly (without the blades) into position
by hanging the motor assembly onto the hook from the ceiling
adapter plate allowing it to hang freely. (Fig. 1)
Safety cable
Fig. 1
Fig. 2
Decorative
ring
Outlet box
