HEADQUARTERS
81 Koizumi, Ueda, Nagano, 386-1192, Japan
TEL +81-268-28-0562 FAX +81-268-28-0568
http://www.hioki.com / E-mail: os-com@hioki.co.jp
HIOKI USA CORPORATION
TEL +1-609-409-9109 FAX +1-609-409-9108
http://www.hiokiusa.com / E-mail: hioki@hiokiusa.com
All information correct as of Dec. 27, 2016. All specications are subject to change without notice. PW3198E14-6ZE Printed in Japan
DISTRIBUTED BY
HIOKI (Shanghai) SALES & TRADING CO., LTD.
TEL +86-21-63910090 FAX +86-21-63910360
http://www.hioki.cn / E-mail: info@hioki.com.cn
HIOKI SINGAPORE PTE. LTD.
TEL +65-6634-7677 FAX +65-6634-7477
E-mail: info-sg@hioki.com.sg
HIOKI KOREA CO., LTD.
TEL +82-2-2183-8847 FAX +82-2-2183-3360
E-mail: info-kr@hioki.co.jp
Note: Company names and Product names appearing in this catalog are trademarks or registered trademarks of various companies.

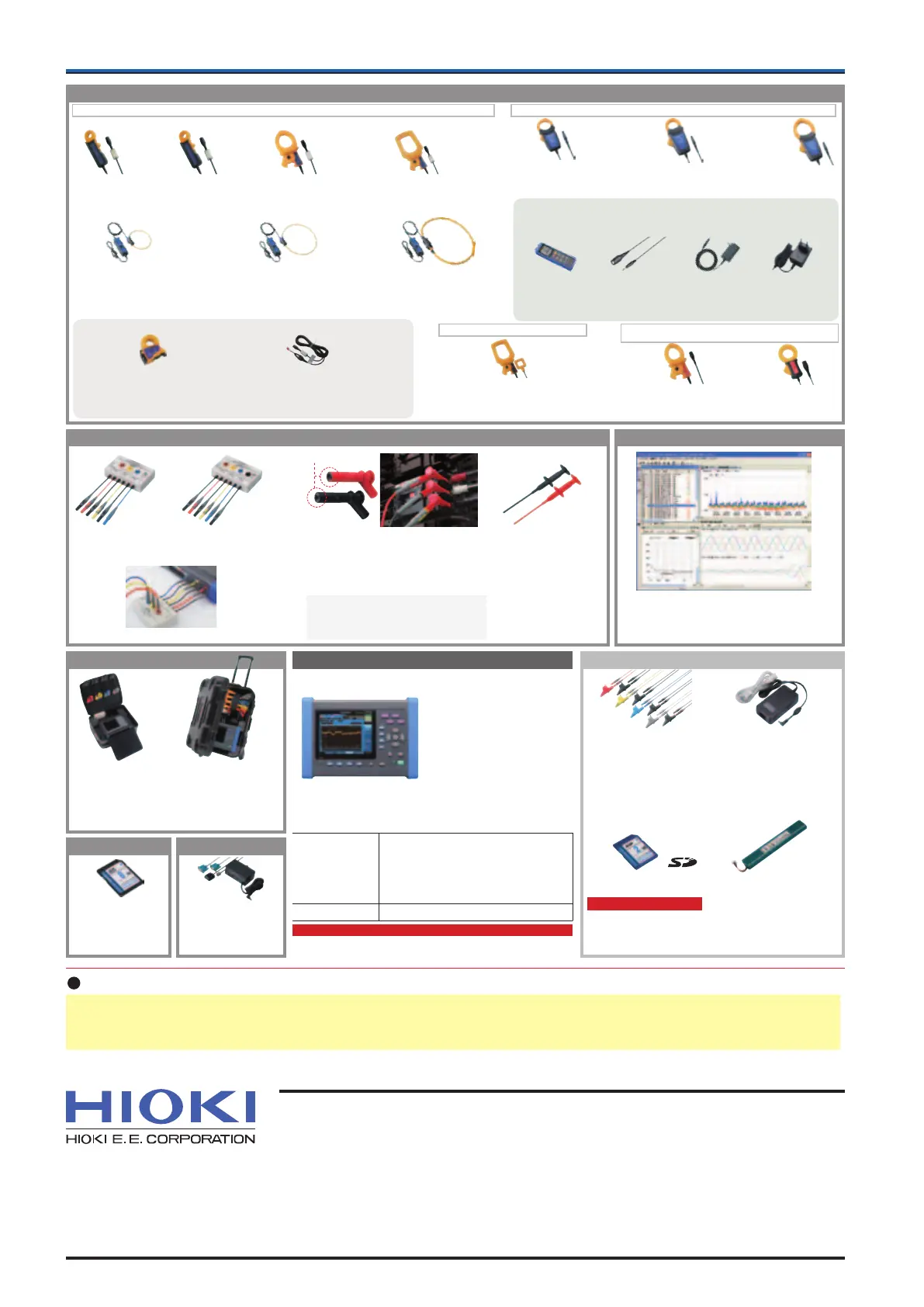

Case
Voltage measurement
Current measurement (see P.14 -15 Clamp-on sensors specications for details)
Options
Combination example: For three-phase 4-wire circuits containing leak current
9675
10A AC(Up to 5A
on Model PW3198),
φ3 0 m m (1.18 " ),
9694
5A AC,
φ15mm(0.59”)
9669
1000A AC, φ5 5mm (2.17 ”),
80 (3 .15")×20(0.79")mm busbar
9657-10
10A AC (Up to 5A
on Model PW3198),
φ40mm(1.57"),
9660
100A AC,
φ15mm(0.59”)
9661
500A AC,
φ46mm(1.81”)
CT7731
100A AC/DC,
φ33mm(1.30”)
CT7736
600A AC/DC,
φ33mm(1.30”)
CT 7742
2000A AC/DC,
φ5 5mm (2.17”)
9290-10
CT ratio 10:1, AC1000A,
φ5 5mm (2.17 " ),
80 (3 .15")×20(0.79")mm busbar,
Cord length : 3m(9.84ft)
CLAMP ON SENSOR (Load current, AC) AC/DC AUTO-ZERO CURRENT SENSOR (Load current, AC/DC)
CLAMP ON LEAK SENSOR (Leak Current)
Cannot be used to measure power
CLAMP ON ADAPTER
IMPORTANT
Voltage Cord L1000
8 cords, approx. 3 m each:
1 each red, yellow, blue,
and gray plus 4 black;
8 alligator clips: 1 each
red, yellow, blue, and
gray plus 4 black
BATTERY PACK Z1003
(Ni-MH, 7.2 V/4500 mAh)
AC ADAPTER Z1002
Power supply for the
PW3198
100V AC to 240V AC
WIRING ADAPTER
PW9000
For 3P3W WIRING
WIRING ADAPTER
PW9001
For 3P4W WIRING
Reduce voltage cords for easy wiring
GPS BOX PW9005
To synchronize the
PW3198 clock,
Accessory:
Connection cable set
CONNECTION CORD 9219
For connecting 9695-02,9695-03
Cord length : 3m(9.84ft)
9695-02 (50A AC)
9695-03 (100A AC)
φ15mm(0.59"), CONNECTION CORD
9219 is required (sold separately)
CT9667-01
500A AC/ 5000A AC
φ100mm (3.94"),
Power supply: LR06 alkaline battery
or AC ADAPTER 9445-02/03 (sold separately)
CT9667-02
500A AC/ 5000A AC
φ180mm (7.09"),
Power supply: LR06 alkaline battery
or AC ADAPTER 9445-02/03 (sold separately)
CT9667-03
500A AC/ 5000A AC
φ254mm (10"),
Power supply: LR06 alkaline battery
or AC ADAPTER 9445-02/03 (sold separately)
GRABBER CLIP
9243
For use with the standard
Voltage Cord L1000
MAGNETIC ADAPTER
9804-01
(red)
MAGNETIC ADAPTER
9804-02
(black)
Magnetic tip for use with the standard
Voltage Cord L1000
(generally compatible with M6 pan screws)
Red and black adapters sold separately.
Purchase the quantity and color
appropriate for your application.
(Example: 3P3W - 3 adapters; 3P4W - 4 adapters)
Application software
PQA-HiVIEW PRO 9624-50
Use Model 9624-50 PQA-HiVIEW PRO
(version 2.00 or later) with a PC to ana-
lyze the data collected by the PW3198.
Use Model PQA-HiVIEW PRO 9624-50 (version 2.00 or later)
with a PC to analyze the data collected by the PW3198.
Clock synchronization
PW3198-90 + 9661 × 3 + 9675 + PW9001 + C1001
POWER QUALITY ANALYZER
PW3198 set with
PQA HiVIEW PRO 9624-50
CLAMP ON SENSOR (500A) CLAMP ON LEAK SENSOR WIRING ADAPTER CARRYING CASE
Bundled accessories
CARRYING CASE
C1002
Hard case
413W× 595W× 265Dmm
(16.3”W× 23.4”H× 10.4”D)
5.7kg (201oz.)
CARRYING CASE
C1001
Soft case
450W× 345W× 210Dmm
(17.7”W× 13.6”H× 8.3”D)
3.4kg (12 0oz.)
Strage media
φ
11mm (0.43”)
* IMPORTANT
Use only HIOKI-approved
SD memory cards
SD MEMORY CARD 2GB
Z4001 *
SD MEMORY CARD
8GB
Z4003 *
*The AC/DC Auto-zero Current Sensor CT7731/CT7736/CT7742 cannot be
used on its own with the PW3198. Be sure to use a set that includes the Display
Unit CM7290, Output Cord L9095, and AC Adapter 9445-02 or 9445-03.
DISPLAY UNIT
CM7290
For use with the
CT7700 series
OUTPUT CORD
L9095
For use with BNC
connectors, 1.5m
(4.92ft)length
AC ADAPTER
9445-02
For USA,
100 to 240V AC,
9V/1A
AC ADAPTER
9445-03
For EU,
100 to 240 V AC,
9 V/ 1 A
Model Name: POWER QUALITY ANALYZER PW3198
Model No.
(Order Code) (Specications)
PW3198-90
Set of PW3198 and
PQA HiVIEW PRO 9624-50
PW3198 Main Unit only
Bundled accessories
SD MEMORY CARD 2GB Z4001
Voltage cord L1000
AC adapter Z1002
Battery pack Z1003
Instruction manual
Measurement guide
Strap
USB cable (Approx. 1m in length)
