3

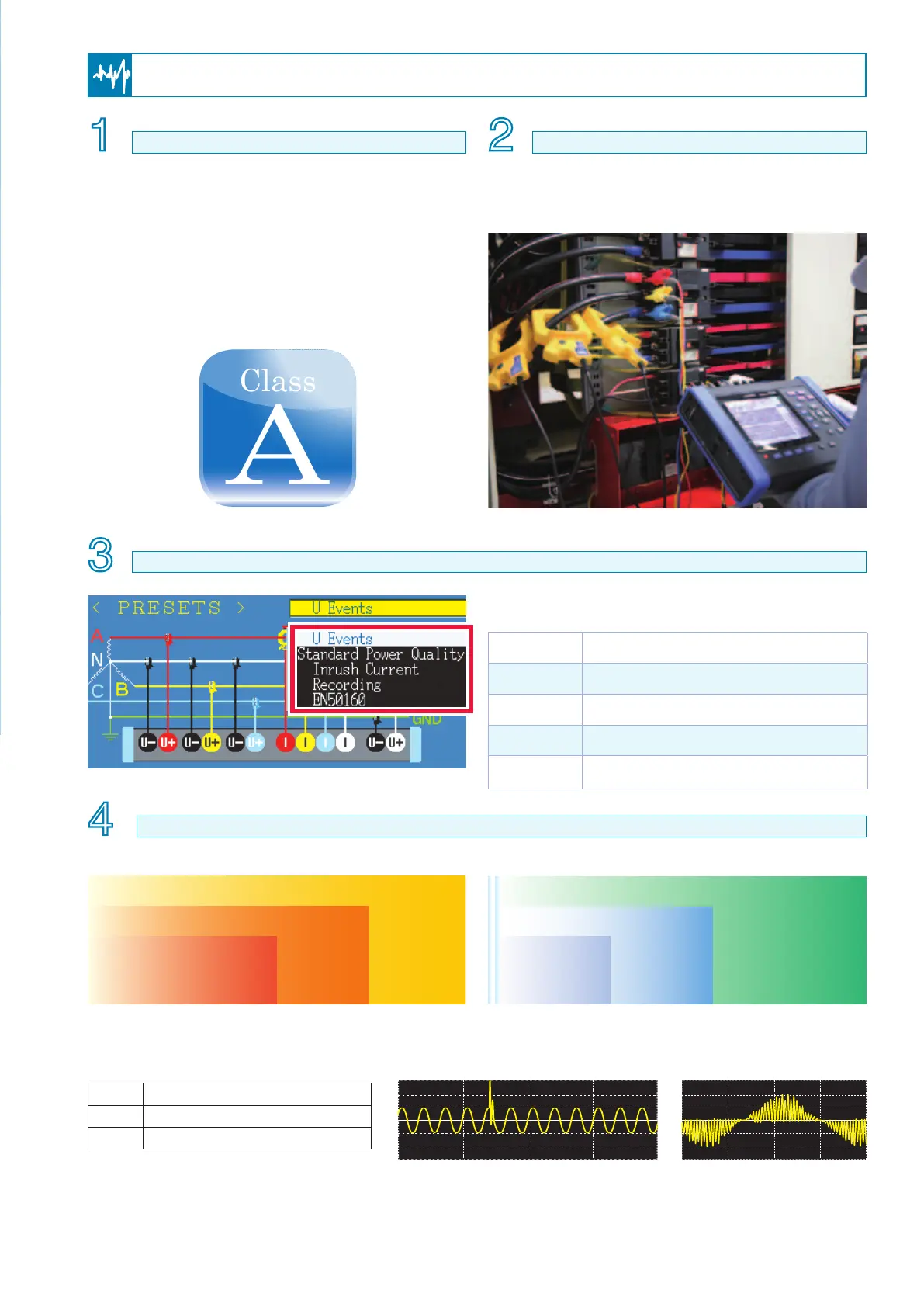

Class A is dened in the international standard IEC61000-4-30,
which specifies compatibility with power quality parameters,
accuracy, and standards to enable comparison and discussion
of the measurement results of different measuring instruments.
The PW3198 is compliant with IEC61000-4-30 Edition 2 Class
A standard. The instrument can perform measurements in
accordance with the standard, including continuous gapless
calculation, methods to detect events such as dip, swell, and
instantaneous power failure, and time synchronization using the
optional GPS box.
Class
A
CAT IV-600V Safety
International Standard IEC61000-4-30 Edition 2 Class A
Advanced Features for Safe, Simple, and Accurate Measurements
Easy to set up - Just select the measurement course and the PW3198 will do the rest
(1P2W, 1P3W, 3P3W)
(1P2W, 1P3W, 3P4W)
Line-to-line voltage
Phase voltage
Line-to-line voltage (3P4W)
Transient overvoltage
780V 1300V 6000Vpeak
Voltage Measurement Range
Both low and high voltages can be measured in a single range.
DC
Harmonic measurement
High-order harmonic measurement
Transient overvoltage detection
80kHz3kHz 700kHz
Voltage Frequency Range
Wide range from DC voltage to 700 kHz
Transient overvoltage can also be measured
in a range between the maximum 6,000 V
and minimum 0.5 µs (2 MS/s).
Waveform example
Transient Overvoltage
The PW3198 is the first power
quality analyzer that can
measure the high-order harmonic
component of up to 80 kHz.
Waveform example
High-order Harmonic
World’s highest level of basic measurement
accuracy. Extremely accurate voltage
measurement without the need to switch ranges.
Basic Measurement Accuracy (50/60 Hz)
Voltage ±0.1% of nominal voltage
Current
±0.2% rdg. ±0.1% f.s. + Clamp-on sensor accuracy
Power
±0.2% rdg. ±0.1% f.s. + Clamp-on sensor accuracy
The PW3198 is compliant with the measurement category
CAT IV - 600V and can also safely test the incoming lines for
both single-phase and three-phase power supplies.
Simply choose the course based on the measurement objective
and the necessary congurations will be set automatically.
U Events
Record voltage and frequency and detect
errors simultaneously.
Standard
Power Quality
Record voltage, current, frequency, and
harmonic, and detect errors simultaneously.
Inrush current Measure the inrush current.
Recording
Record only the TIME PLOT Data but do not
detect errors.
EN50160
Perform measurements in accordance with
EN50160.
Highly Accurate, Broadband, Wide Dynamic Range Makes for Reliable Measurements
1 2
3
4
