Installation MACH 1000
Release
04
12/2015
27

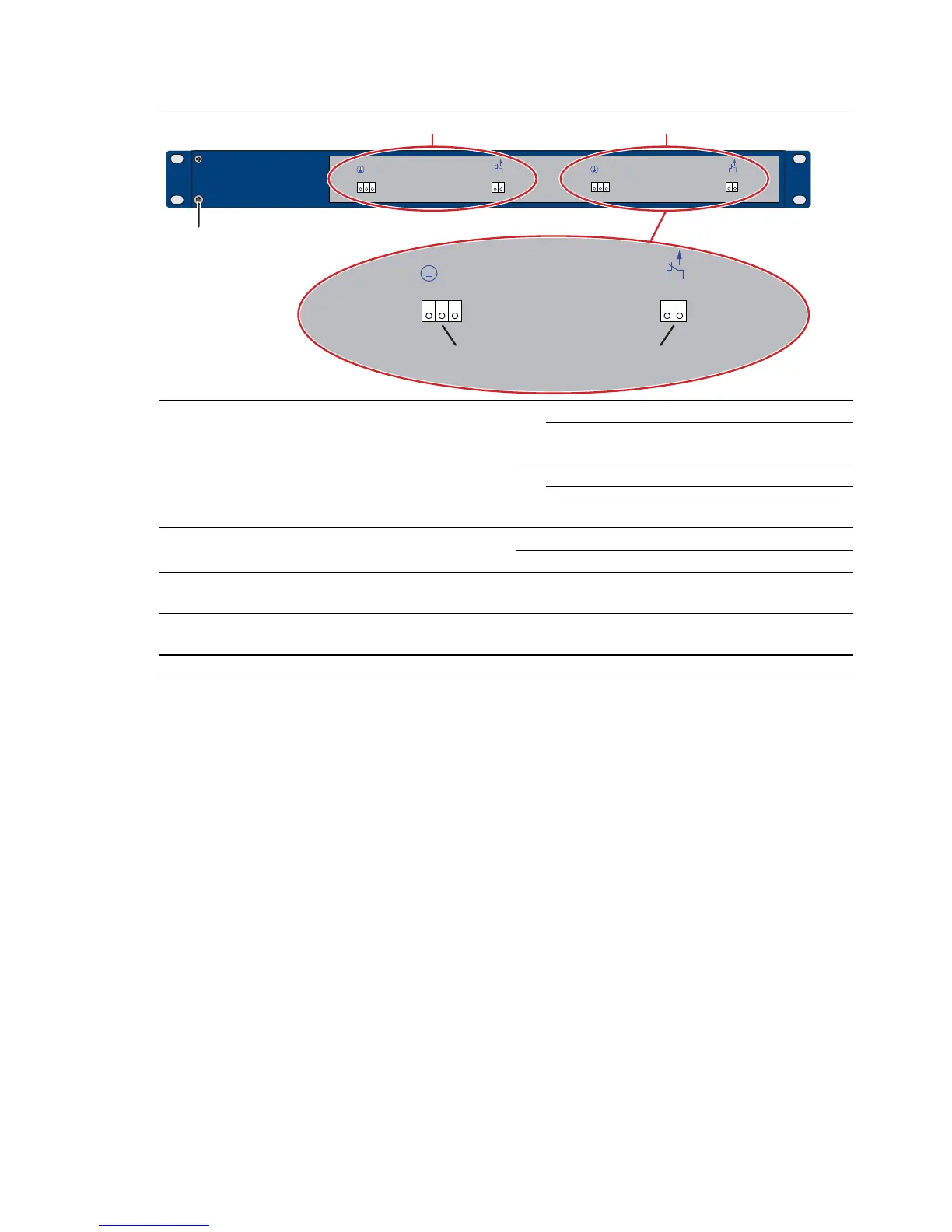

The following tables provide an overview of the possible connections for
voltage-carrying lines:
1 Power supply unit 2
a
a. In devices without PoE, power supply unit 2 is optional. It is used for redundant voltage
supply. In devices with PoE, power supply unit 2 is mandatory. It is only used to supply PoE
voltage to the connected devices.
Possible types: C DC voltage connectable
Voltage range:
See “General technical data” on page 55.
G
b
b. For devices with PoE that have terminal connections, power supply unit 2 must be type “G”.
DC or AC voltage connectable
Voltage range:
See “General technical data” on page 55.
2 Power supply unit 1 Possible types: C See 1
GSee 1
3 Connection for the
signal contact
Spring-loaded terminal
2-pin
4 Supply voltage
connection
Spring-loaded terminal
3-pin
5 Grounding screw
Table 4: Connections for voltage-carrying lines:
rear view of the device variants with terminal connections
