Hirschmann MACH102 Series User Manual

16
Installation MACH102
Release 06 09/2014
 Autonegotiation
 Autocrossing (device may be connected with a crossed-over or an un-
crossed cable)
 Specific functions of fiber optic interface
 Link Down monitoring
 Media module M1-8TP-RJ45
The M1-8TP-RJ45 media module has 8 × 10/100 Mbit ports for
connecting terminal devices or network segments according to the stan-
dards IEEE 802.3 100BASE-TX / IEEE 802.3 10 BASE-T.
These ports support autonegotiation and autopolarity. The ports are RJ45
sockets. The housings of the RJ45 sockets are electrically connected to
the front plate of the device. The pin assignment is identical to MDI-X.
When the autonegotiation function is enabled, these ports also support
autocrossing.

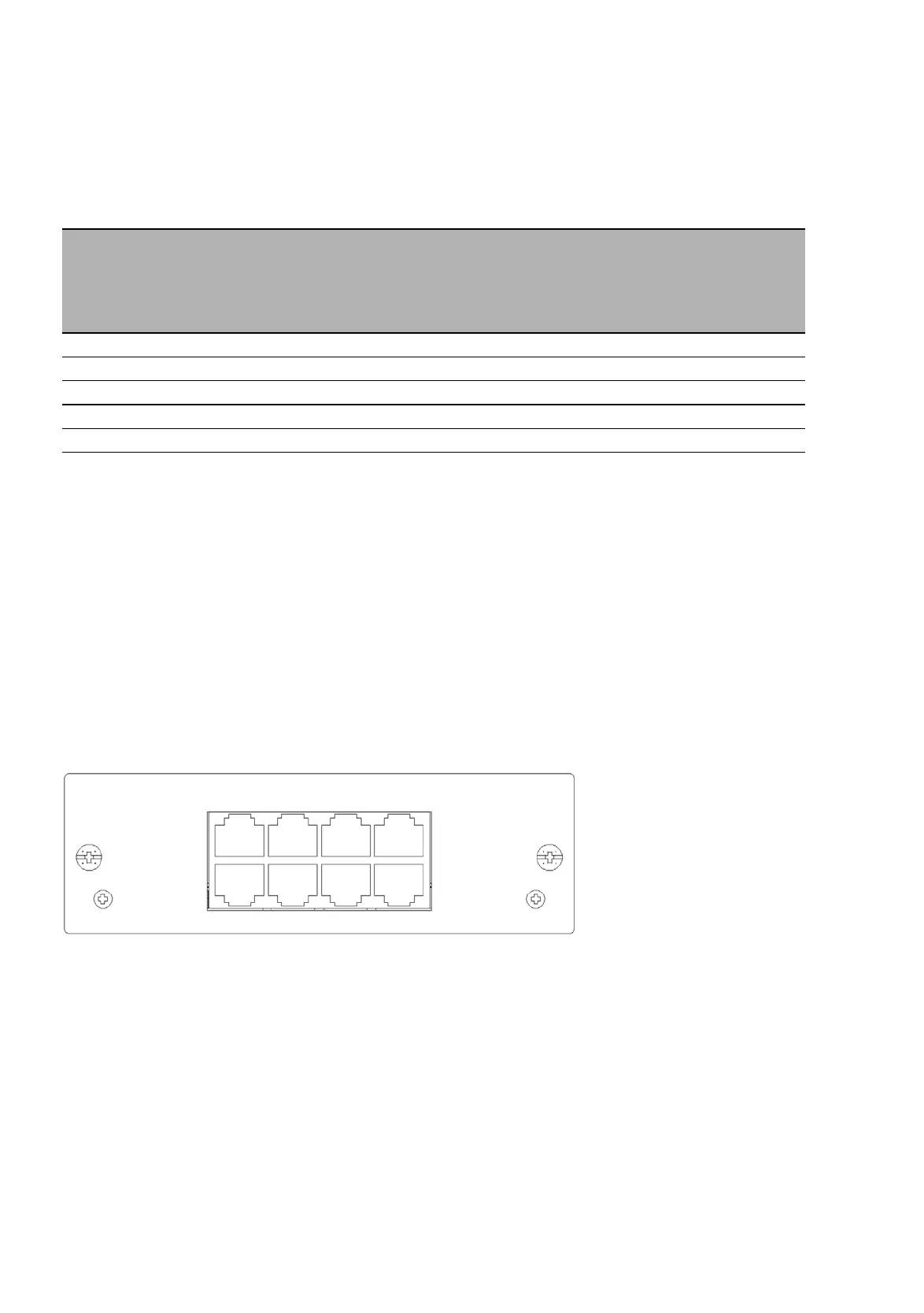

Figure 5: Media module M1-8TP-RJ45
 Media module M1-8TP-RJ45 PoE
The M1-8TP-RJ45 PoE media module supports Power over ETHERNET
(PoE). It has 8 10/100 Mbit/s TP PoE ports.
This port is an RJ45 socket.
MACH102 media modules
Module Type
TP ports
10/100
Mbit/s
TP ports
10/100
Mbit/s PoE
F/O ports
Multimode
100 Mbit/s
F/O ports
Single-
mode
100 Mbit/s
SFP ports
Multimode
Singlemode
Longhaul
100 Mbit/s
M1-8TP-RJ45 8, RJ45 – – – –
M1-8TP-RJ45 PoE – 8, RJ45 – – –
M1-8MM-SC – – 8, DSC – –
M1-8SM-SC – – – 8, DSC –
M1-8SFP – – – – 8, SFP
Table 1: Media connections per MACH102 media module (number and type)
