Hirschmann MACH102 Series User Manual

Installation MACH102
Release 06 09/2014
23
 Connecting the terminal block
 Pull the terminal block off the device and connect the signal lines.

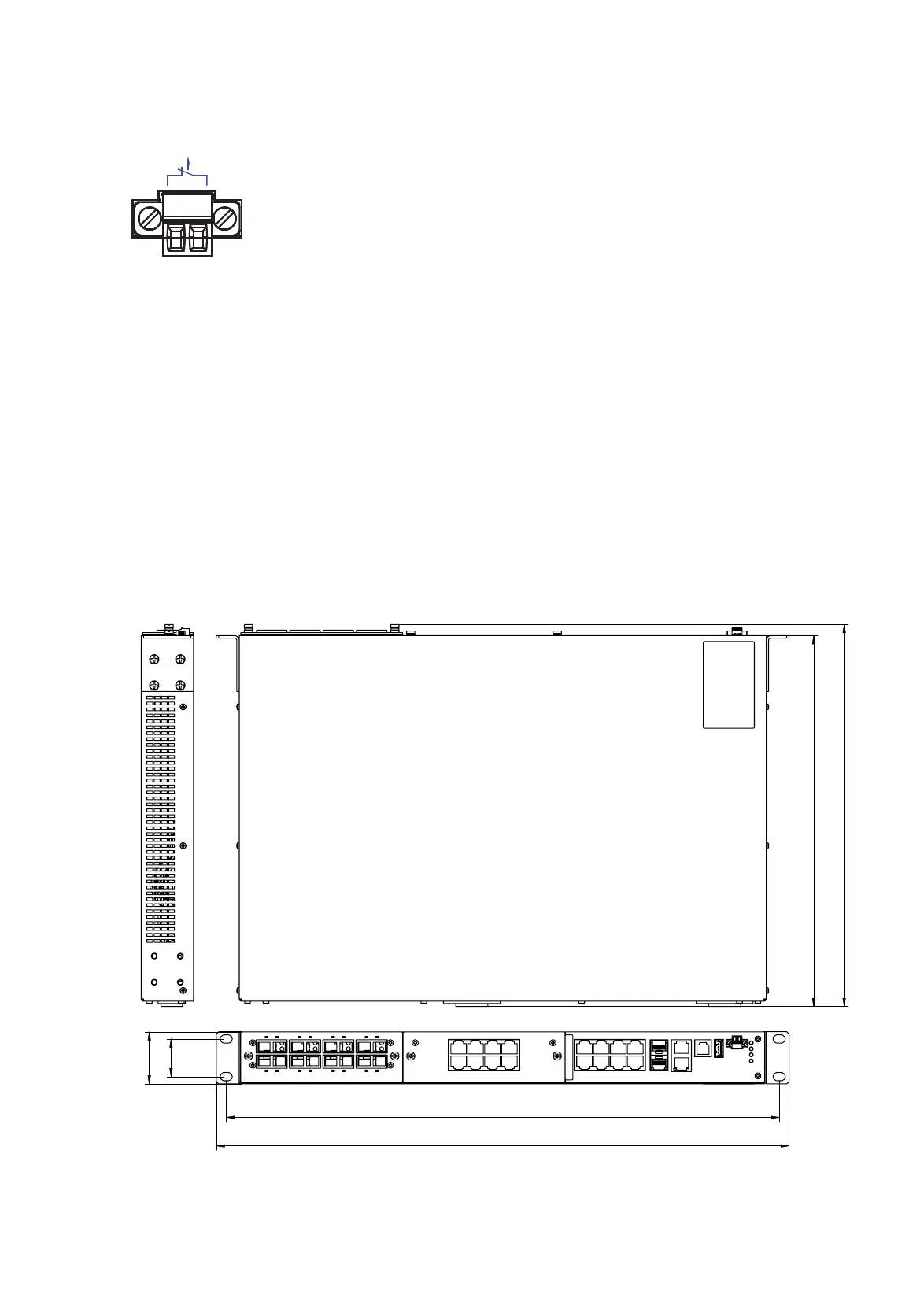

Figure 14: 2-pin terminal block
Note: Please note the electrical ratings for the signal contact (see on
page 39 “General technical data”).
Note: Relevant for North America:
The tightening torque of the terminal block screws is 3 lb in. (0.34 Nm).
 Mount the terminal block for the signal contact on the front of the
device using the screw locking. Check whether the terminal block is
mounted correctly and screwed on.
2.1.5 Dimension drawings
FAULT
482,6
231,89
312,5
31,75
43,8
465,9
