Hirschmann MACH102 Series User Manual

38
Installation MACH102
Release 06 09/2014
 Removing media modules
 To remove the media module, first remove the two screws at the
corners of the media module.
 Pull the media module out of the slot.
 Fasten the protective cover to the slot using the two screws.
 Removing the SFP transceivers
 Pull the module out of the socket by means of the opened lock.
 Close the socket with the protective cap.

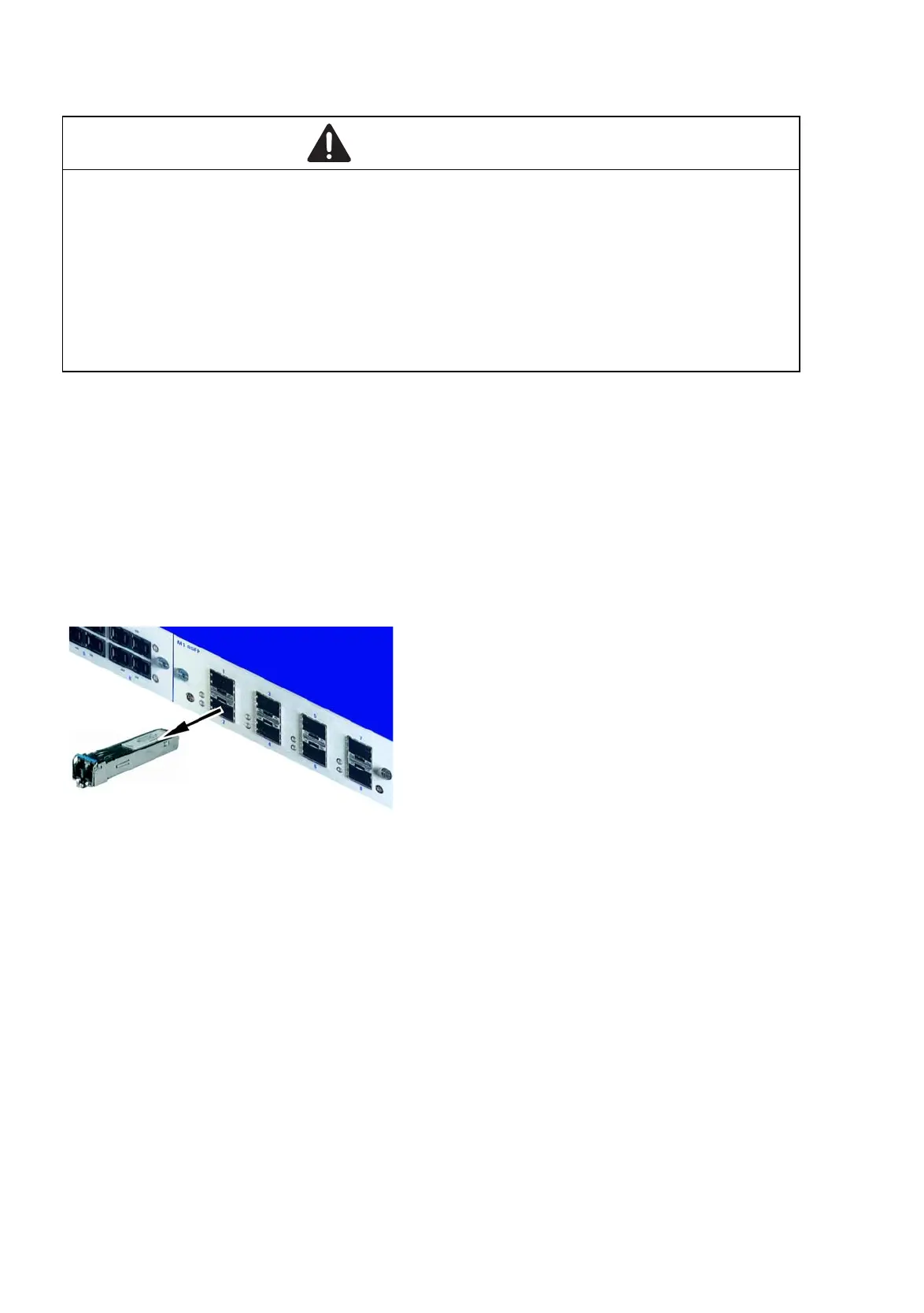

Figure 25: Deinstalling an SFP transceiver
WARNING
FIRE HAZARD
Disconnect the PoE voltage supply before removing the M1-8TP-RJ45 PoE
media module.
Non-adherence to these instructions can lead to death, serious
physical injury or material damage.
