16
Installation OCTOPUS OS20/OS24 Unmanaged
Release 07 07/2014
1 LED display elements
(see on page 21)
Device Status
P Power supply
2 100 Mbit/s ports
(see on page 19)
3 Connecting the supply voltage
(see on page 22)
4 Grounding screw M4
5 Product code
(see table 3)
6 LED display elements
(see on page 21)
port state

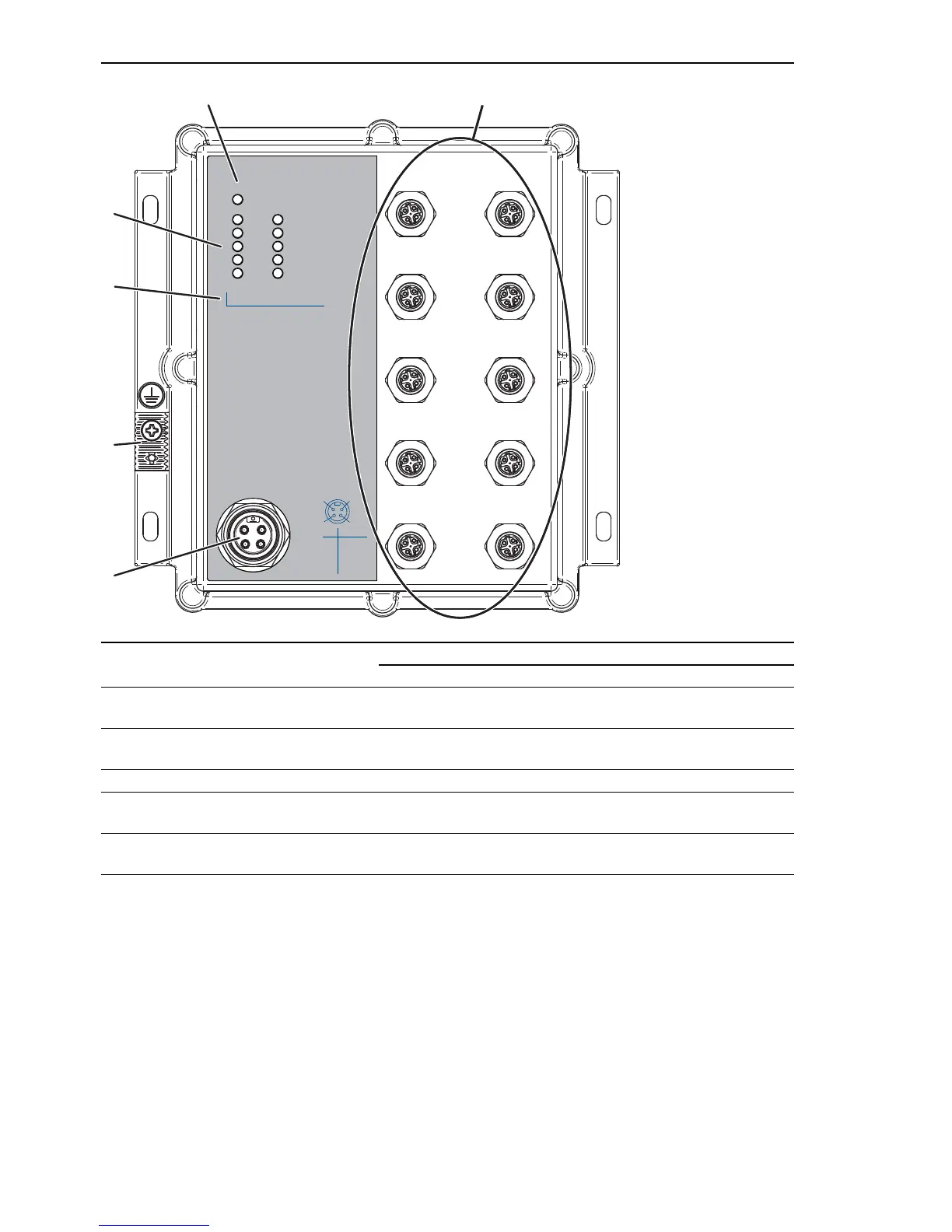

Table 5: Overview: Display elements and interfaces of device
OS20–001000T5T5TNEUHB
Power
N.C.
P-
1
2
3
4
N.C.
Pin
Function
P+
Power
1
2
4
3
P
4
5
1
3
2
9
10
8
7
6
x y
OCTOPUS
OS20
Unmanaged
ETHERNET Switch
OS20-001000T5T5TNEUHB
3
4
5
6
1
2
