Installation OCTOPUS OS20/OS24 Unmanaged
Release
07
07/2014
19
1.4 Power supply
1.4.1 Operating voltage type A
A 5-pin M12 connector is available to supply the device without PoE
redundantly.
You will find more information on page 23.
1.4.2 Operating voltage type F
A 5-pin 7/8" connector is available to supply the device with PoE redundantly.
You will find more information on page 24.
1.4.3 Operating voltage type N
A 4-pin 7/8" connector is available to supply the device.
You will find more information on page 25.
1.5 Interfaces
1.5.1 10/100 Mbit/s twisted pair connection
(4-pin M12 connector)
10/100 Mbit/s ports enable the connection of terminal devices or independent
network segments according to the IEEE 802.3 100BASE-TX / 10BASE-T
standard.
These ports support:
Autonegotiation
Autopolarity
Autocrossing
Delivery state: autonegotiation activated
The socket housing is electrically connected to the housing.
Note: Some of these ports also support Power over Ethernet (PoE). For
more information see page 20 “10/100 Mbit/s twisted pair connection for PoE
(4-pin M12 sockets)”.

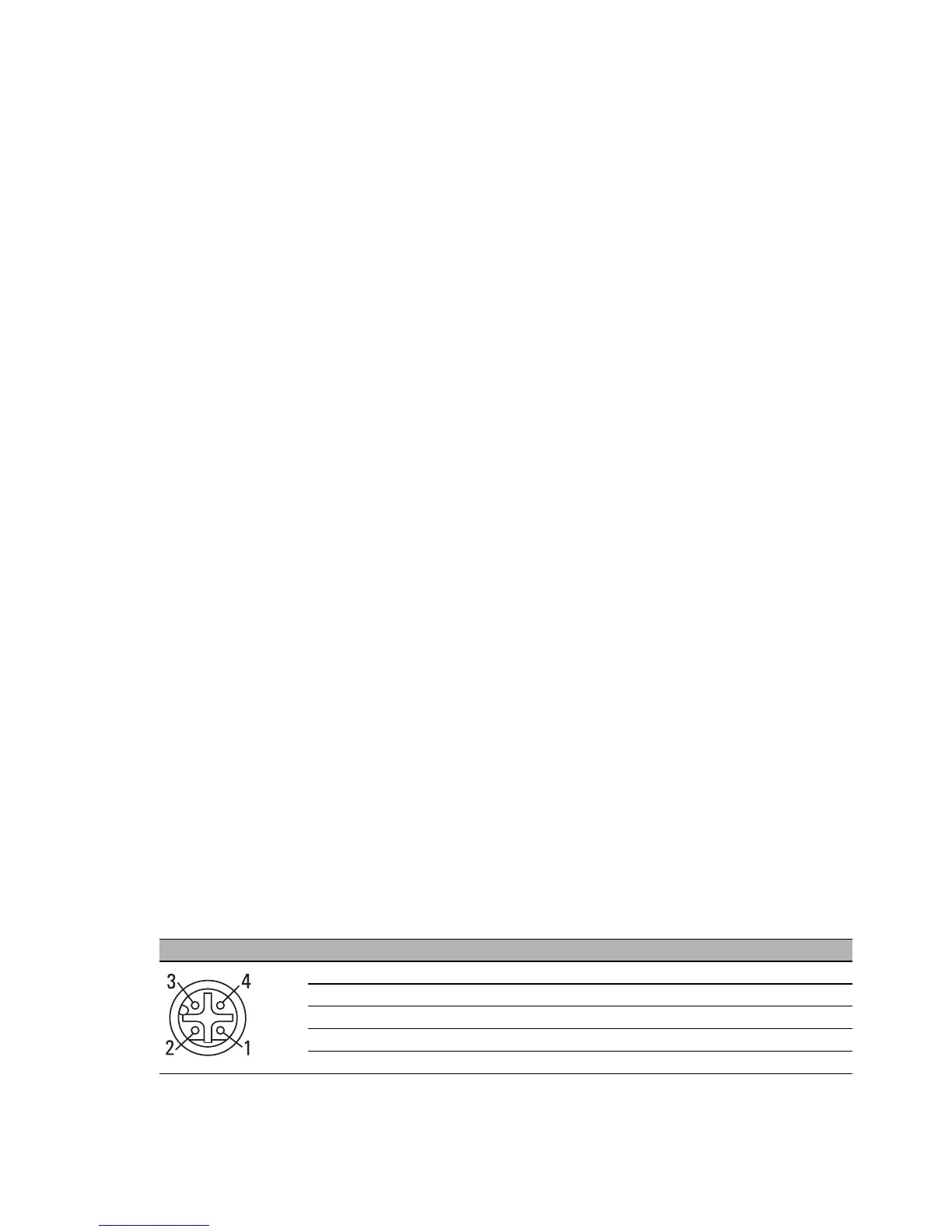

Figure Pin Function
1 TD+ Transmit Data +
2 RD+ Receive Data +
3TD− Transmit Data −
4RD− Receive Data −
Housing: shield
Table 8: Pin assignment of a TP/TX interface (M12 socket)
