Installation OCTOPUS OS20/OS24 Unmanaged
Release 07 07/2014
2.4 Connecting the ferrite
(only devices with operating voltage type F)
To adhere to EMC conformity, you connect the ferrite supplied to the voltage
input via the voltage supply line.
See “Connecting the ferrite to the voltage supply line” on page 28.
 Insert the voltage supply line through the ferrite 3 times.
 Position the ferrite as close as possible to the voltage output (max.
distance 50 cm).
 Lock the ferrite.
Note: To open the ferrite use the key supplied.

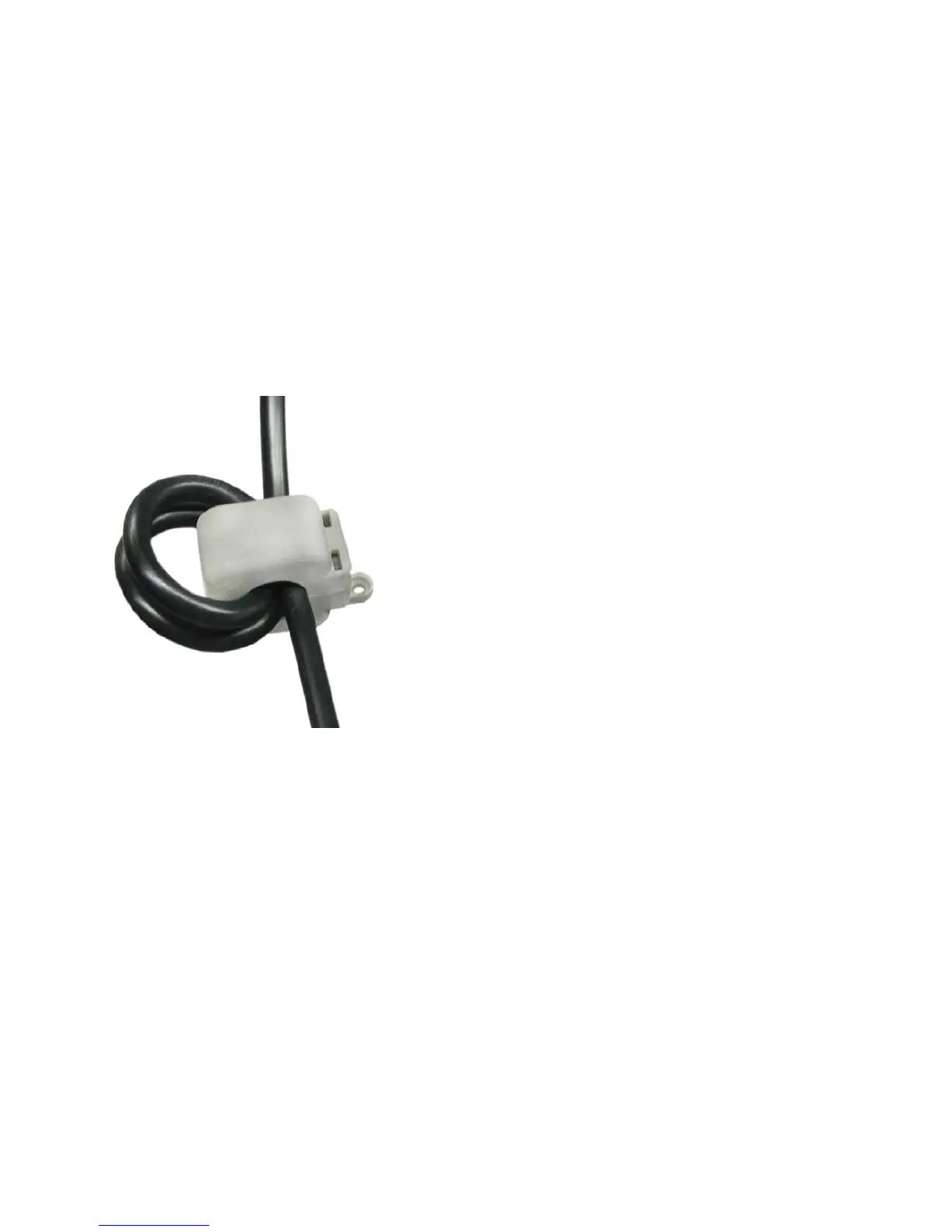

Figure 2: Connecting the ferrite to the voltage supply line
