Hirschmann OCTOPUS OS3 - Device Views

14
Installation OCTOPUS OS3
Release 01 02/2019
1.3 Device views

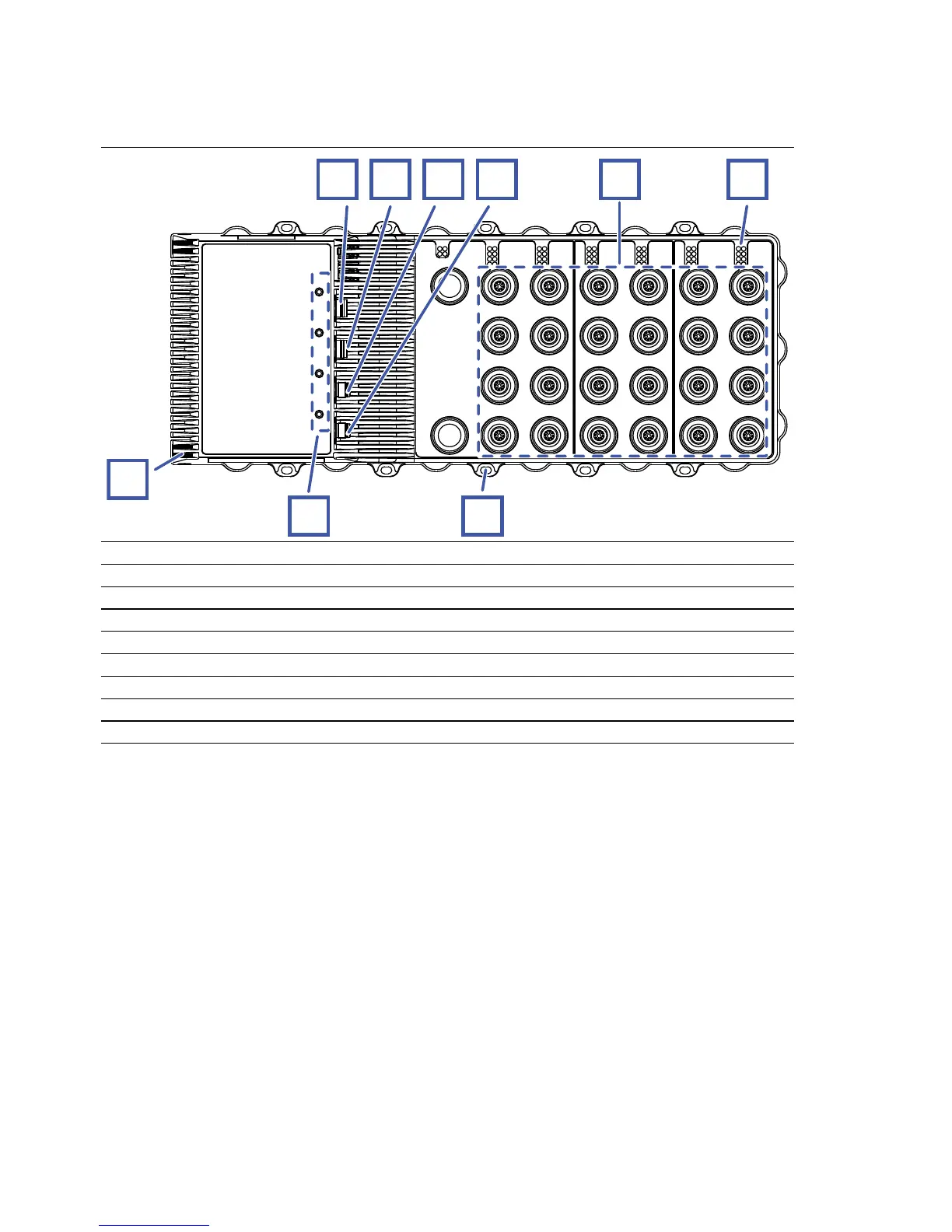

1.3.1 Front view
1 V.24 interface 4-pin, “A”-coded M12 socket
2 USB interface 5-pin, “A”-coded M12 socket
3 Signal contact 5-pin, “A”-coded M12 plug
4 Supply voltage connection 5-pin, “K”-coded M12 plug
5 24 × 10/100/1000 Mbit/s twisted pair port 8-pin, “X”-coded M12 socket
6 LED display elements for port status
7 Slot hole for mounting on a flat surface
8 LED display elements for device status
9 Ground connection
Table 2: Front view (using the example OCTOPUS3-40-...)
1 2 3 4 5 6
9
8 7
