Hirschmann RS40 series User Manual

Installation RS20/22/30/32/40
Release 05 12/2015
67
 Dimension drawings

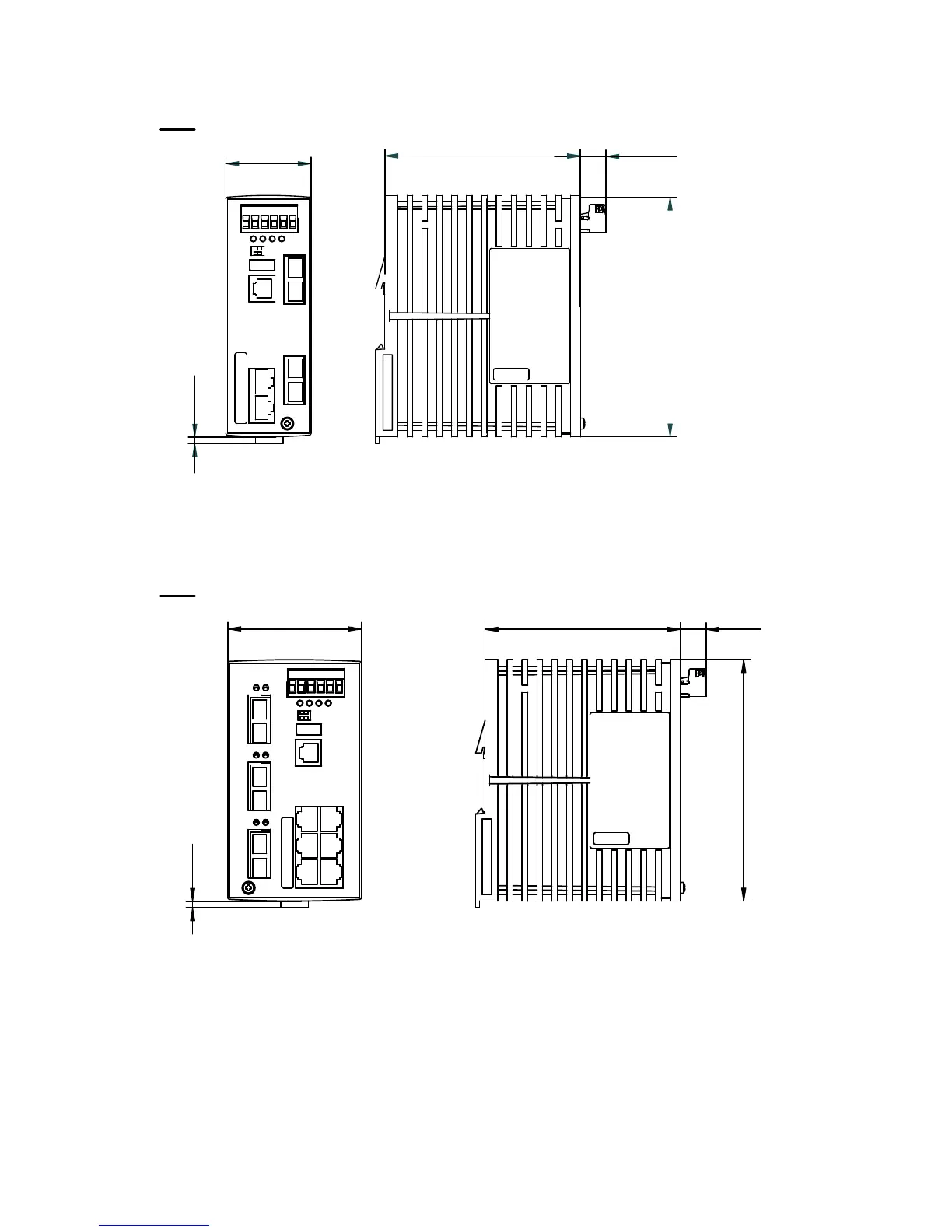

Figure 21: Dimensions of device variants RS20-04...
with operating temperature characteristic value S, T and E
Figure 22: Dimensions of device variants
- RS20-08... and RS20-09... with operating temperature
characteristic value S, T and E
- RS30-08... with operating temperature characteristic value S, T and E
- RS40-09... with operating temperature characteristic value S
46
130
3,5
14
mm
inch
5.12
0.14
4.17
0.55
1.81
106
130
5.12
106
14
3,5
72
mm
inch
0.14
0.55
4.172.84
