Installing your Freestanding Cooker
13
H05VV-F3G6
Fuse 32 A
H05VV-F4G2,5
Fuse 20 A x2
H05VV-F5G1,5
Fuse 16 A x3

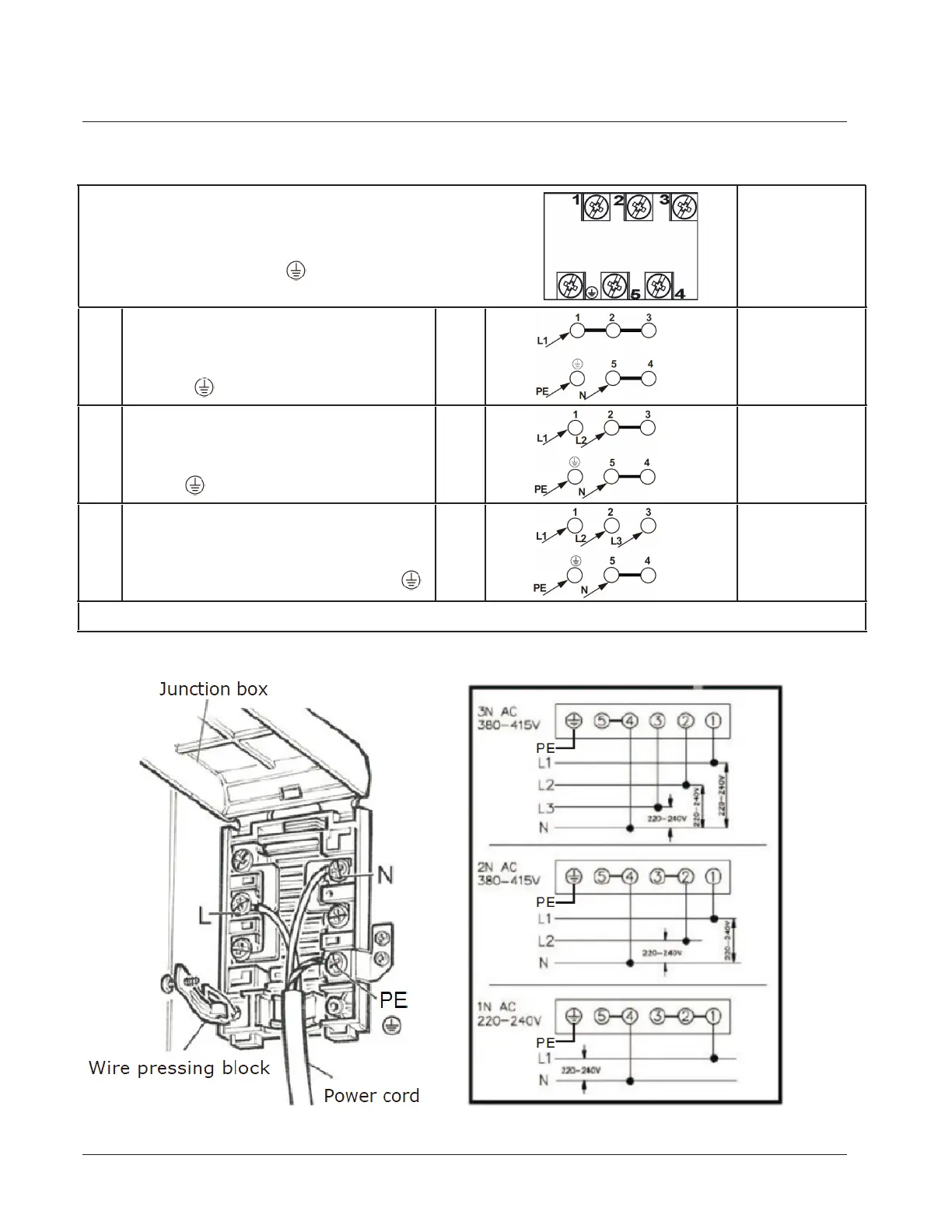

CONNECTION DIAGRAM
Caution! Voltage of heating elements 230V
Caution! In the event of any connection the safety
wire must be connected to the PE terminal
Recommen-
ded
type
of connection
lead
For 230 V earthed one - phase
connection, bridges connect 1-2-3
terminals and 4 - 5 terminals, safety
wire to .
For 400/230 V earthed two - phase
connection, bridges connect 2 - 3 ter
minals and 4 - 5 terminals, the safety
wire to .
For 400/230V earthed three -phase
connection, bridges connect 4 - 5 ter
minals, phases in succession 1,2 and
3, earth to 4 - 5, the safety wire to .
L1=R,L2=S,L3=T,N=earth terminal, PE= safety wire terminal
