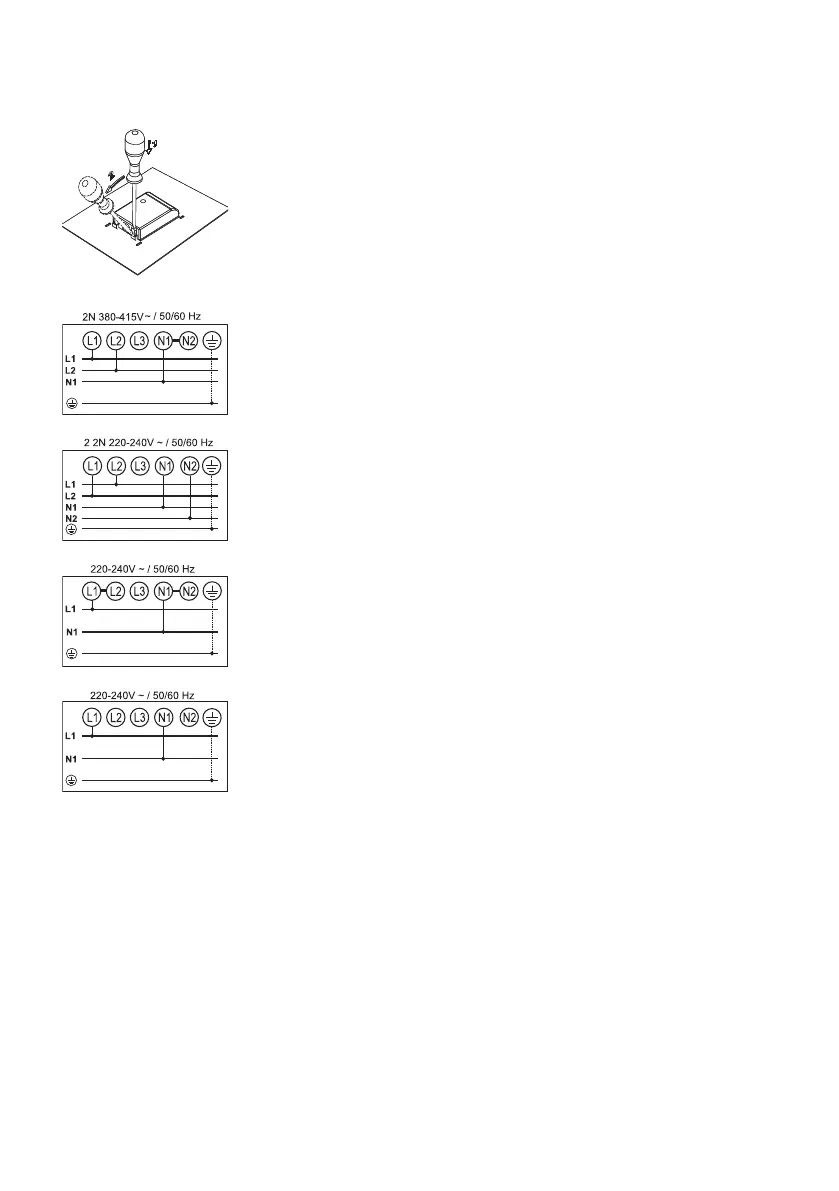

CONNECTION DIAGRAM:
Jumpers (connecting bridges) are placed in the dedicated slot on
the clamp.
POWER CORD
The following may be used for connection:
• PVC insulated connection cables type H05 VV-F or H05V2V2-F
with yellow-and-green protective conductor, or other equivalent
or superior cables.
Normal connection
• 2 phases, 1 neutral conductor (21N, 380-415V~/ 50/60Hz):
Voltage between phases and neutral conductor is 220-240V~.
Voltage between the two phases is 380-415 V~. Install a jumper
between the terminals 4–5. The group should include at least
two 16-ampere fuses. Diameter of the power cord core should
be at least 2.5mm
2
.
• 2 phases, 2 neutral conductors (22N, 220-240V~/ 50/60 Hz):
Voltage between phases and neutral conductors is 220-
240V~.
The group (installation) should include at least two 16-ampere
fuses. Diameter of the power cord core should be at least
2.5mm
2
.
Special connection:
• Single-phase connection (11N, 220-240V~/ 50/60Hz):
Voltage between phase and neutral conductor is 220-240V~.
Install jumpers between the terminals 1–2 and 4–5. The group
(installation) should be fitted with a fuse of at least 32A.
Power cord core diameter should be at least 6mm
2
.
Run the power cord through a cord strain relief (clamp) which
protects the cable from being pulled out.
False connection can destroy parts of the appliance. In such case,
there is no right to warranty.
Before connecting the appliance, make sure the voltage specified
on the rating plate conforms to the voltage of the power mains.
An expert should check the actual voltage in your home (220-
240V relative to N), using a suitable meter!
Appliances with a width of 30 centimetres (two cooking zones)
only allow single-phase connection. The diameter of the power
cord should be at least 1.5mm
2
!
44
