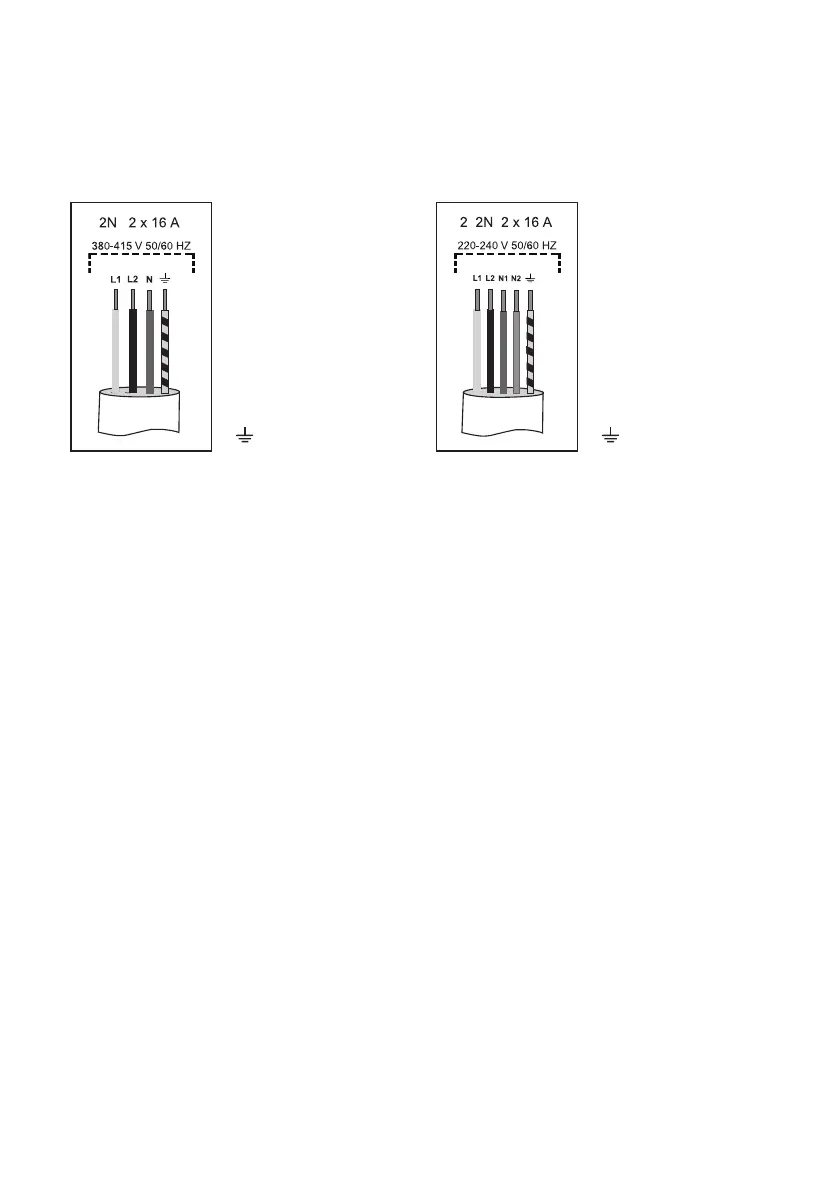

Two-phase connection
• If your electric mains have 2 phase conductors and 1 neutral conductor, connect the
appliance as shown in Diagram B.
• If your electric mains have 2 phase conductors and 2 neutral conductors, connect the
appliance as shown in Diagram C.
L1 = brown
L2 = black
N = blue
= yellow-green
L1 = brown
L2 = black
N1 = blue
N2 = gray
= yellow-green
B
C
