Hisense LCD40V57CA - Chassis Layout and Wiring Diagrams; Chassis Component Layout

- 14 -
LCD TV Service Manual
Hisense Confidential
4. Chassis Layout and Overall Wiring Diagrams

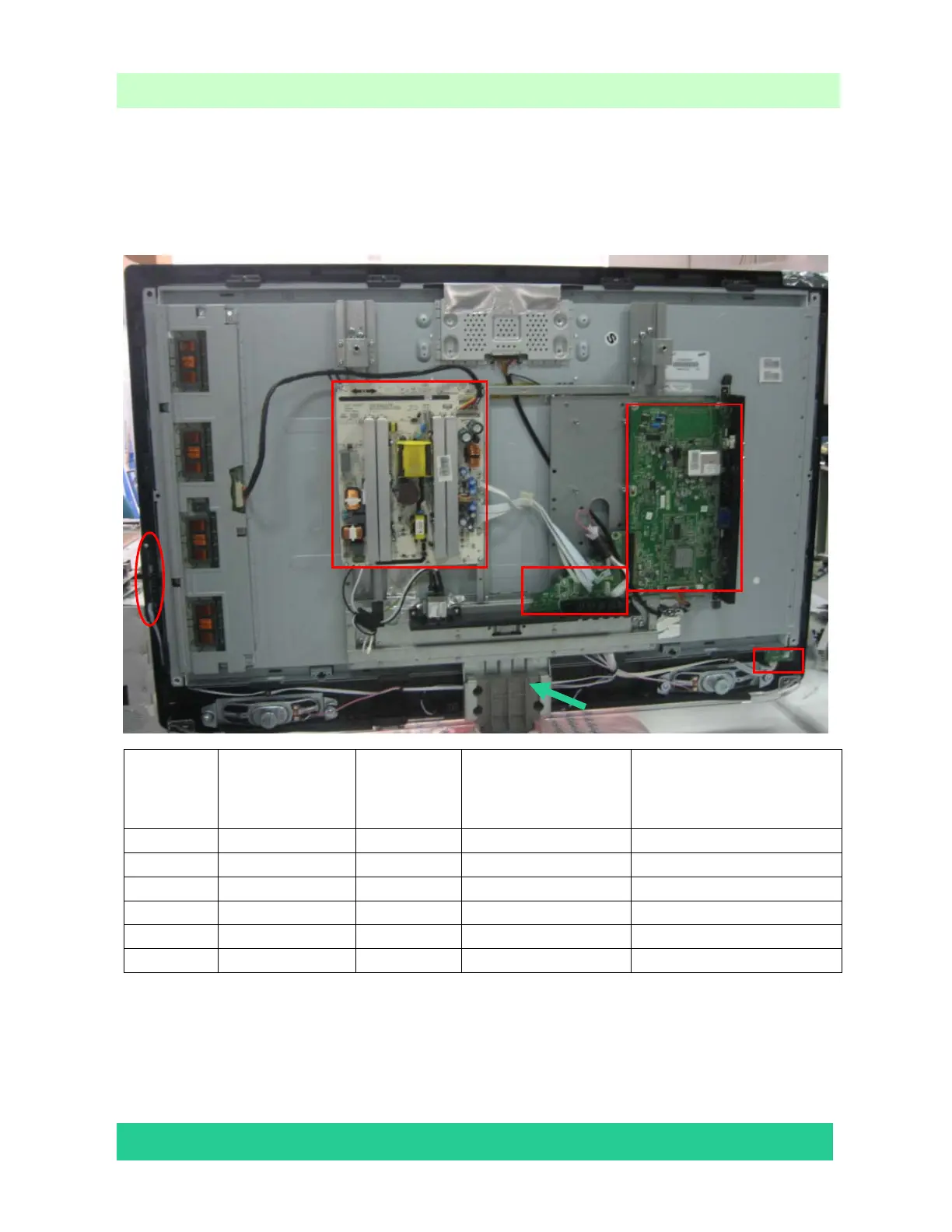

4.1 Chassis Layout
No Description Part No
Type/Model PCB/ Model
(1) Main BD
116622 RSAG2.908.1102-15/ROH
RSAG7.820.1138VER.D/ROH
(2) Power BD
113358 RSAG2.908.982-4/ROH
RSAG7.820.968VER.H/ROH
(3) Terminal BD
116706 RSAG2.908.1153-3
RSAG7.820.1126VerB/ROH
(4) Keypad PCA
113354 RSAG2.908.1088/ROH
RSAG7.820.1101VER.B/ROH
(5) IR Board
112613 RSAG2.908.1029/ROH
RSAG7.820.996VER.C/ROH
(6) luminophor
1046574 B-700-500
Not PCB
(1)
(2)
(4
(
5
)
(6)
(3)
