- 29 -
LCD TV Service Manual
Hisense Confidential

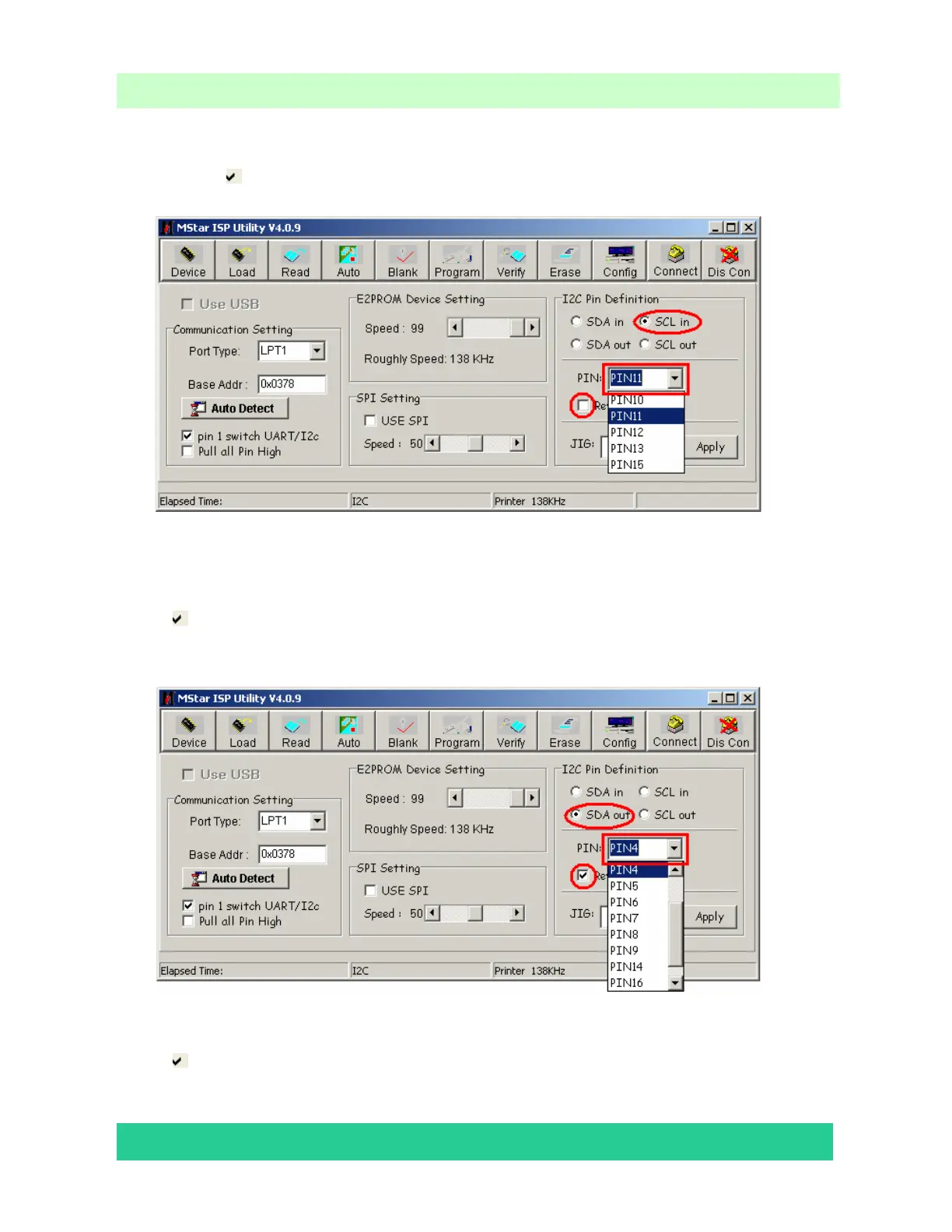

Choose “SCL in”and setting “PIN” is “PIN11”。
Notes:
Do not draw
on the front of “Reverse High”。
As following
Choose “SDA out”and setting “PIN” is “PIN4”
Notes:
Draw
on the front of “Reverse High”。
As following。
Choose “SCL out”and setting “PIN” is “PIN2”
Notes:
Draw
on the front of “Reverse High”
As following
