Hisense MT9603 - TV Boards Part List

-
15
-
67 12V_PANEL Power Supply Input
Voltage
2 VCC_PANEL
68 12V_PANEL Power Supply Input
Voltage
1 VCC_PANEL
XP9：Speaker jacket
Pin definition
illustration
Wire color
1 L+ Left speaker positive wire Red
2 L- Left speaker negative wire White
3 R- right speaker negative wire White
4 R+ Right speaker positive wire Black

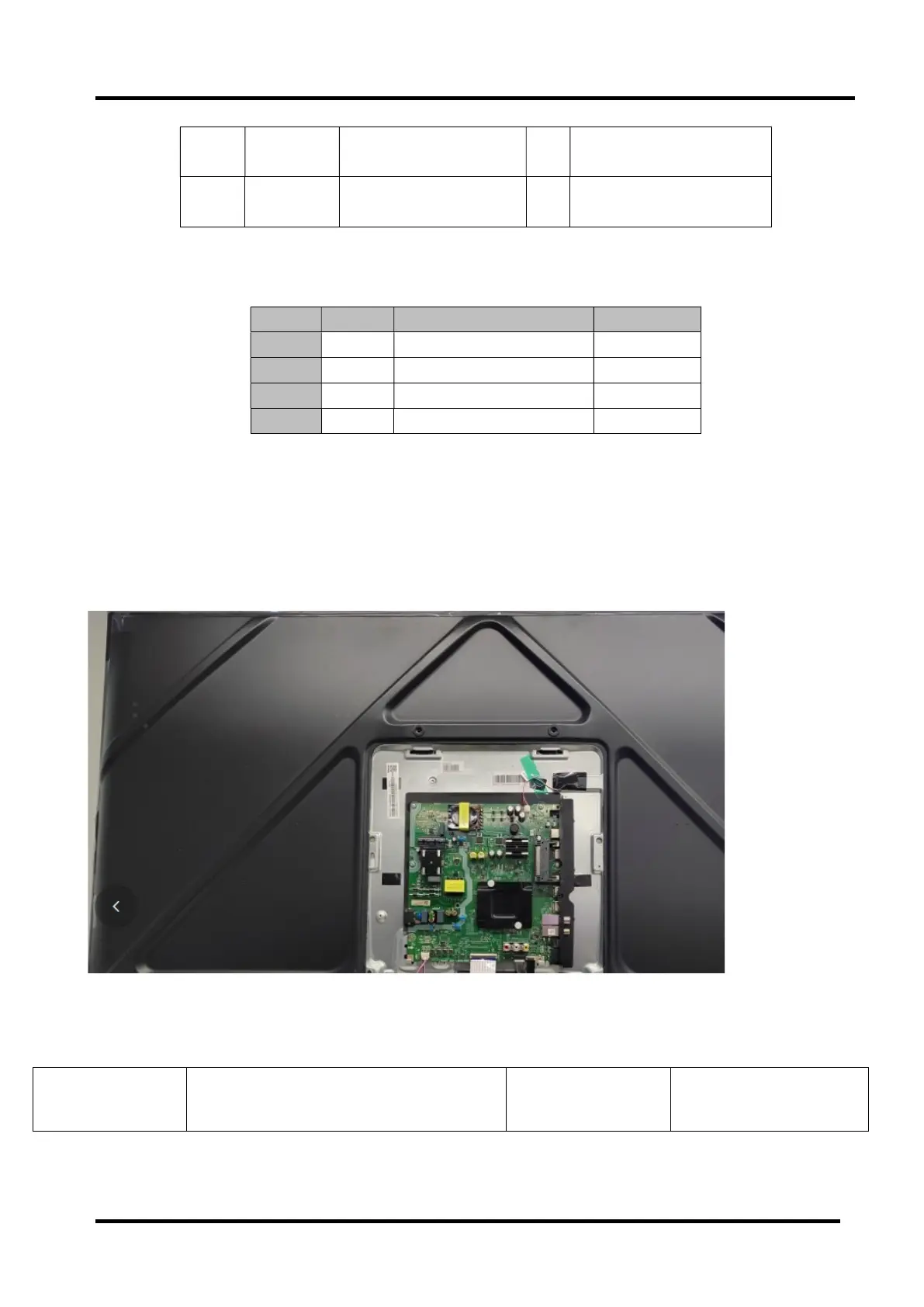

2.3 Ties,clamps and tapes:
to show the positions where ties and clamps and tapes should be, for checking after
servicing, Before disassemble the TV ,besure to take photes for the TV assembly example
for 55E70LEVS.
2.2 TV boards part list
Main board Boards function difference
Main chassis type
For Series
