Hitachi 32PD5000 - Page 75

75
37PD5000

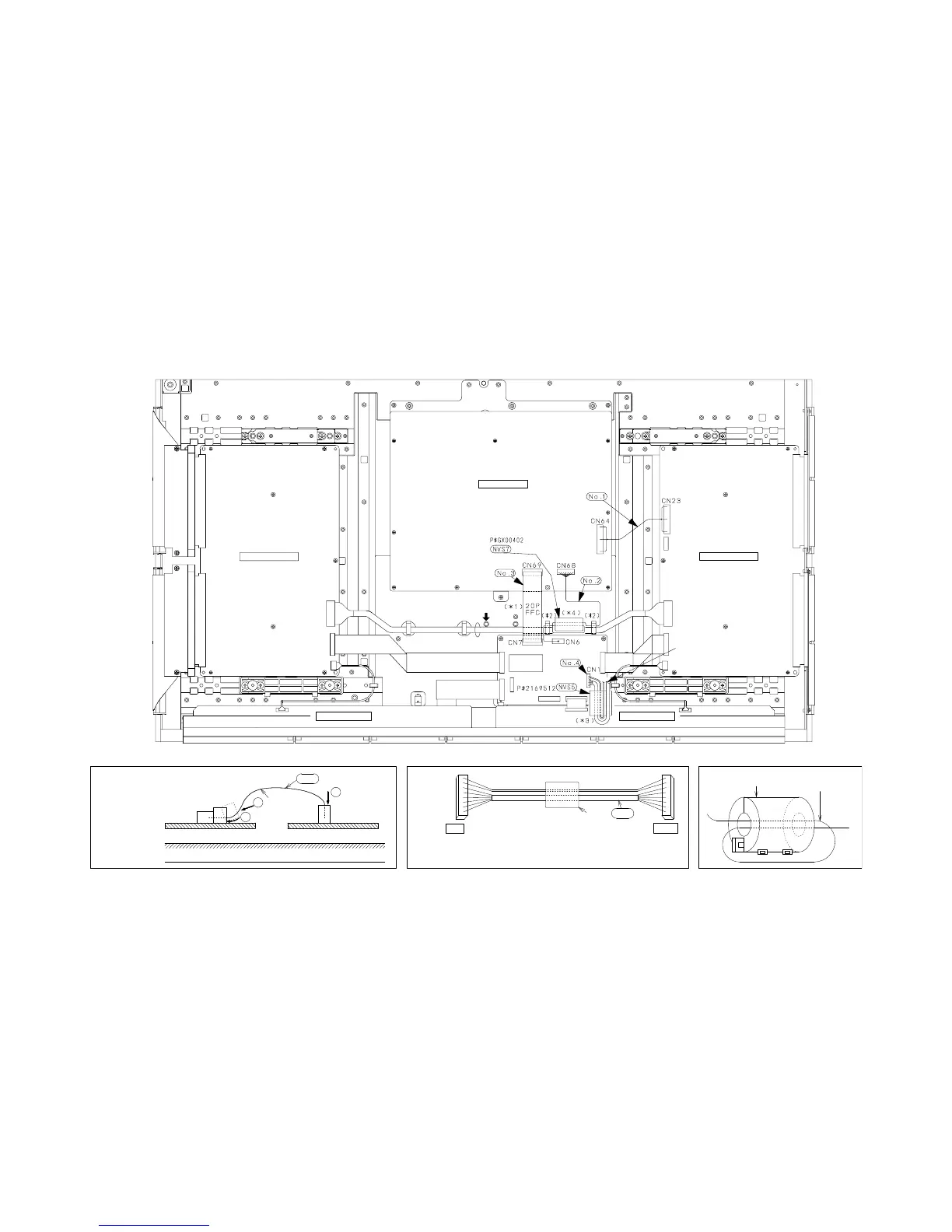

Wiring diagram
37PD5000 1/2
NVS5
P#2169512
Detail of (*1)
Printing part of No.3 connector should be set to module side of panel.
1) Release the lock of CN7, and insert No.3 connector in CN7.
2) Lock CN7 to fix the inserted No.3.
3) Insert the other side of No.3 in CN69 completely.
Detail of (*4)
PANEL LOGIC PWB
POWER UNIT
CN69
3
2
1
CN7
No.3
printed letters side
PANEL MODULE
20PFFC
CN1
To PANEL LOGIC PWB
No.4
Detail of (*3)
CONNECTOR WIRE
FERRITE CORE
EFM1
To FORMATTER PWB
POWER UNIT
PANEL Y-SUS
To next page
PANEL X-SUS
PANEL ABUS-R
(To FORMATTER PWB)
PANEL ABUS-L
PANEL
LOGIC
