86
32PD5000/42PD5000
Y-SUS PWB ASS’Y
Manufactured at FHP factory.
L-ADR PWB ASS’Y
Manufactured at FHP factory.
LOGIC PWB ASS’Y
Manufactured at FHP factory.
X-SUS PWB ASS’Y
Manufactured at FHP factory.
R-ADR PWB ASS’Y
Manufactured at FHP factory.

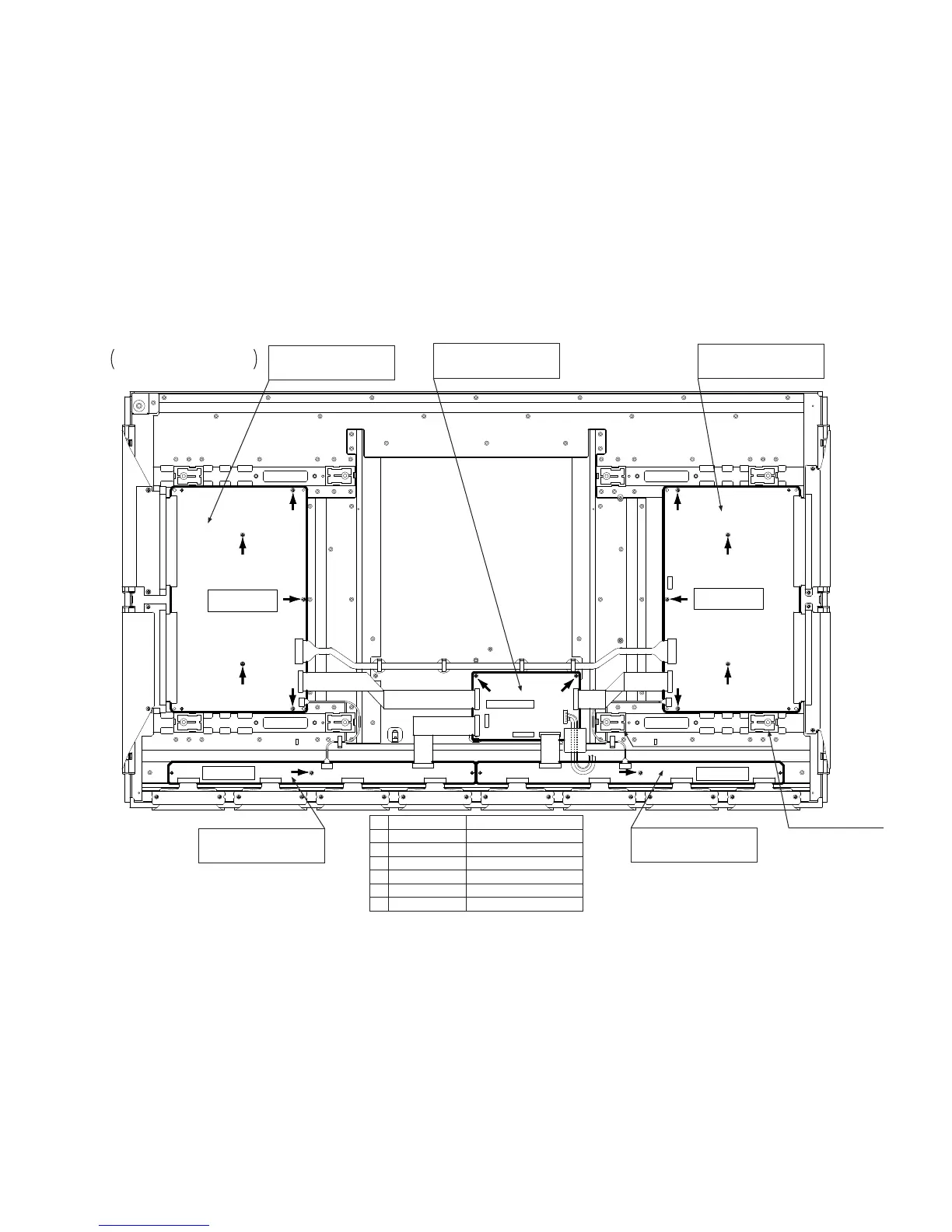

The figure of FHP Panel Module (42V)
Rear view
The state of a panel simple substance.
No. Spare Part Name FHP Spare Part#
1 Panel Module FPF42C128128UC-55
2 LOGIC PWB Ass’y FPF23R-LGC0005 (A1 ASIC)
3 X-SUS PWB Ass’y FPF23R-XSS0005
4 Y-SUS PWB Ass’y FPF23R-YSS0006
5 A-BUS L PWB Ass’y FPF23R-ABL0001
6 A-BUS R PWB Ass’y FPF23R-ABR0002
PANEL Y-SUS
PANEL X-SUS
PANEL LOGIC
PANEL ABUS-L
PANEL ABUS-R
Attachment for packing x8
*
Apply these attachments
before packing this panel
module.
