87
37PD5000 (EU) (PW1)
PANEL Y-SUS
PANEL X-SUS
PANEL ABUS-RPANEL ABUS-L
PANEL
LOGIC

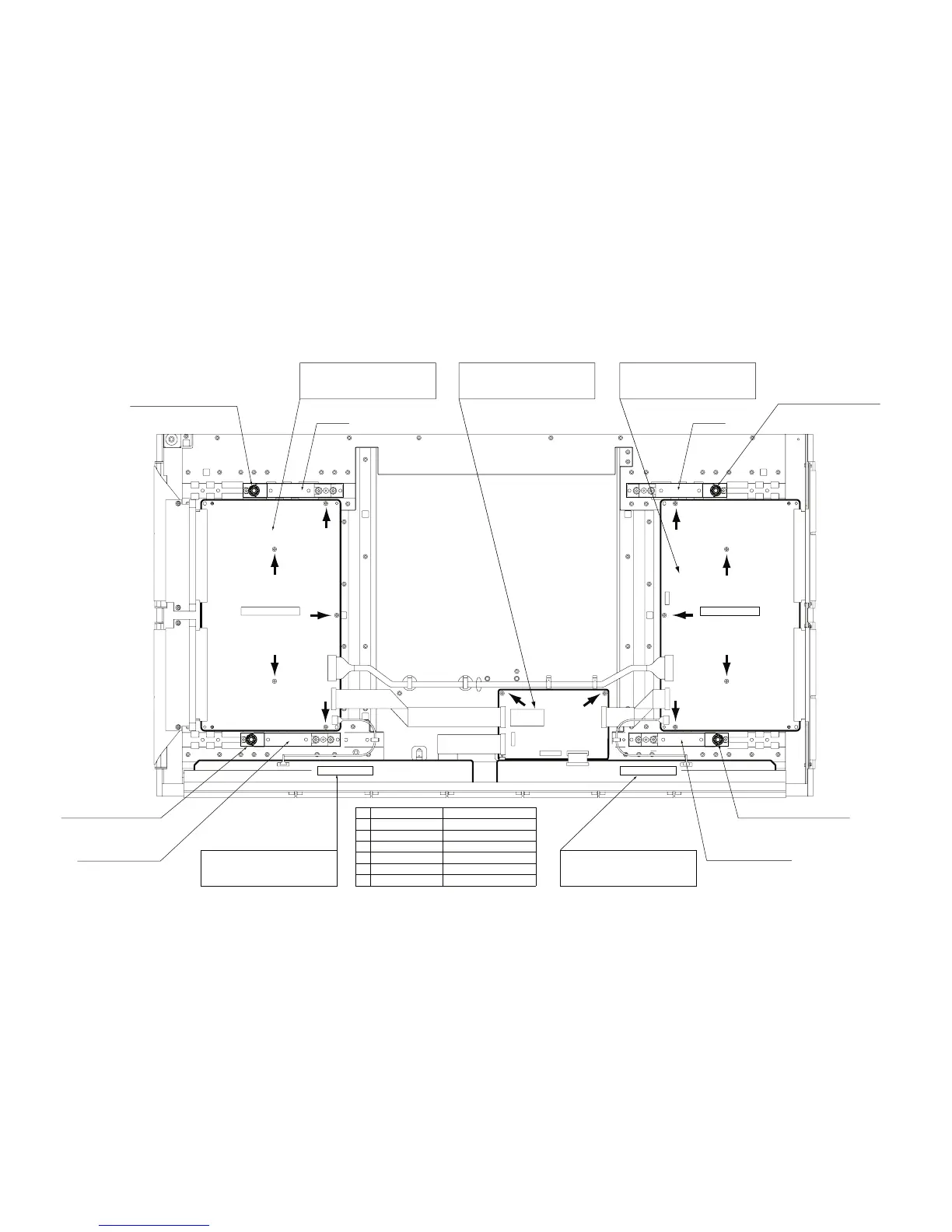

The figure of FHP Panel Module (37V)
Rear view
The state of a panel simple substance.
Handle
Y-SUS PWB ASS’Y
Manufactured at FHP factory.
Attachment for packing
*Apply it before packing
this panel module.
Attachment for packing
*Apply it before packing
this panel module.
Handle
Attachment for packing
*Apply it before packing
this panel module.
Handle for packing
* Apply it before packing
this panel module.
Attachment for packing
*Apply it before packing
this panel module.
Handle for packing
* Apply it before packing
this panel module.
㧔ޓޓޓޓޓޓޓ㧕
LOGIC PWB ASS’Y
Manufactured at FHP factory.
X-SUS PWB ASS’Y
Manufactured at FHP factory.
R-ADR PWB ASS’Y
Manufactured at FHP factory.
L-ADR PWB ASS’Y
Manufactured at FHP factory.
(2)
(3)
(4)
(5)
(6)
No.
(1)
(2)
(3)
(4)
(5)
(6)
Spare Part Name
Panel Module
LOGIC PWB Ass’y
X-SUS PWB Ass’y
Y-SUS PWB Ass’y
A-BUS L PWB Ass’y
A-BUS R PWB Ass’y
FPF37C128128UB-75
FPF22R-LGC0003(A1 ASIC)
FPF22R-XSS0003
FPF22R-YSS0004
FPF22R-ABL0005
FPF22R-ABR0006
FHP Spare Part#
