PRINTED CIRCUIT BOARDS

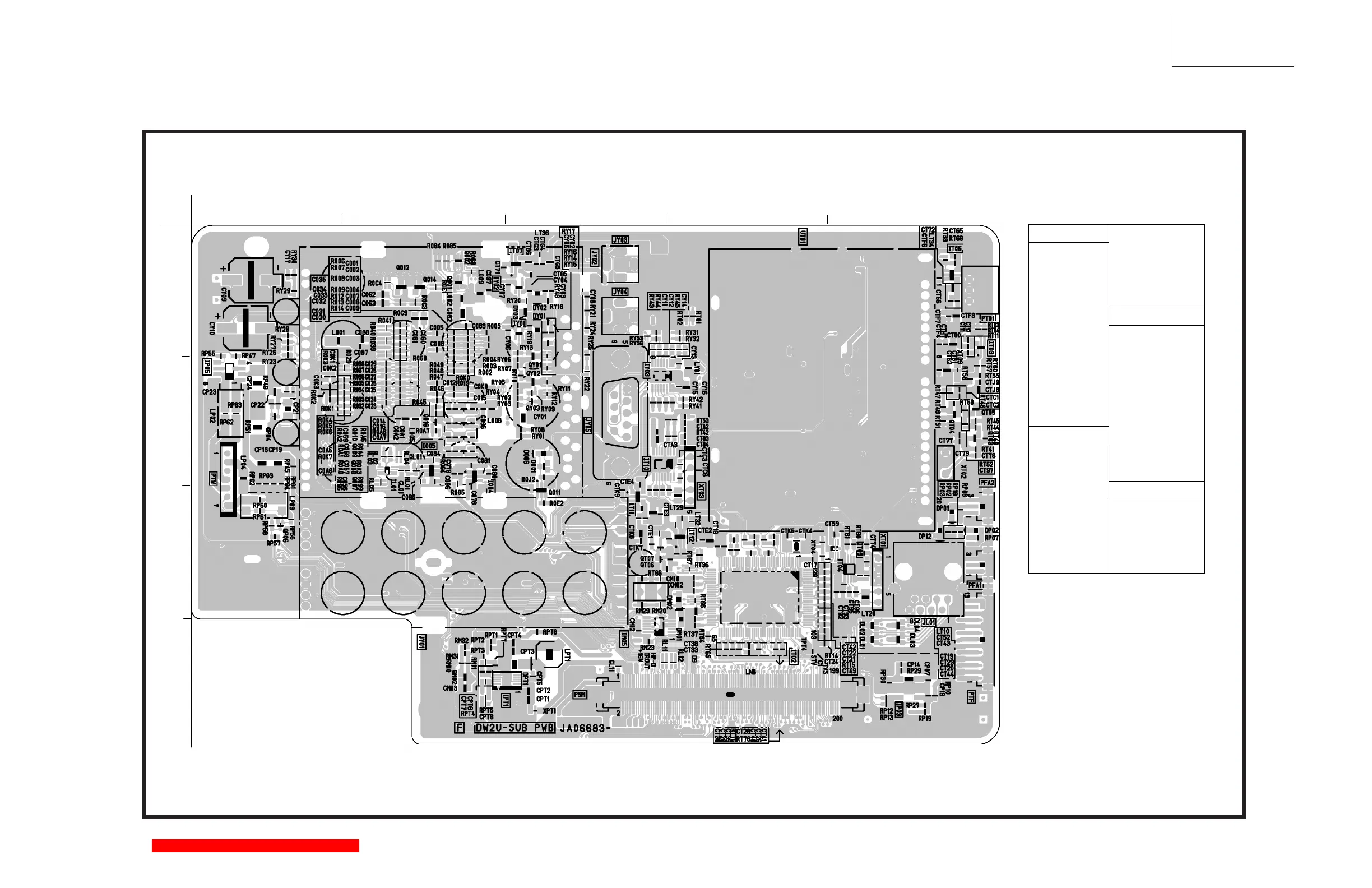

DW2-U SUBDIGITAL PWB (Component side)
DW2-U
SEMICONDUCTOR LOCATION
( Component side)
BACK TO TABLE OF CONTENTS
95
A
B
C
D
1 2 3 4 5
QT03 B-5
QT04 B-5
I004 B-2 QT05 B-5
I005 B-2 QT06 C-3
IL01 B-2 QT07 C-3
IM05 D-3 QY01 B-3
IP03 D-5 QY02 B-3
IP05 B-1 QY03 B-3
IPT1 D-2
IT02 C-4
IT03 A-5
IT04 C-4 D001 B-3
IT05 A-5 D006 B-3
IT07 A-3 DL01 D-5
IT09 C-5 DL02 D-5
IT10 B-3 DL03 D-5
IT11 C-3 DL04 D-5
IT12 C-4 DM01 D-4
IY01 A-3 DM02 C-4
IY02 A-3 DP01 C-5
IY03 B-3 DP02 C-5
DP10 B-1
DP12 C-5
DPT1 D-2
Q001 A-2 DY01 A-3
Q002 A-2 DY02 A-3
Q007 B-2 DY03 A-3
Q008 B-2
Q009 B-2
Q010 B-2
Q011 C-3 XM02 C-3
Q012 A-2 XPT1 D-3
Q014 A-2 XT01 C-5
Q016 B-2 XT02 B-5
QL01
B-2
XT03
B-4
QM02 D-2 XT04 C-4
QP04 B-1 XT09 B-5
QP06 C-1
CRYSTAL & FILTER
IC
TRANSISTOR
DIODE
