Hitachi C 10FCH2 Technical Data And Service Manual

--- 12 ---
CAUTION:
Laser radiation - Do not stare into beam.
Laser radiation on work table. Do not stare into beam. If your eye is exposed directly to the laser
beam, it can be hurt.
Do not dismantle it.
Do not give strong impact to the laser marker (main body of tool); otherwise, the position of a laser
line can go out of order, resulting in the damage of the laser marker as well as a shortened service life.
Keep the laser marker lit only during a cutting operation. Prolonged lighting of the laser marker can
result in a shortened service life.
NOTE:
Perform cutting by overlapping the ink line with the laser line. When the ink line and the laser line
are overlapped, the strength and weakness of light will change, resulting in a stable cutting
operation because you can easily discern the conformity of lines. This ensures the minimum
cutting errors.
In outdoor or near-the-window operations, it may become difficult to observe the laser line due to
the sunlight. Under such circumstances, move to a place that is not directly under the sunlight and
engage in the operation.
Do not tug on the cord behind the motor head or hook your finger, wood and the like around it;
otherwise, the cord may come off and the laser marker may not light.
Instruct the above precautions on the laser marker to the customers.

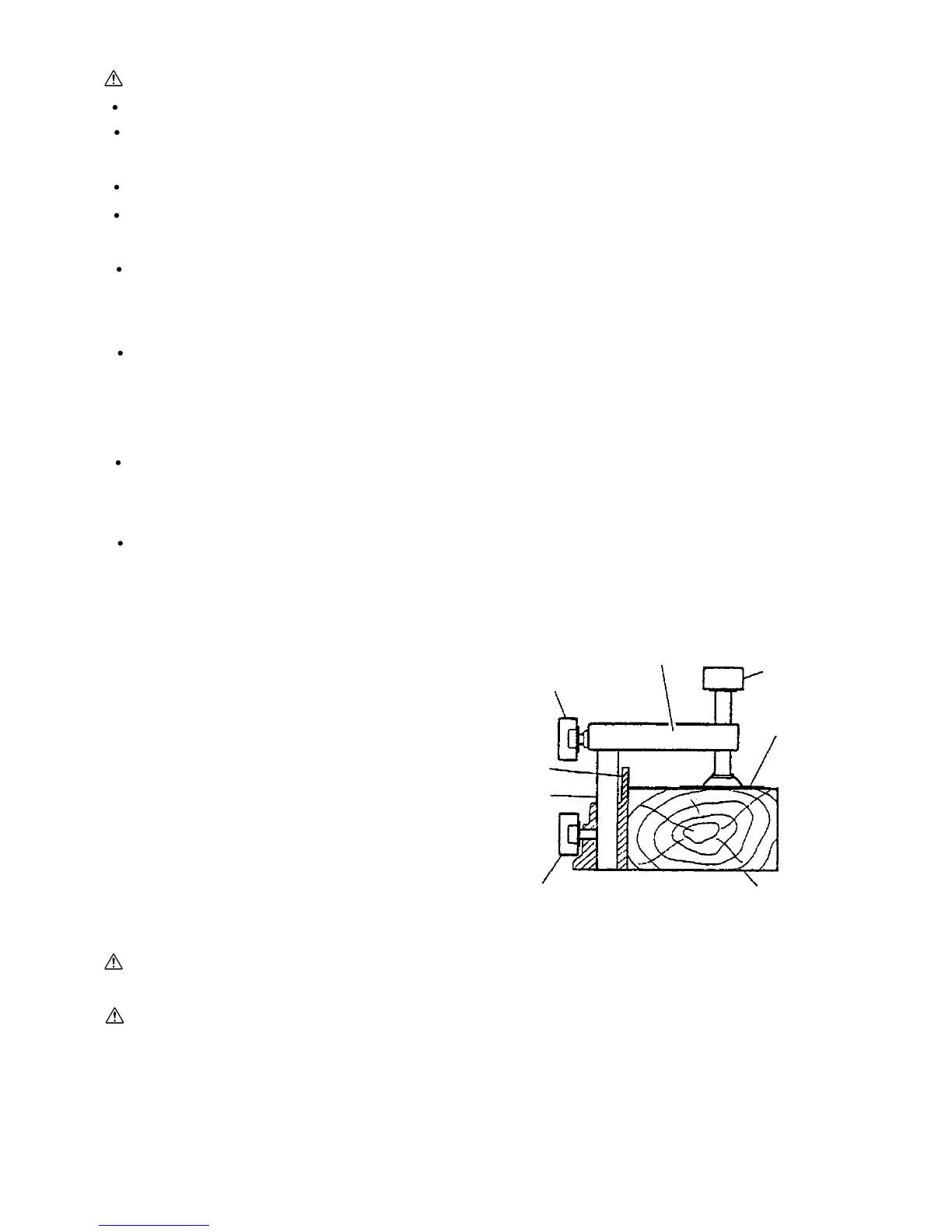

8-2. How to Use the Vise Assembly
(1) The vise assembly can be mounted on either the left
fence (fence (B)) or the right fence (fence (A)) by
loosening 6 mm wing bolt (A).
(2) The screw holder can be raised or lowered according to
the height of the workpiece by loosening 6 mm wing bolt
(B). After the adjustment, firmly tighten 6 mm wing bolt
(B) and fix the screw holder.
(3) Turn the upper knob and securely fix the workpiece in
position (Fig. 10).
6 mm wing
bolt (B)
Fence
Fig. 10
Vise shaft
Vise plate
Knob
Screw holder
Workpiece
6 mm wing
bolt (A)
WARNING: Always firmly clamp or vise to secure the workpiece to the fence; otherwise the
workpiece might be thrust from the table and cause bodily harm.
CAUTION: Always confirm that the motor head does not contact the vise assembly when it is
lowered for cutting. If there is any danger that it may do so, loosen 6 mm wing bolt (B)
and move the vise assembly to a position where it will not contact the saw blade.

Hitachi C 10FCH2 Specifications

General

Input power	1520 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Idle speed (max)	5000 RPM
Sound power level	95 dB
Bevel setting (left)	45 °
Miter setting (left)	52 °
Sound pressure level	108 dB
Cutting capacity 45° miter	40 x 102 mm

Weight and Dimensions

Depth	628 mm
Width	460 mm
Height	561 mm
Weight	12000 g
