Hitachi C 10FCH2 Technical Data And Service Manual

--- 18 ---
9. ADJUSTMENT OF COMPONENTS
9-1. Bevel Angle Adjustment
Before the power tool is shipped from the factory, it is adjusted for 0û and left 45û bevel cutting angles.
The positioning and bevel cutting angle can be adjusted by changing the height of the 8 mm nylock bolt
(maximum bevel cutting angle is 48û).
10. PACKING
(1) Place the base packing in the carton box.
(2) Preparation before packing
Turn the turn table 52û clockwise. Tilt the gear case 25û. Set the clamp lever to the position as shown in
Fig. 23. Remove the side handle. Fix the turn table with the bolt M10 x 35.
(3) Mounting packing (D)
Place packing (D) under the gear case and swing the motor section. Pressing on packing (D), hook the
stopper pin on the gear case.
(4) Mounting packing (C)
Pressing Packing (C) against the top of the base, side of fence (B) and side of the gear case, place the main
body in the carton box.
(5) Mounting packing (F)
Fold packing (F) in two at the center and insert it between the gear case and protective cover (A).
(6) Mounting packings (B) and (A)
Place the base packing in the carton box and place the power tool on it. Fit packing (B) on the housing.
Place packing (A) at the left of the base.
(7) Mounting packing (E)
Place packing (E) on the gear case. Close the carton box.

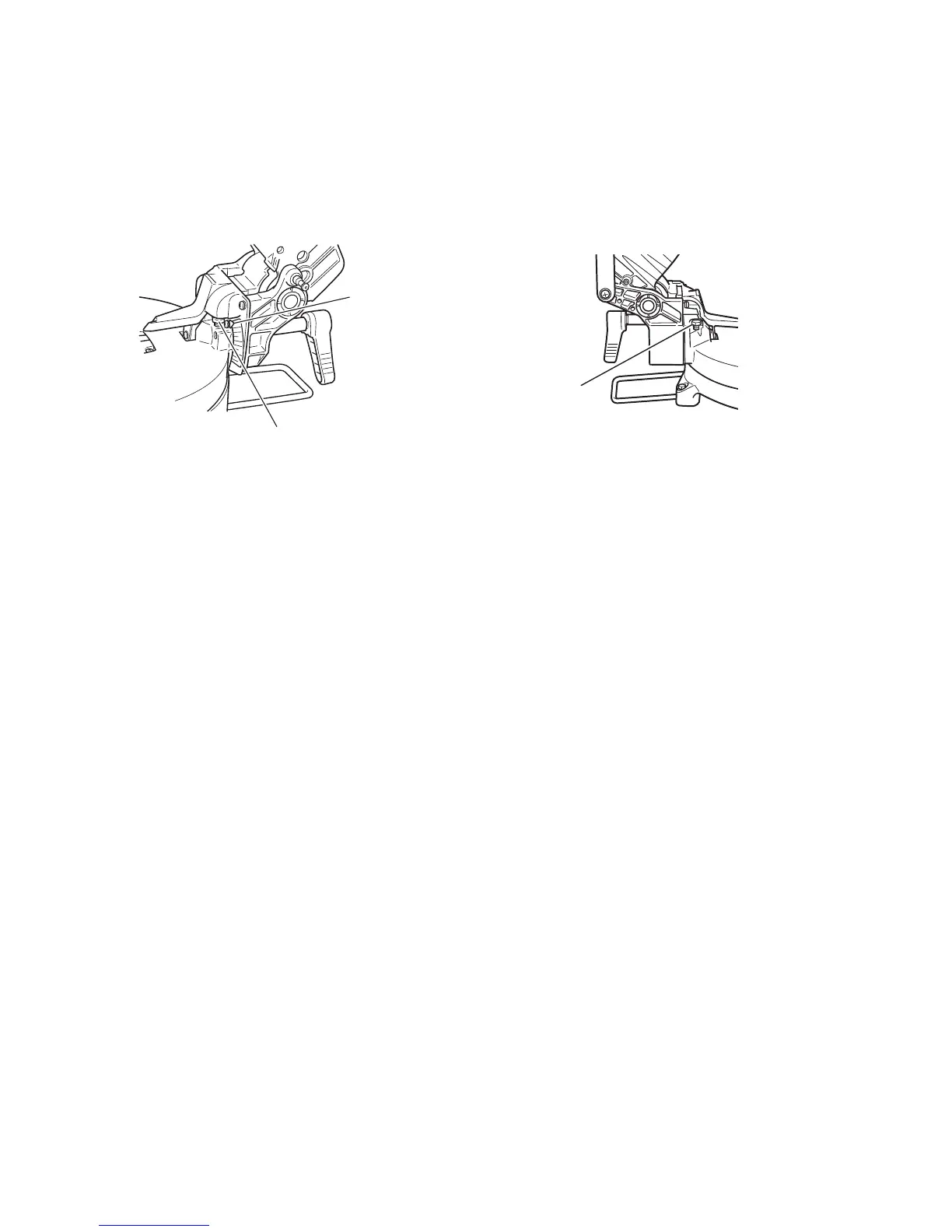

Fig. 21 Fig. 22
8 mm nylock bolt
(stopper for left
45û bevel angle)
Indicator
(For bevel scale)
8 mm nylock bolt
(stopper for 0û)

Hitachi C 10FCH2 Specifications

General

Input power	1520 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Idle speed (max)	5000 RPM
Sound power level	95 dB
Bevel setting (left)	45 °
Miter setting (left)	52 °
Sound pressure level	108 dB
Cutting capacity 45° miter	40 x 102 mm

Weight and Dimensions

Depth	628 mm
Width	460 mm
Height	561 mm
Weight	12000 g
