Cutting method of crown molding without tilting the saw blade
6 mm wing bolt
Crown molding stopper (L)
(optional accessory)
Crown molding stopper (R)
(optional accessory)
6 mm wing bolt
Crown molding
vise ass'y
(optional
accessory)
(1) Crown molding stoppers (L) and (R) (optional
accessories) allow easier cuts of crown molding without
tilting the saw blade. Install them to both sides of the
base as shown in Fig. 19. After inserting, tighten the
6 mm knob bolts to secure the crown molding guides.
[ Optional accessories used ]
Crown molding vise ass'y
(including crown molding stopper (L))
Crown molding stopper (L)
Crown molding stopper (R)
(2) The crown molding vise ass'y (optional accessory) can
be mounted on either the left fence (fence (B)) or the
right fence (fence (A)). It can unite with the slope of the
crown molding and vise can be pressed down. Then
turn the upper knob, as necessary, to securely attach
the crown molding in position. To raise or lower the vise
assembly, first loosen the 6 mm knob bolt.
After adjusting teh height, firmly tighten the 6 mm wing boltl; then turn the upper knob, as necessary, to
securely attach the crown molding in position. (See Fig. 20)
WARNING: Always firmly clamp or vise to secure the crown molding to the fence; otherwise the
crown molding might be thrust from the table and cause bodily harm. Do not perform
bevel cutting. The main body or saw blade may contact the sub fence, resulting in an
injury.
CAUTION: Always confirm that the motor head does not contact the crown molding vise ass'y
when it is lowered for cutting. If there is any danger that it may do so, loosen the 6 mm
knob bolt and move the crown molding vise ass'y to a position where it will not contact
the saw blade.
Position crown molding with its WALL CONTACT EDGE against the guide fence and its CEILING CONTACT
EDGE against the crown molding stoppers as shown in Fig. 20. Adjust the crown molding stoppers according
to the size of the crown molding. Tighten the 6 mm wing bolt to secure the crown molding stoppers.

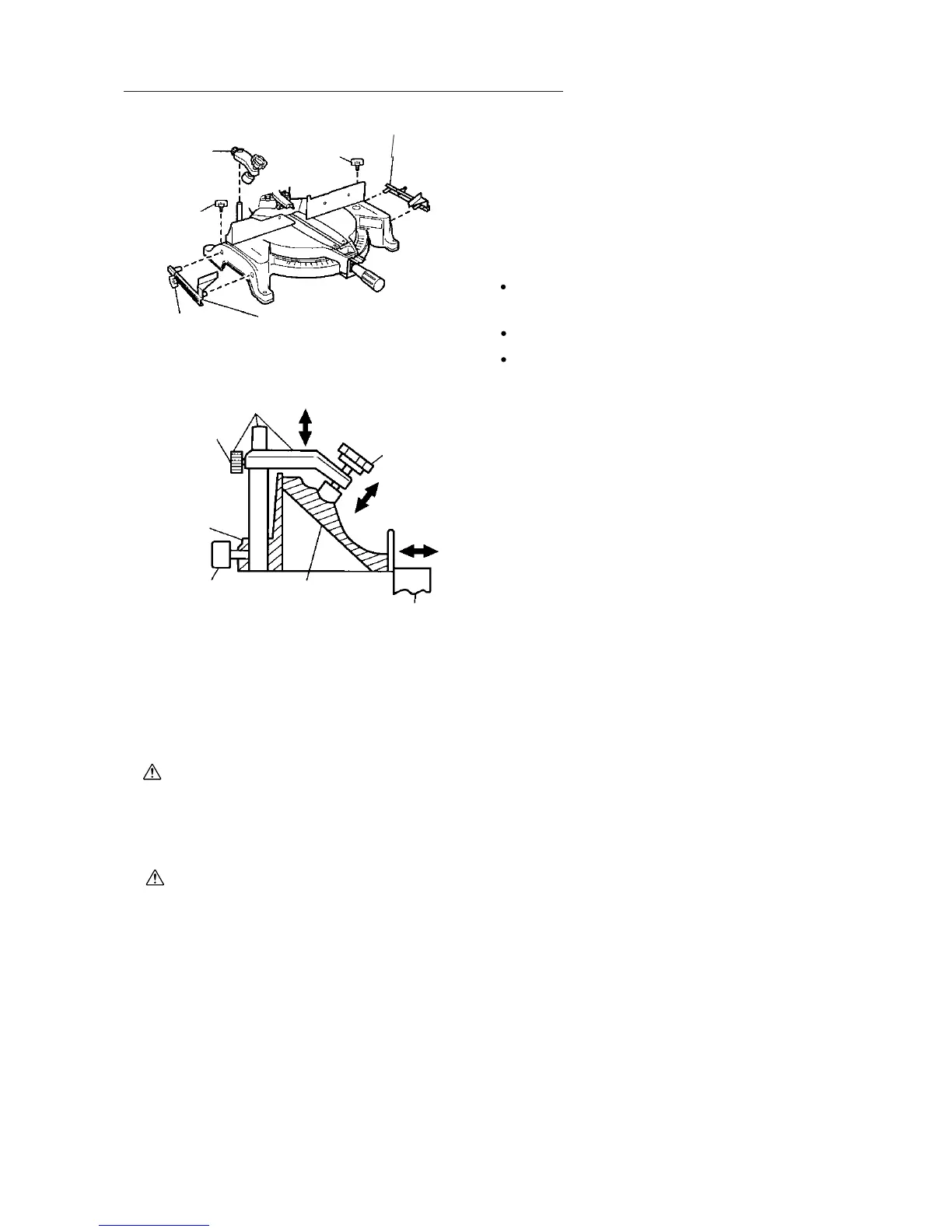

Fig. 19
Fig. 20
Crown molding vise ass'y
(optional accessory)
Crown molding
6 mm wing bolt
Fence
6 mm knob bolt
Crown molding stopper (L)
Crown molding stopper (R)
(optional accessories)
Knob
6 mm wing
bolt

Hitachi C 10FCH2 Specifications

General

Input power	1520 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Idle speed (max)	5000 RPM
Sound power level	95 dB
Bevel setting (left)	45 °
Miter setting (left)	52 °
Sound pressure level	108 dB
Cutting capacity 45° miter	40 x 102 mm

Weight and Dimensions

Depth	628 mm
Width	460 mm
Height	561 mm
Weight	12000 g
