--- 16 ---

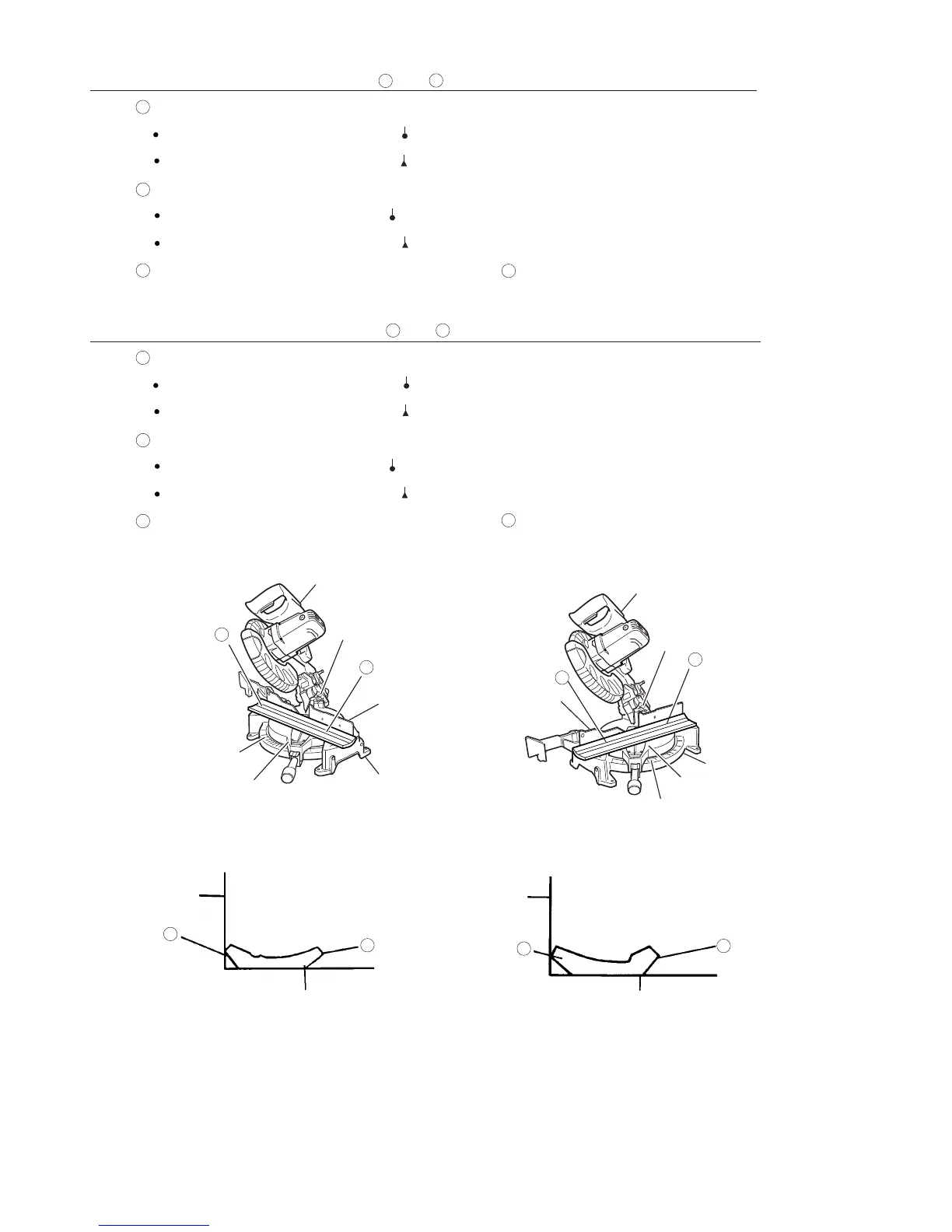

(1) Setting to cut crown molding at positions and in Fig. 14 (See Fig. 15, tilt the head to the left.):
Turn the turn table to the right and set the miter angle as follows:
For 45û type crown moldings: 35.3û ( mark)
For 38û type crown moldings: 31.6û ( mark)
Turn the head to the left and set the bevel angle as follows:
For 45û type crown moldings: 30û ( mark)
For 38û type crown moldings: 33.9û ( mark)
Position the crown molding so that the lower surface ( in Fig. 13) contacts the fence as indicated in
Fig. 17.
1
4
2
3 A
1
Head
Miter angle scale
Bevel angle scale
Fig. 15
(2) Setting to cut crown moldings at positions and in Fig. 14 (See Fig. 16, tilt the head to the left.):
Turn the turn table to the left and set the miter angle as follows:
For 45û type crown moldings: 35.3û ( mark)
For 38û type crown moldings: 31.6û ( mark)
Tilt the head to the left and set the bevel angle as follows:
For 45û type crown moldings: 30û ( mark)
For 38û type crown moldings: 33.9û ( mark)
Position the crown molding so that the lower surface ( in Fig. 13) contacts the fence as indicated in
Fig. 18.
2 3
1
2
3
B
Fig. 16
Bevel angle scale
Turn table
Fence
Miter angle scale
Fig. 17
Fig. 18
Fence
Table on base
Fence
Table on base
B
A
B
A
2
3
4
1
Base
Turn table
Base
Fence
Head

Hitachi C 10FCH2 Specifications

General

Input power	1520 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Idle speed (max)	5000 RPM
Sound power level	95 dB
Bevel setting (left)	45 °
Miter setting (left)	52 °
Sound pressure level	108 dB
Cutting capacity 45° miter	40 x 102 mm

Weight and Dimensions

Depth	628 mm
Width	460 mm
Height	561 mm
Weight	12000 g
