--- 26 ---
1. Remove the two Tapping Screws (W/Flange) D4 x 25 (Black) [151] and the four Tapping Screws (W/Flange)
D4 x 20 (Black) [152], then remove the Switch Handle [153]. Remove the wire of the Laser Holder [1] from
the Switching Power Supply [157]. (Only the Model C 10FCH2)
2. Remove the Machine Screw M4 x 8 [114] and the Nylon Clip [112].
3. Remove the two Machine Screws (W/Washers) M5 x 16 [23] and remove the Dust Guide Ass'y [22] from the
Hinge [16].
4. Remove the two Hex. Socket Hd. Bolts M6 x 20 [17] and remove the Laser Holder [1] from the Hinge [16].

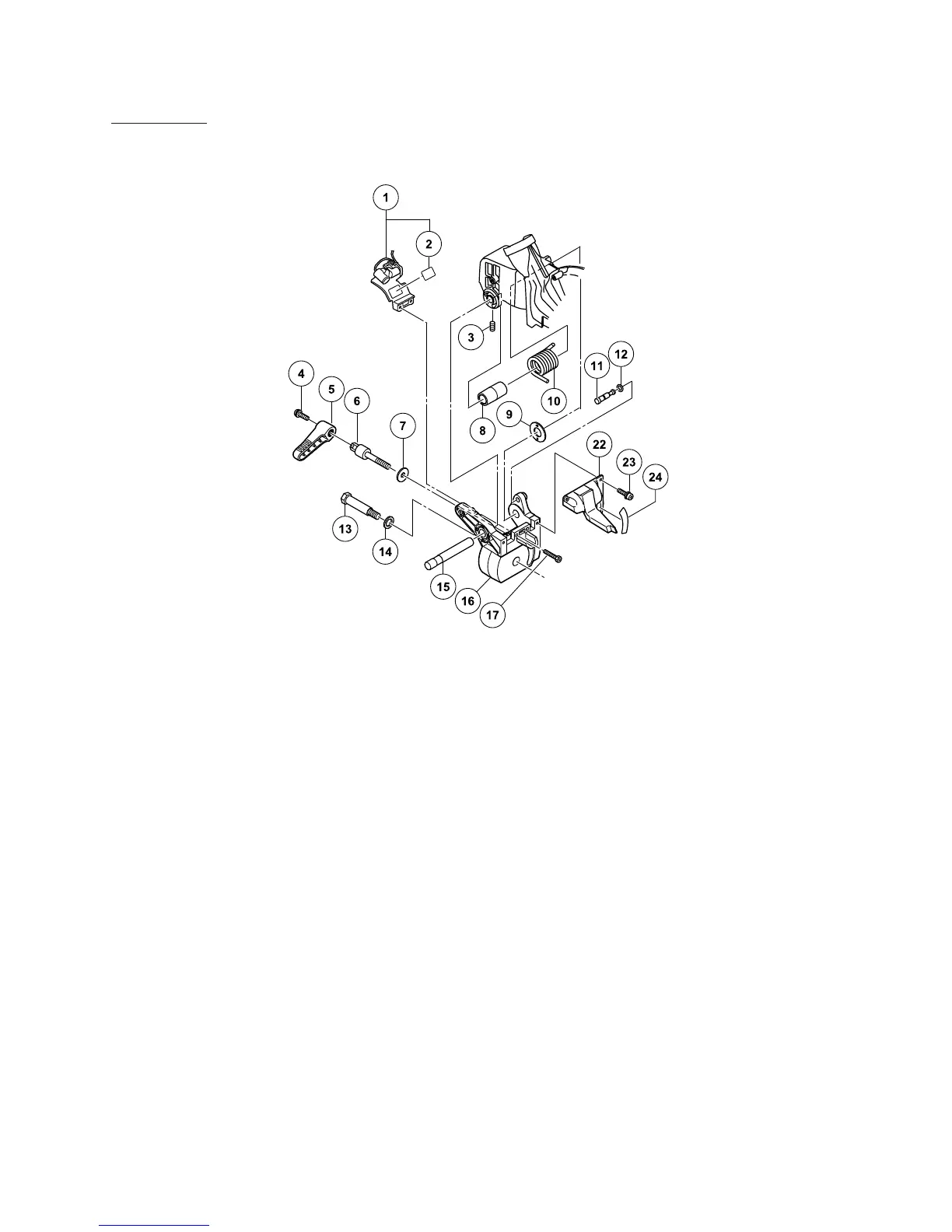

Fig. 31
E. Laser marker
Tools required:
• Phillips screwdriver
• Hex. bar wrench 4 mm
• Hex. bar wrench 3 mm
• Long-nose pliers

Hitachi C 10FCH2 Specifications

General

Input power	1520 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Idle speed (max)	5000 RPM
Sound power level	95 dB
Bevel setting (left)	45 °
Miter setting (left)	52 °
Sound pressure level	108 dB
Cutting capacity 45° miter	40 x 102 mm

Weight and Dimensions

Depth	628 mm
Width	460 mm
Height	561 mm
Weight	12000 g
