Hitachi C 10FCH2 Technical Data And Service Manual

--- 32 ---
Fig. 34-1
C 10FCH2 USA/CAN
2

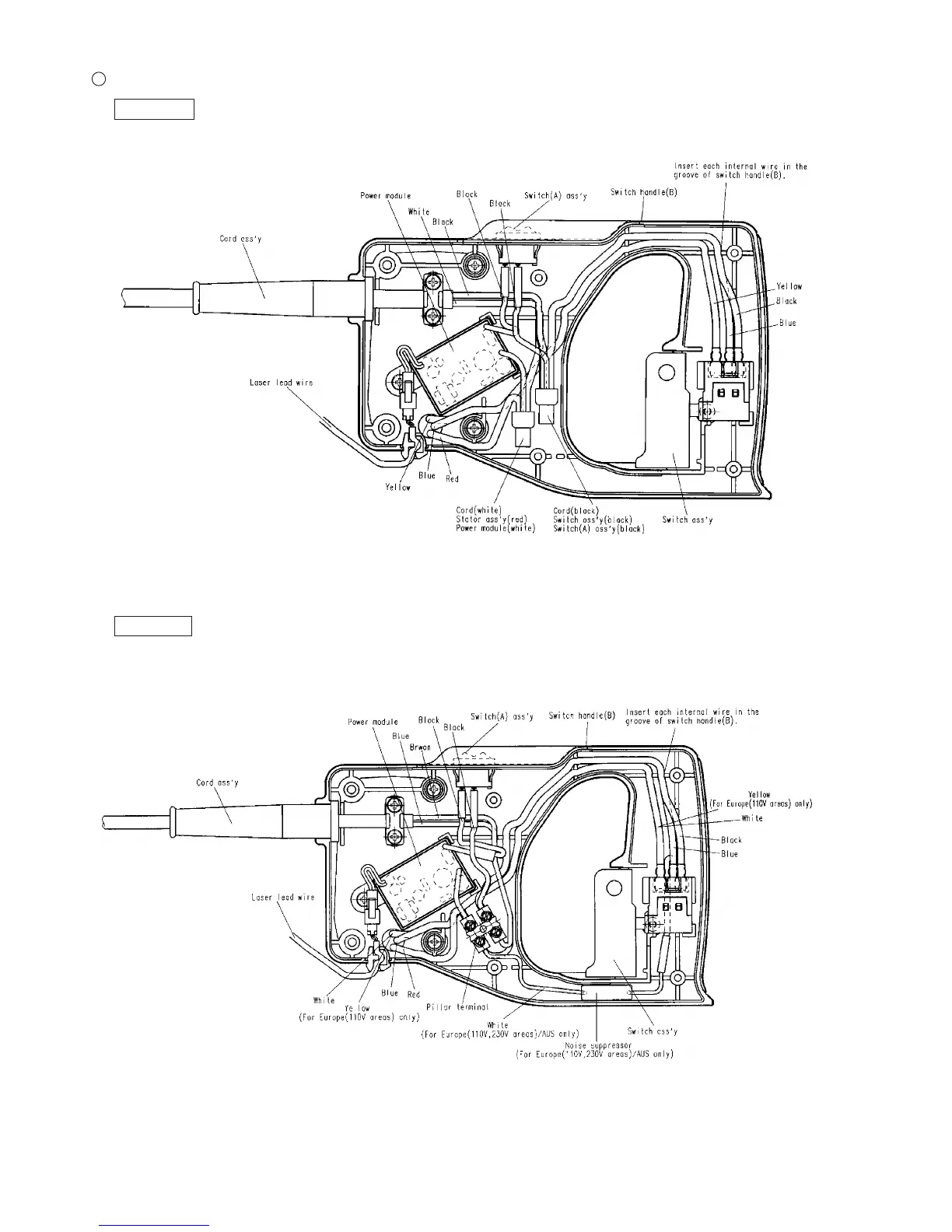

Actual wiring diagram
C 10FCH2 Europe/AUS/NZL/China/Hong Kong
Fig. 34-2

Hitachi C 10FCH2 Specifications

General

Input power	1520 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Idle speed (max)	5000 RPM
Sound power level	95 dB
Bevel setting (left)	45 °
Miter setting (left)	52 °
Sound pressure level	108 dB
Cutting capacity 45° miter	40 x 102 mm

Weight and Dimensions

Depth	628 mm
Width	460 mm
Height	561 mm
Weight	12000 g
