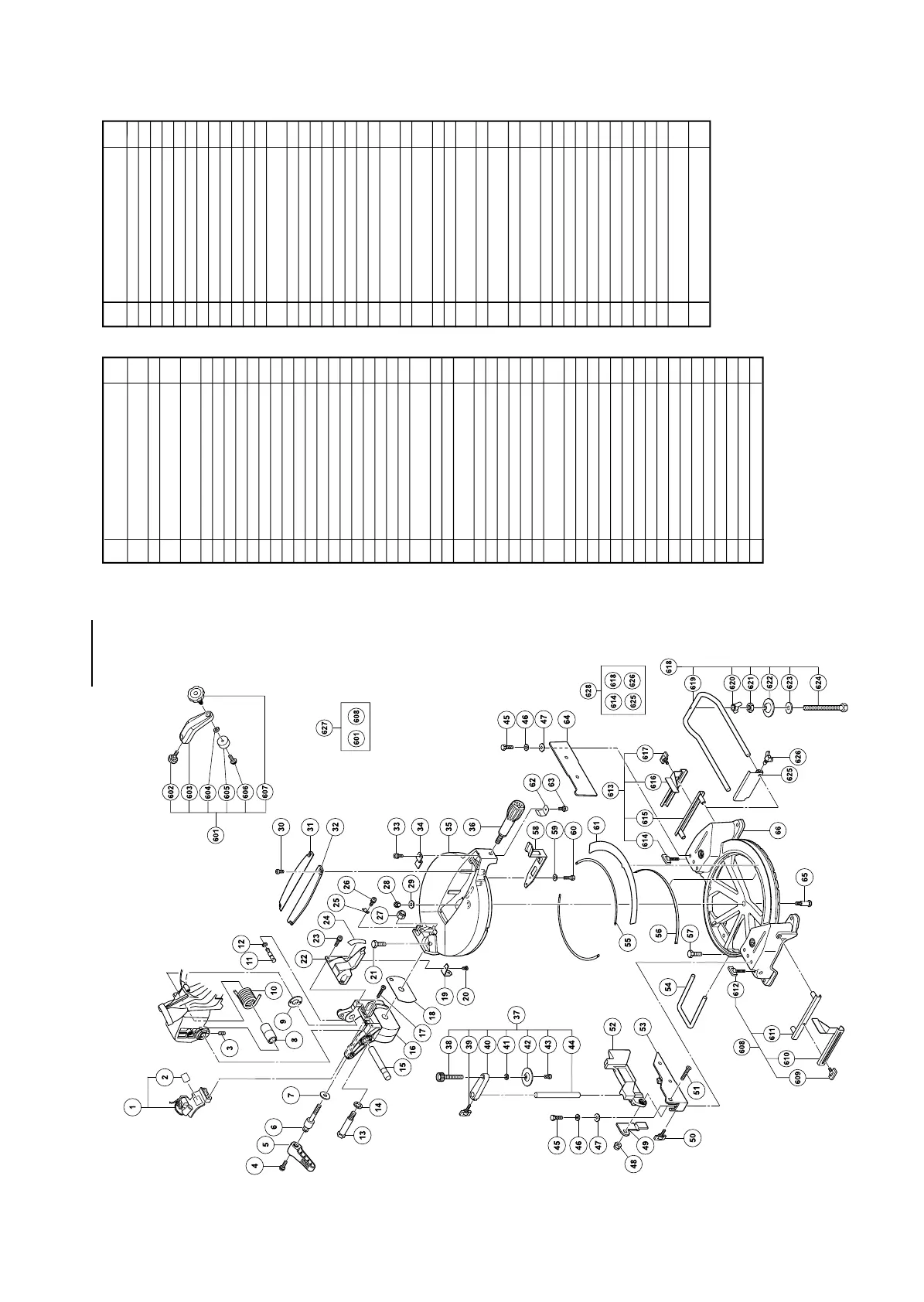

Hitachi C 10FCH2

48
C10FCH2
ITEM
NO.
PART NAME Q’TY
51 FLAT HD. SCREW M6×25 1
52 SUB FENCE (B) 1
53 FENCE (B) 1
54 HOLDER 1
55 LINER (A) 2
56 LINER (C) 1
57 BOLT M6×12 1
58 SPRING PLATE 1
59 SPRING WASHER M8 2
60 HEX. SOCKET HD. BOLT M8×16 2 61 SCALE (A) 1
62 SPACER (A) 1
63
MACHINE SCREW (W/WASHERS)
M4×8
2
64 FENCE (A) 1
65 SHAFT (B) 1
66 BASE ASS’Y (INCLUDE 61) 1
601 VISE (B) ASS’Y (INCLUDE 602-607) 1
602 KNOB BOLT M6×11 1
603 SCREW HOLDER (B) 1
604 WASHER (H) 1
605 BASE RUBBER 1
606
MACHINE SCREW (W/WASHERS)
M4×10 (BLACK)
1
607 KNOB BOLT M10×54 1
608
CROWN MOLDING STOPPER (L)
ASS’Y INCLUDE 609-612)
1
609 WING BOLT M6X15 1
610 CROWN MOLDING STOPPER (L) 1
611
CROWN MOLDING STOPPER
HOLDER
1
612 WING BOLT M6×52 1
613
CROWN MOLDING STOPPER (R)
ASS’Y (INCLUDE 614-617)
1
614 WING BOLT M6×52 2
615
CROWN MOLDING STOPPER
HOLDER
1
616 CROWN MOLDING STOPPER (R) 1
617 WING BOLT M6×15 1
618 HOLDER ASS’Y (INCLUDE 619-626) 1 619 HOLDER 1
620 WING NUT M6 1
621 NUT M6 1
622 VISE PLATE 1
623 WASHER M6 1
624 HIGH TENSION BOLT M6×80 1
625 STOPPER 1 626 WING BOLT M6×20 1
627
CROWN MOLDING VISE ASS’Y
(INCLUDE 601, 608)
1
628
GUIDE ASS’Y (INCLUDE 614, 618,
625, 626)
1
ITEM
NO.
PART NAME Q’TY
1
LASER HOLDER ASS’Y
(INCLUDE. 2)
1
2 CAUTION LABEL (A) 1
3
SEAL LOCK HEX. SOCKET SET
SCREW M6×10
1
4
MACHINE SCREW (W/WASHERS)
M6×20
1
5 CLAMP LEVER 1
6 BOLT (LEFT HAND) M10 1
7 SPECIAL WASHER 1
8 SLEEVE 1 9 LINER (D) 1
10 SPRING 1
11 STOPPER PIN ASS’Y 1
12 O-RING (P-6) 1
13 SHAFT (D) 1
14 WASHER M16 1
15 SHAFT (C) 1
16 HINGE 1
17 HEX. SOCKET HD. BOLT M6×25 2
18 LINER (B) 1
19 DUST GUIDE HOLDER 1
20 MACHINE SCREW M4×81
21 NYLOCK BOLT M8×25 2
22 DUST GUIDE ASS’Y (INCLUDE 24) 1
23
MACHINE SCREW (W/WASHERS)
M5×16
2
24 SCALE (B) 1
25 INDICATOR (B) 1
26
MACHINE SCREW (W/WASHERS)
M4×10
1
27 NYLON NUT M12 1
28 NYLON NUT M8 1
29 WASHER (F) 1
30 MACHINE SCREW M4×12 4
31 TABLE INSERT (A) 1
32 TABLE INSERT (B) 1
33
MACHINE SCREW (W/WASHERS)
M4×10
1
34 INDICATOR (A) 1
35 TURN TABLE 1
36 SIDE HANDLE 1
37 VISE ASS’Y (INCLUDE 38-44) 1
38 KNOB BOLT M10×66 1
39 WING BOLT M6×15 1
40 SCREW HOLDER 1
41 BOLT WASHER M6 1
42 VISE PLATE 1
43 MACHINE SCREW M4×10 1
44 VISE SHAFT 1
45 BOLT M8×35 4
46 SPRING WASHER M8 4
47 BOLT WASHER M8 4
48 NYLON NUT M6 1
49 PLATE (A) 1
50 WING BOLT M6×15 1
