SPECIFICATIONS
ACCESSORIES
WARNING:
Accessories for this power tool are mentioned in this Instruction Manual.
The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

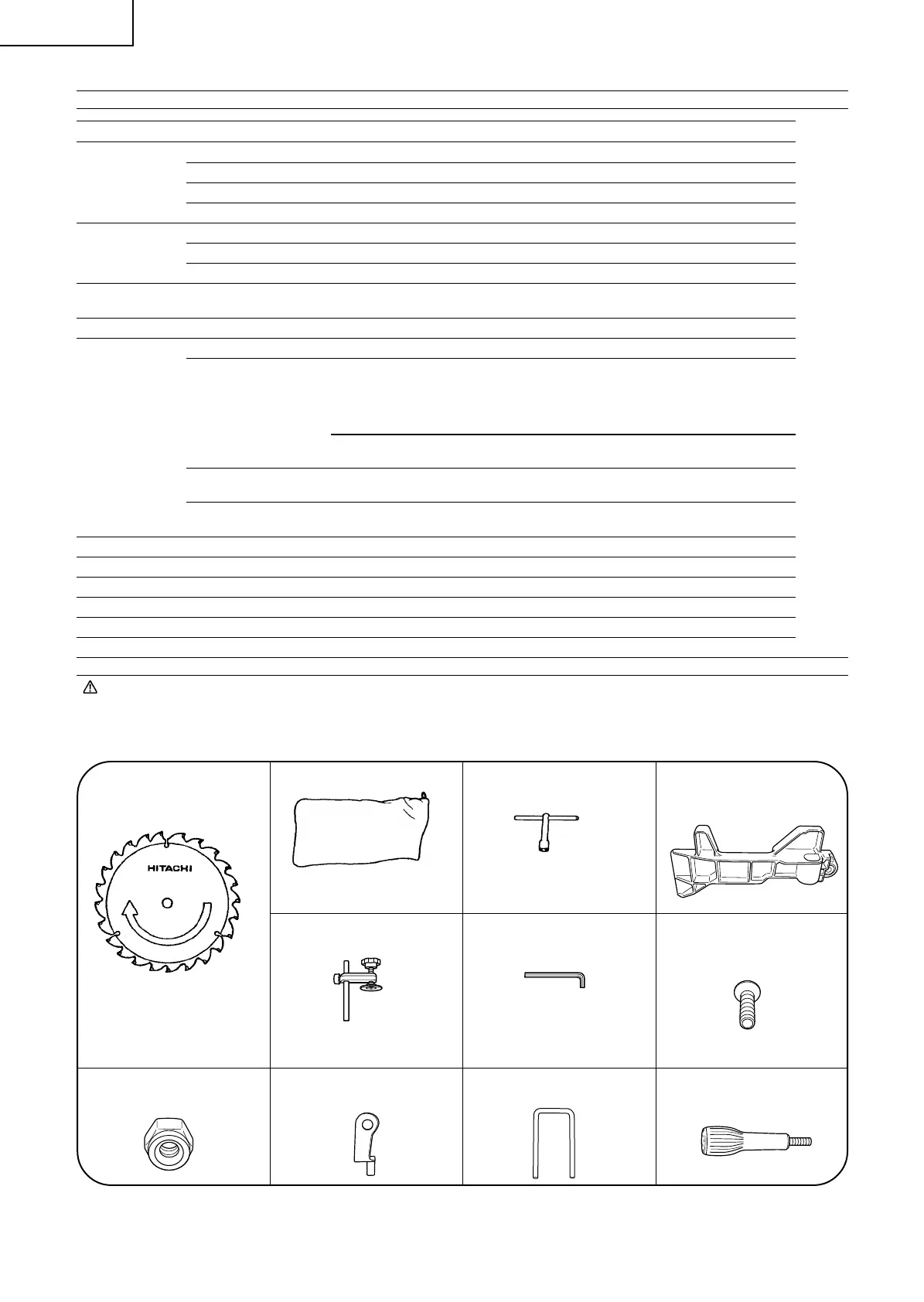

STANDARD ACCESSORIES
Fig. 3
Item Model C 10FCH2 / C 10FCE2
Motor Type Series commutator motor
Power source Single-phase AC 60Hz
Voltage (Volts) 120
Full-load current (Amp) 15
Laser Marker Maximum output <1mW CLASS II Laser Product
(Only Model Wave length 400 – 700 nm
C10FCH2) Laser medium Laser Diode
Applicable Outside Dia. 10
in.
(255mm)
saw blade Hole Dia. 5/8
in.
(15.9mm)
No load speed 5000/min
Max. Head Turntable Max. sawing dimension
sawing Miter 0 0 Max. Height 2-5/16
in.
(59mm)
dimension
Max. Width 5-21/32
in.
(144mm)
or
Max. Height 3-1/2
in.
(89mm)
Max. Width 3-31/32
in.
(101mm)
0 Left 45° Max. Height 2-5/16
in.
(59mm)
Max. Width 4
in.
(102mm)
Bevel Left 45° 0 Max. Height 1-5/8
in.
(41mm)
Max. Width 5-21/32
in.
(144mm)
Compound Left 45° Left 45° Max. Height 1-5/8
in.
(41mm)
Max. Width 4
in.
(102mm)
Miter sawing range Left 0° – 52° Right 0° – 52°
Bevel sawing range Left 0° – 45°
Compound sawing range Left (Bevel) 0° – 45°, Left and Right (Miter) 0° – 45°
Net weight 26.5 lbs. (12 kg) / 26.3 lbs. (11.9 kg)
Cord 2 Conductor type cable 6ft. (1.8m)
2 Dust bag (1 piece)1 10
in.
(255mm) TCT Saw
blade (1 piece) (For wood)
For how to use, refer to
page 13.
4 10mm BOX wrench
(1 piece)
3 Vise Assembly w/knob bolt
(1 piece)
For how to use, refer to
page 10.
(No. of teeth 24
Code No. 318963)
5 4mm Hex. bar wrench
(Only C10FCH2)
For how to use, refer to
page 10.
6 Sub fence
(1 piece)
7 Flat screw
(1 piece)
8 M6 Nylon nut
(1 piece)
9 Plate (A)
(1 piece)
0 Holder (B)
(1 piece)
A Side handle
(1 piece)
