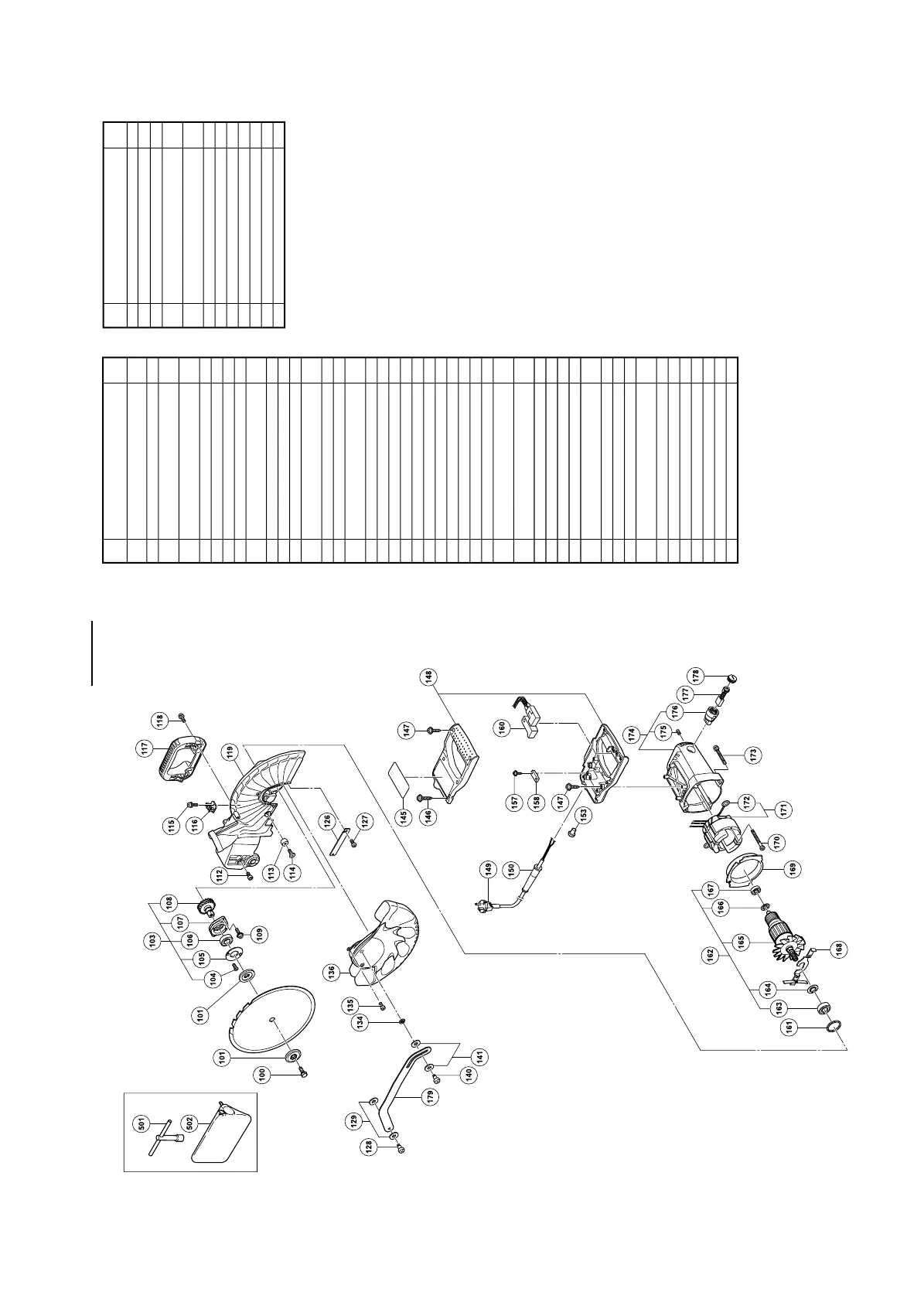

Hitachi C 10FCH2

51
C10FCE2
ITEM
NO.
PART NAME Q’TY
100
BOLT (LEFT HAND) W/WASHER
M7×17.5
1
101 WASHER (D) 2
103
SPINDLE ASS’Y
(INCLUDE 104-108)
1
104
SEAL LOCK FLAT HD. SCREW
M4×10
2
105 BEARING COVER 1
106 BALL BEARING 6003VVCMPS2L 1
107 BEARING HOLDER 1 108 SPINDLE AND GEAR SET 1
109
MACHINE SCREW
(W/SP. WASHER) M5×16
2
112 HEX. SOCKET HD. BOLT M5×10 1 113 CUSHION 1
114 FLAT HD. SCREW M6×16 1
115
MACHINE SCREW (W/WASHERS)
M4×12
1
116 HOOK 1
117 HANDLE 1
118
MACHINE SCREW (W/WASHERS)
M6×20
2
119 GEAR CASE ASS’Y 1
126 SPINDLE COVER 1
127 MACHINE SCREW M4×82
128 SPECIAL SCREW M6 1
129 WASHER M7 2 134 SPRING WASHER M5 1
135 MACHINE SCREW M4×83
136 LOWER GUARD 1
140 SPECIAL SCREW (C) M5 1
141 WASHER M10 2
145 NAME PLATE 1
146
TAPPING SCREW (W/FLANGE)
D4×25
2
147
TAPPING SCREW (W/FLANGE)
D4×20
6
148 SWITCH HANDLE (A).(B) SET 1
149 CORD 1
150 CORD ARMOR 1
153 CONNECTOR 2
157
TAPPING SCREW (W/FLANGE)
D4×16
2
158 CORD CLIP 1
160 SWITCH 1
161 RUBBER RING 1
162
ARMATURE ASS’Y
(INCLUDE 163-167)
1
163 BALL BEARING 6202VVCMPS2L 1 164 DUST WASHER (B) 1
165 ARMATURE 1
166 WASHER (A) 1
167 BALL BEARING 6000VVCMPS2L 1
168 LOCK LEVER 1
169 FAN GUIDE 1
ITEM
NO.
PART NAME Q’TY
170 HEX. HD. TAPPING SCREW D5×50 2
171 STATOR ASS’Y 1
172 BRUSH TERMINAL 2
173
MACHINE SCREW (W/WASHERS)
M5×40
4
174
HOUSING ASS’Y
(INCLUDE 175, 176)
1
175 HEX. SOCKET SET SCREW M5×82
176 BRUSH HOLDER 2
177 CARBON BRUSH 2 178 BRUSH CAP 2
179 LINK 1
501 BOX WRENCH 10MM 1
502 DUST BAG 1
