5. Cutting narrow workpieces (Press cutting)
Slide the hinge down to holder (A), then tighten the slide securing
knob as indicated in Fig. 22.
Lower the handle to cut the workpiece.
Using the power tool this way will permit cutting of workpieces of
up to 3-11/32" (85mm) square.

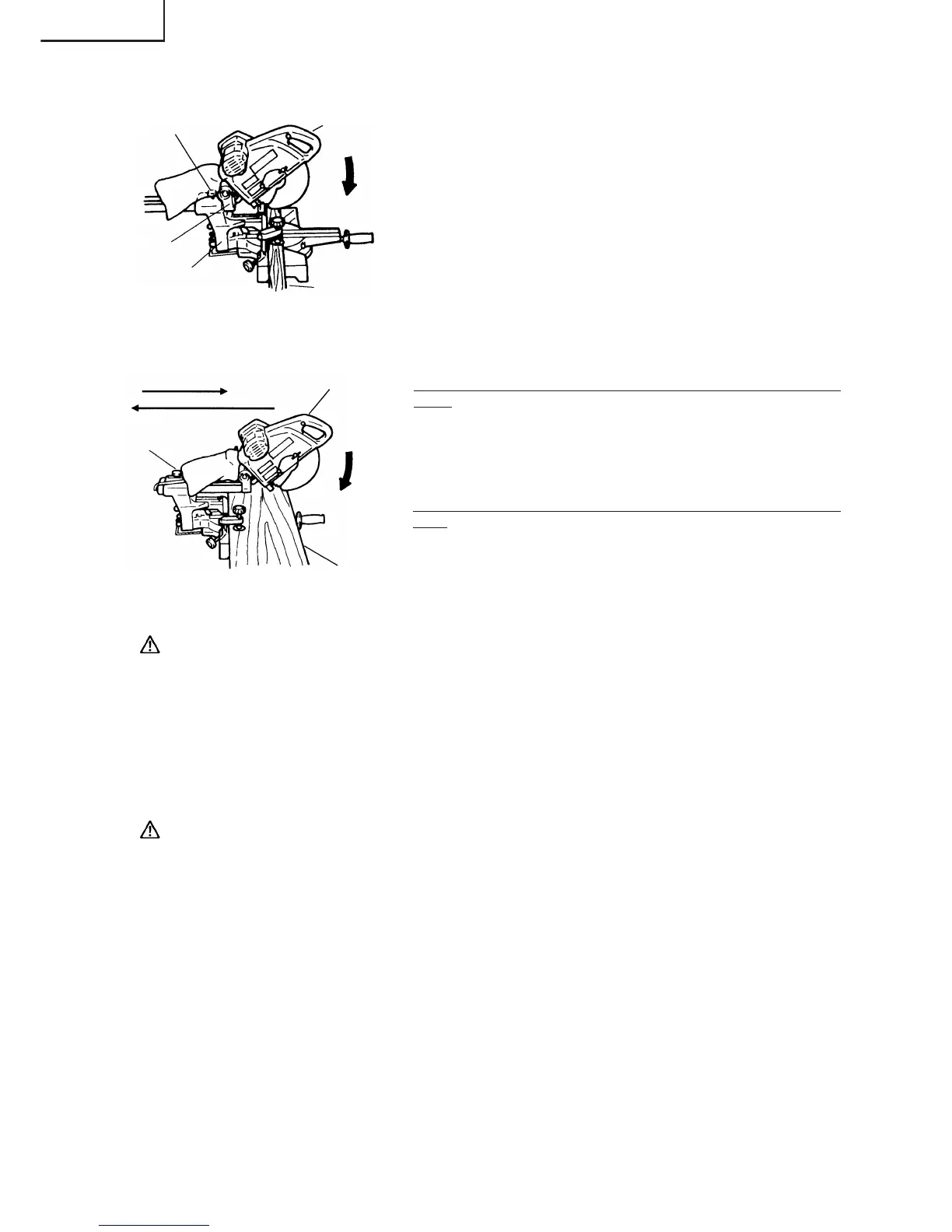

Fig. 22
6. Cutting wide workpieces (Slide cutting)
(1) Workpieces up to 3-11/32" (85mm) high and 12-9/32" (312mm)
wide: Loosen the slide securing knob, grip the handle and slide
the saw blade forward.
Then press down on the handle and slide the saw blade back to
cut the workpiece as indicated in Fig. 23. This facilitates cutting
of workpieces of up to 3-11/32" (85mm) in height and 12-9/32"
(312mm) in width.
(2) Workpieces up to 3-35/64" (90mm) high and 11-39/64" (295mm)
wide: Workpieces of up to 3-35/64" (90mm) in height and up to
11-39/64" (295mm) in width can be cut in the same manner as
described in paragraph 6-(1) above.
Fig. 23
CAUTION: * When cutting a workpiece of 3-35/64" (90mm) height, adjust the lower limit position
of the motor head so that the gap between the lower edge of the motor head and
the workpiece will be 5/64" to 1/8" (2 to 3mm) at the lower limit position.
* If the handle is pressed down with excessive or lateral force, the saw blade may
vibrate during the cutting operation and cause unwanted cutting marks on the
workpiece, thus reducing the quality of the cut.
Accordingly, press the handle down gently and carefully.
* In slide cutting, gently push the handle back (rearwards) in a single, smooth opera-
tion.
Stopping the handle movement during the cut will cause unwanted cutting marks
on the workpiece.
WARNING: * For slide cutting, follow the procedures indicated above in Fig. 23.
Forward slide cutting (toward the operator) is very dangerous because the saw
blade could kick upward from the workpiece. Therefore, always slide the handle
away from the operator.
* Always return the carriage to the full rear position after each crosscut operation in
order to reduce the risk of injury.
* Never put your hand on the side handle during the cutting operation because the
saw blade comes close to the side handle when the motor head is lowered.
Slide Securing Knob
Hinge
Holder (A)
Handle
Press
Down
Workpiece
q Pull Forward
e Push Rearward to Cut
Slide securing
knob
Handle
w Pess
Down
Workpiece
