(2) Setting to cut crown moldings at positions 2 and 3 in Fig. 34 (see Fig. 37; tilt the head to the left):
1
Turn the turntable to the left and set the Miter Angle as follows:
* For 45° ty
pe crown moldings: 35.3° ( mark)
* For 38° ty
pe crown moldings: 31.6° ( mark)
2
Tilt the head to the left and set the Bevel Angle as follows:
*
For 45° type crown moldings: 30° ( mark)
* F
or 38° type crown moldings: 33.9° ( mark)
3
Position the crown molding so that the lower surface ( in Fig. 33) contacts the fence as in Fig. 39.
Bevel Angle Scale
Fence
Base
Bevel Angle Scale
Base
2
4
3
1
Miter Angle Scale
Miter Angle Scale
Turntable
Turntable
Fence
Head
Head

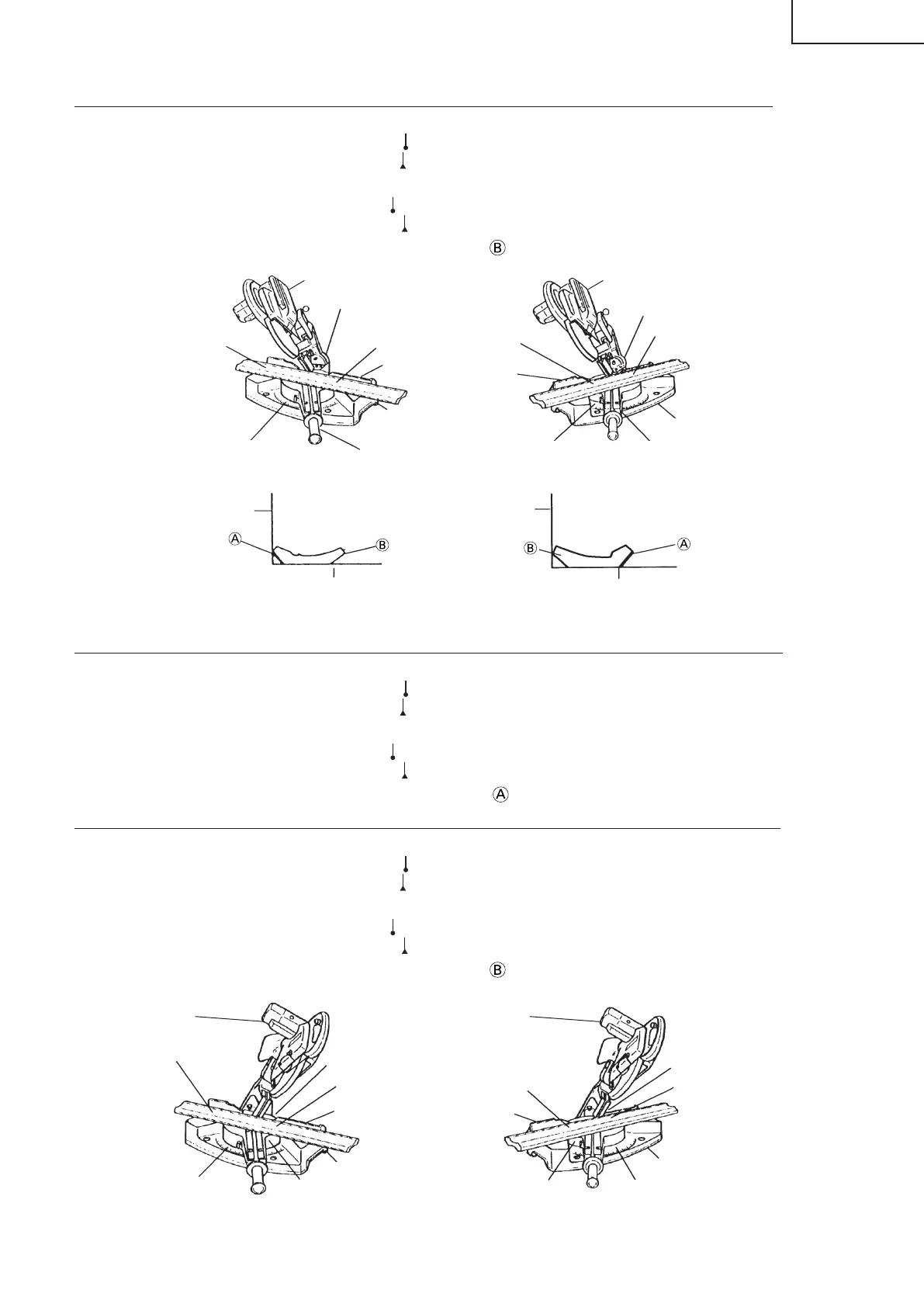

Fig. 36 Fig. 37
Fence
Table on Base
Table on Base
Fence
Fig. 38 Fig. 39
(3) Setting to cut crown moldings at positions 1 and 4 in Fig. 34 (see Fig. 40; tilt the head to the right):
1
Turn the turntable to the right and set the Miter Angle as follows:
* For
45° type crown moldings: 35.3° ( mark)
* For
38° type crown moldings: 31.6° ( mark)
2
Tilt the head to the right and set the Bevel Angle as follows:
* F
or 45° type crown moldings: 30° ( mark)
* F
or 38° type crown moldings: 33.9° ( mark)
3
Position the crown molding so that the upper surface ( in Fig. 33) contacts the fence as indicated Fig. 42.
(4) Setting to cut crown moldings at positions 2 and 3 in Fig. 34 (see Fig. 41; tilt the head to the right):
1
Turn the turntable to the left and set the Miter Angle as follows:
* For
45° type crown moldings: 35.3° ( mark)
* For
38° type crown moldings: 31.6° ( mark)
2
Tilt the head to the right and set the Bevel Angle as follows:
* Fo
r 45° type crown moldings: 30° ( mark)
* For
38° type crown moldings: 33.9° ( mark)
3
Position the crown molding so that the lower surface ( in Fig. 33) contacts the fence as in Fig. 43.
Bevel Angle Scale
Fence
Turntable
1
4
Base
Miter Angle Scale
Fence
Turntable
Bevel Angle Scale
Base
Miter Angle Scale
2
3
Head
Head
Fig. 40 Fig. 41
