CAUTION
● Make sure to remove any dirt or grit when
attaching the plug to its original position.
●
Before attempting inspection or maintenance
of the gear case, make sure the case has
cooled.
Semi-auto cutting head
Nylon line replacement

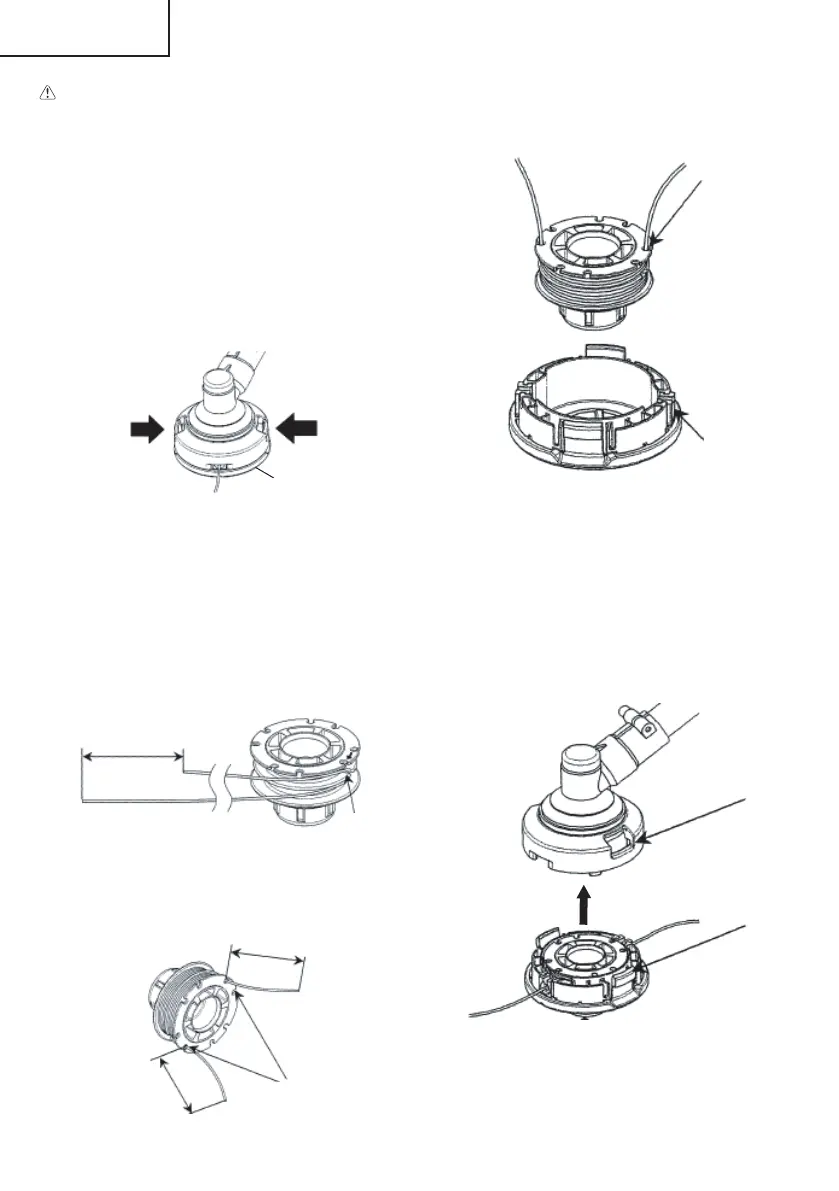

(1) Remove the case (33) by fi rmly pushing inward
the locking tabs with your thumbs as shown in
Fig. 29.
33
Fig. 29
(2) After removing the case, take out the reel and
discard the remaining line.
(3) Fold the new nylon line unevenly in half as shown
in picture.
Hook the U-shaped end of the nylon line into the
groove (34) on the center partition of the reel.
Wind both halves of the line on the reel in the
same direction, keeping each half of the line on
its own side of the partition. (Fig. 30)
34
4˝ (10 cm)
Fig. 30
(4) Push each line into the stopper holes (35),
leaving the loose ends approx. 4˝ (10 cm) in
length. (Fig. 31)
35
4˝ (10 cm)
4˝ (10 cm)
Fig. 31
(5) Insert both loose ends of the line through the
cord guide (36) when placing the reel in the case.
(Fig. 32)
36
35
Fig. 32
NOTE
When placing a reel in the case, try to line up the
stopper holes (35) with the cord guide (36) for
easier line release later.
(6) Place the cover over the case so that the cap
locking tabs (37) on the case meet the long holes
(38) on the cover. Then push the case securely
until it clicks into place. (Fig. 33)
37
38
Fig. 33
