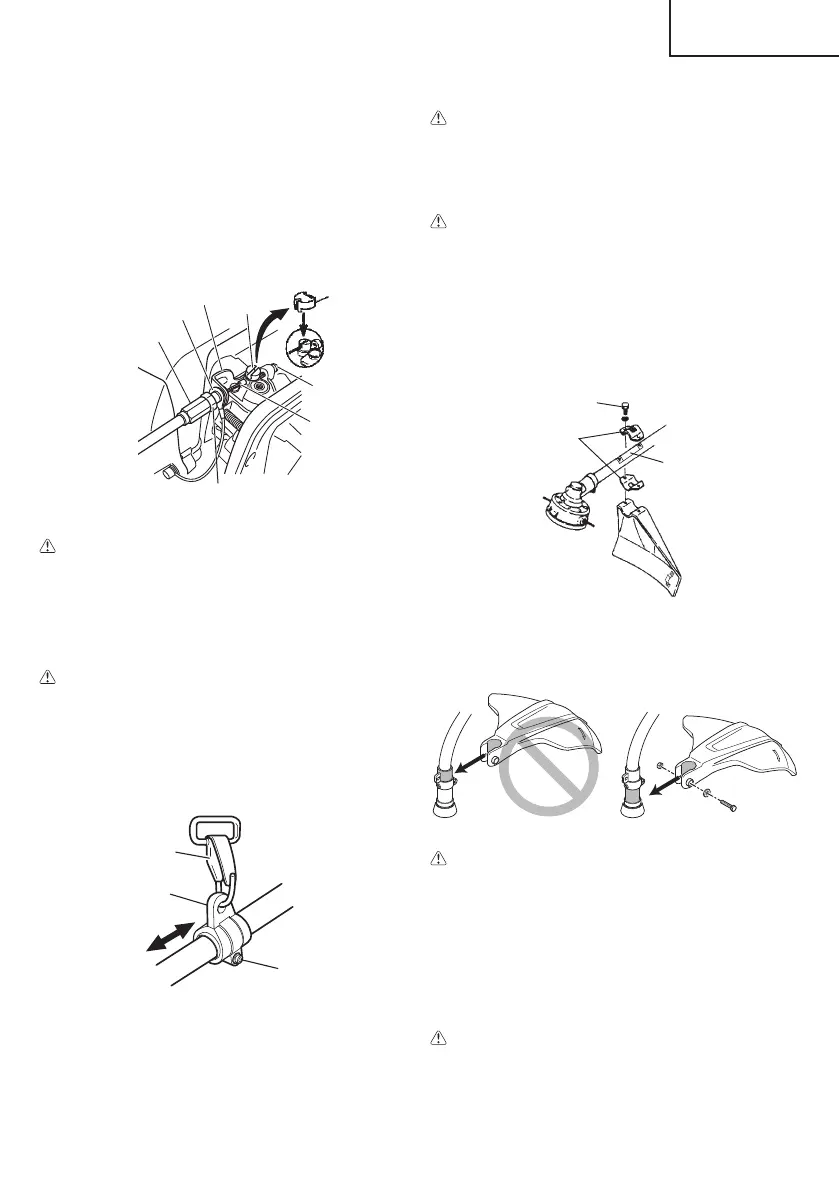

If the throttle outer end (8) is threaded on your unit,
screw it and the earth terminal (9) (if so equipped)
into the cable adjuster stay (10) all the way, and then
tighten this cable end using the adjuster nut (11)
against the cable adjuster stay (10).
Connect throttle wire end (12) to swivel (13)
of carburetor and install swivel cap (14) (if so
equipped) where is included in tool bag, onto swivel
(13) (Fig. 6).
Some models may come with the parts installed.
9
10
8
11
12
13
14
15
Fig. 6
CAUTION
Open and close the throttle and verify that
the swivel (13) abuts against screw (15)
when the throttle is closed.
Installation of harness
(If so equipped)
WARNING
If the product includes a harness, always
make sure to use it.
Attach the harness hook (16) to the hanger (17) on
the drive shaft tube. (Fig. 7)
Adjust the length of the harness for easy operation
of the tool.
16
17
18
Fig. 7
NOTE
You may need to adjust the position of the
hangar (17) to balance the unit. To do so, loosen
bolt (18) and adjust the position of hangar (17).
After adjusting as necessary, make sure to
securely tighten the bolt (18). (Fig. 7)
Installation of cuttingt attachment guard
WARNING
● Do not start or operate unit unless each
guard is properly assembled to unit.
● If an incorrect or faulty guard is fi tted, this
may cause serious personal injury.
CAUTION
Some cutting attachment guards are
equipped with sharp line limiters. Be careful
with handling it.
Aligning to the position indicated by the guard
location label (19), fi rmly secure the cutting
attachment guard to the drive shaft tube with the bolt
(20) and guard bracket (21). (Fig. 8)
20
21
19
Fig. 8
(Curved shaft model)
Attach the cutter case to the cutting attachment
guard and fi rmly secure with the bolt and nut. (Fig. 9)
Fig. 9
WARNING
● lf unit is operated without a sharp line
limiters, the line will become too long, the
engine will overheat, and engine damage
may occur.
● Check sharp line limiters surely cut nylon
line when operating.
Installation of cutting attachment
WARNING
● Install the cutting attachment properly
and securely as instructed in the handling
instructions.
If not attached properly or securely, it may
come off and cause serious and/or fatal injury.
