Hitachi CH-Box User Manual

BADC
Outdoor Unit Connecting Side
Indoor Unit Connecting Side
(For Suspension Bolt)
34020
25630
60
155
67
67
352
551
260
Electrical Box
110
198
199
86
34
17635
Control Wiring Connection
(ɸ26)
Refrigerant Liquid Pipe
Connections
(4 x ɸ9.52 Flare Nuts)
Refrigerant Gas Pipe
Connection
(4 x ɸ15.88 Flare Nuts)
Power Supply Wiring
Connection (ɸ26)
Ground Terminal (M5)
(in Electrical Box)
60 x 3 = 180
38 30338
Refrigerant Gas
(High/Low Pressure)
Pipe Connection
(I.D. ɸ22.36)
540
Suspension Bracket
4 - (12 x 32) Slotted Hole
42
60
156
50
180
244
60
(For Suspension Bolt)
Refrigerant Gas
(Low Pressure)
Pipe Connection
(I.D. ɸ25.6)
Refrigerant Liquid
Pipe Connection
(I.D. ɸ12.9)
P
View from P
P5417025-rev.1
1
1. Safety Summary
● Do not perform installation work, refrigerant
piping work or electrical wiring connection
without referring to our installation manual.
● Check that the ground wire is securely
connected.
● Connect a fuse of specied capacity.

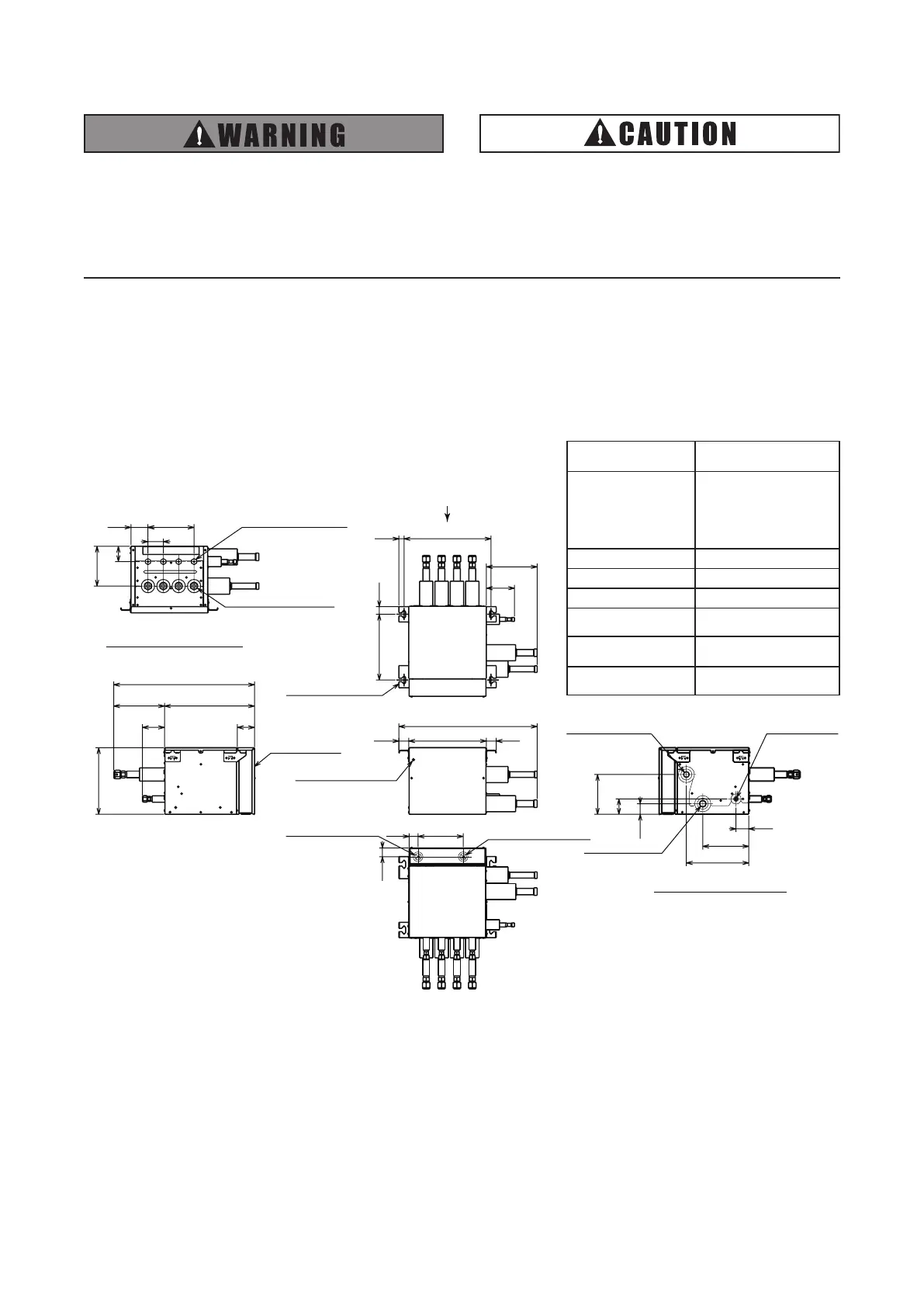

Figure2.1DimensionsofCH-Box
2. Structure
2.1 Dimensions
CH-AP04MSSX
JCH-AP04MSSX
Unit:mm
Specications
Model
CH-AP04MSSX
JCH-AP04MSSX
PowerSupply
1/N~,220-240V,50Hz
1/N~,220V,60Hz
1/N~,230V,50Hz
1~,208-230V,60Hz*
1~,220V,60Hz*
*ForMexicomodelonly.
Input(W) 11.2
Refrigerant R410A
NetWeight(kg) 14
ConnectableIndoorUnit
TotalCapacity
16.0HPorless
ConnectableIndoorUnit
TotalCapacityperBranch
6.0HPorless
(Max.16.0kW)
NumberofConnectable
IndoorUnitperBranch
1to6
Do not install the CH-Box and cable within
approximately 3m (10 ft) from strong
electromagnetic wave radiators such as
medical equipment.
