Hitachi CP-A220N User Manual

29

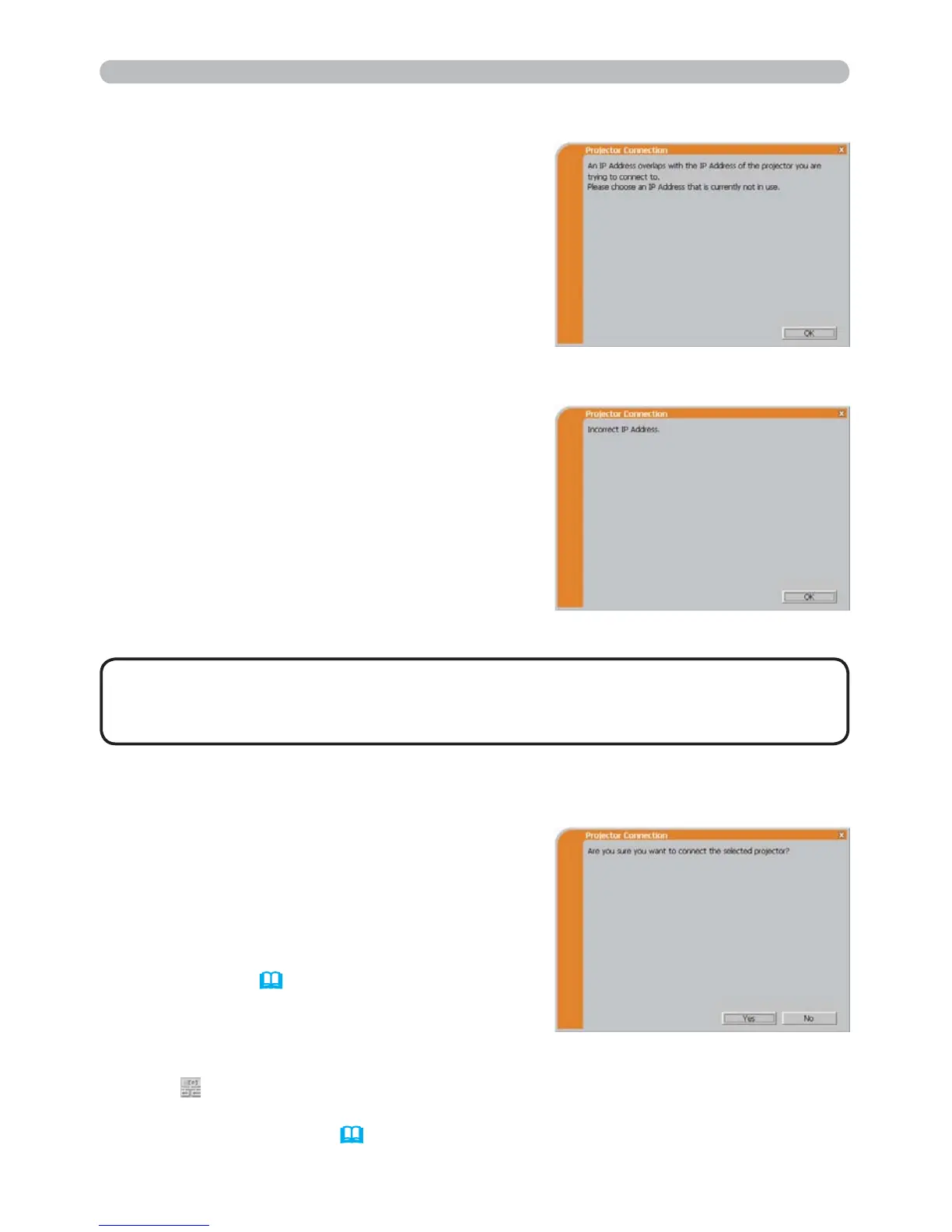

1.7 Conguring the network settings manually (continued)
1. Connection to the network
If the entered IP address and projector's IP
address are the same, a warning dialog shown
to the right will be displayed.
Click the [OK], and then enter a different IP
address from the projector's one in the dialog
for changing Network conguration.
If the connection is not available with the
entered Network conguration, a warning
dialog shown to the right will be displayed.
Click the [OK] to return to the dialog for
changing the Network conguration, and then
enter appropriate conguration.
• If a Network conguration to connect to the projector has been added
on the computer, the added Network conguration will be erased once the
application software is closed.
NOTE
The message is appeared when the wireless
adapter you selected is already used for
another network connection.
• To connect, click the [Yes]. Proceed to item
&RQ¿UPLQJWKHFRQQHFWLRQWR\RXU
destination. (
30)
• Not to connect, click the [No] then the
“LiveViewer” main menu is displayed even
though the network is not established.
Click
on the main menu to go back
to item 1.5 Selecting the network
connection method. (
14)
 Are you sure you want to connect the selected projector?

Hitachi CP-A220N Specifications

General

Matrix size	0.63 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	106 kHz
Horizontal synchronization (min)	15 kHz
Throw ratio	0.3:1
Focal length range	- mm
Lamp power	210 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	10 W
Number of built-in speakers	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Optical disc player type	Not included
Noise level	35 dB
Certification	UL, C-UL, FCC, CE
Noise level (economic mode)	28 dB
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	310 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	303 mm
Width	344.93 mm
Height	85.09 mm
Weight	3900 g
