Hitachi CP-A220N User Manual

13
ENGLISH
Focusing
Use the FOCUS + and FOCUS – buttons on
the projector or remote control to adjust the
screen focus.
Selecting an aspect ratio
Each time you press the ASPECT button on
the remote control, it switches the aspect
ratio of the image, in turn.
ooming
Use the D-ZOOM + and D-ZOOM – buttons
on the remote control to adjust the screen size.
Adjusting the picture position
After pressing the POSITION button on the remote control, use the ▲, ▼, ◄ and
► buttons. Press the POSITION button again to finish this operation.
Correcting distortion
Press the KEYSTONE button on the remote control. A dialog will appear on the
screen to aid you in correcting the distortion.
Use the ▲/▼ cursor buttons to select,
MANUAL or PERFECT FIT operation, and
press the ► button to perform the following.
MANUAL displays a dialog for keystone correction.
PERFECT FIT displays a dialog for adjusting the shape of the projected image in
each of the corners and sides.
Use the cursor buttons according to the dialog, checking the image.
Press the KEYSTONE button again to finish this operation.
Adjusting the volume
Use the VOLUME +/- buttons to adjust the volume.
Muting the sound
Press the MUTE button on the remote control. To restore the sound, press the
MUTE or VOLUME+/- button.
NOTE • The ASPECT button does not work when no proper signal is inputted.
• For details, see the Operating Guide in the CD.
CAUTION ►If you wish to have a blank screen while the projector's lamp is
on, use the BLANK function (see the Operating Guide).
Any other method of blocking the projection light, such as attaching something
to the lens or placing something in front of the lens, may cause the damage to
the projector.
VIDEO
DOC.CAMERA
KEYSTONE
ASPECT SEARCH
BLANK
MUTE
MY BUTTON
POSITION
12
ESC
ENTER
MENU
RESET
COMPUTER
MY SOURCE/
AUTO
MAGNIFY
VOLUME
࡯
ON
OFF
㧗
FREEZE
FOCUS D-ZOOM
- + - +
PAGE
UP
DOWN

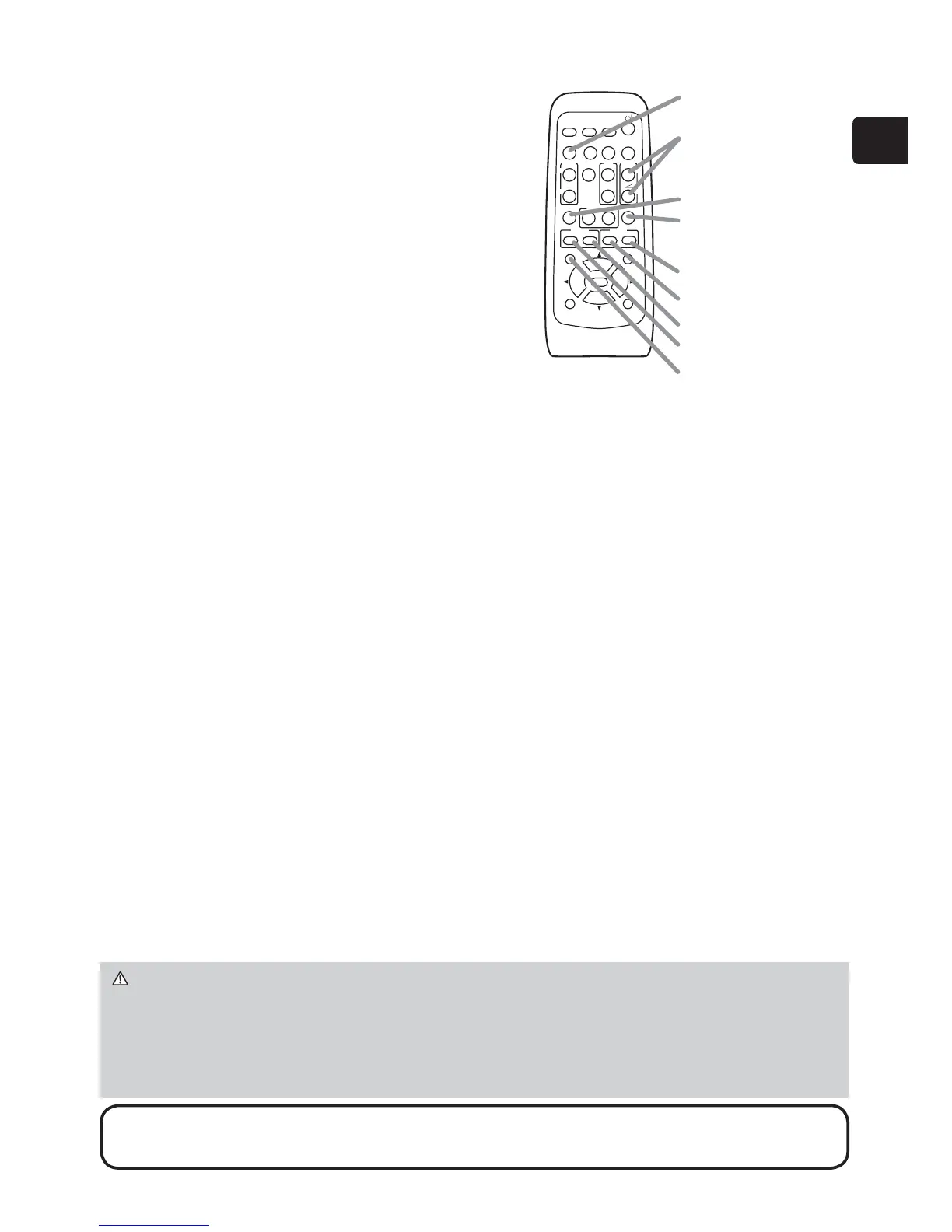

ASPECT button
VOLUME+/- button
KEYSTONE button
MUTE button
D-ZOOM + button
D-ZOOM - button
FOCUS + button
FOCUS - button
POSITION button

Hitachi CP-A220N Specifications

General

Matrix size	0.63 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	106 kHz
Horizontal synchronization (min)	15 kHz
Throw ratio	0.3:1
Focal length range	- mm
Lamp power	210 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	10 W
Number of built-in speakers	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Optical disc player type	Not included
Noise level	35 dB
Certification	UL, C-UL, FCC, CE
Noise level (economic mode)	28 dB
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	310 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	303 mm
Width	344.93 mm
Height	85.09 mm
Weight	3900 g
