22

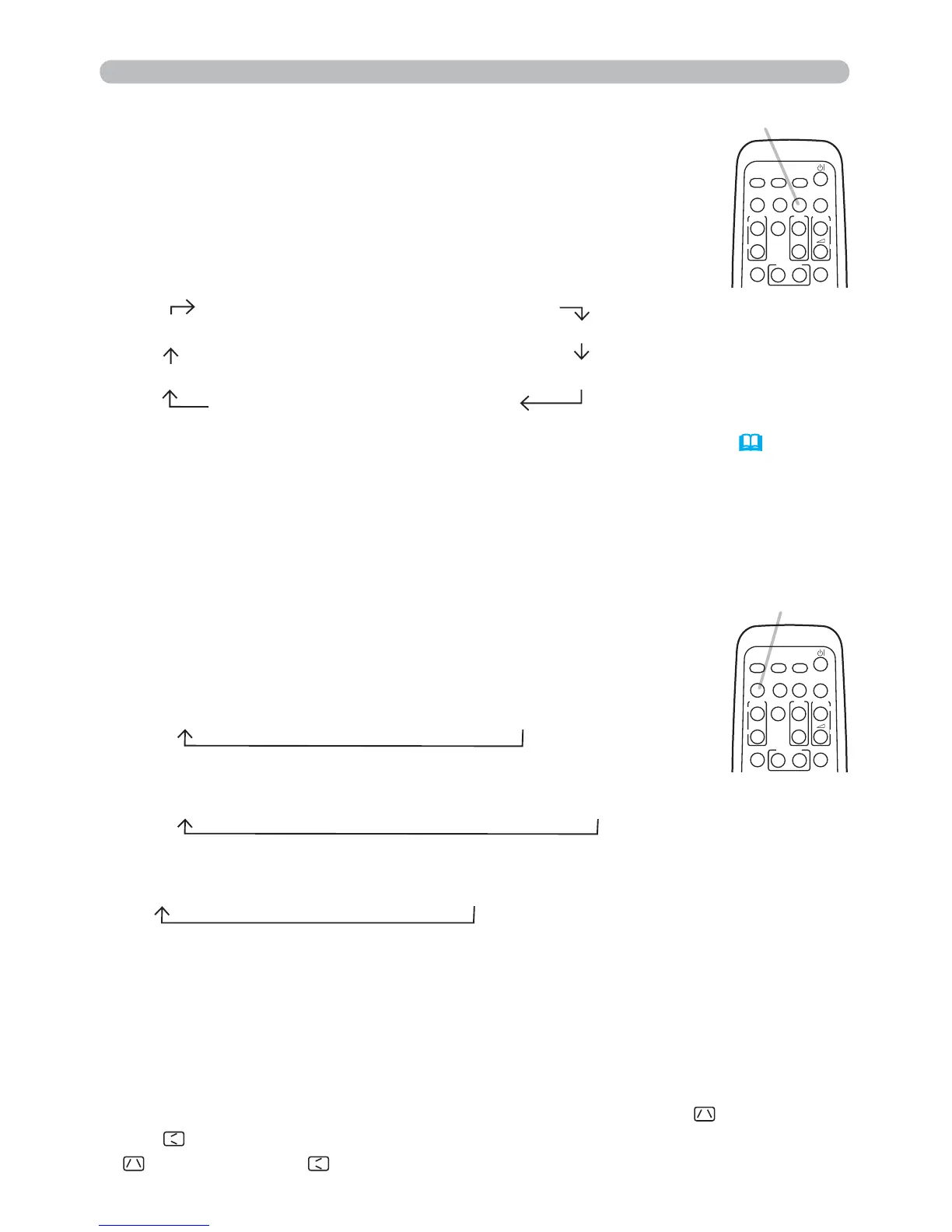

1.
Press ASPECT button on the remote control.
Each time you press the button, the projector switches the
mode for aspect ratio in turn.
Selecting an aspect ratio
ASPECT button does not work when no proper signal is inputted.
NORMAL mode keeps the original aspect ratio setting.
The on-screen menu might be displayed outside of the image display area
depending on the adjustment value of the ASPECT, D-ZOOM, KEYSTONE
and
KEYSTONE. Changing the values of ASPECT, D-ZOOM,
KEYSTONE and KEYSTONE may x the symptom.
1.
Press SEARCH button on the remote control.
The projector will start to check its input ports as below in
order to nd any input signals.
When an input is found, the projector will stop searching
and display the image. If no signal is found, the projector will
return to the state selected before the operation.
Searching an input signal
While ON is selected for AUTO SEARCH item in OPTION menu (53), the
projector will keep checking the ports in above order repeatedly till an input
signal is detected.
It may take several seconds to project the images from the USB TYPE B port.
For a computer signal
NORMAL Æ 4:3 Æ 16:9 Æ 16:10 Æ NATIVE
For a video signal, s-video signal or component video signal
4:3 Æ 16:9 Æ 16:10 Æ 14:9 Æ NATIVE
For an input signal from the LAN, USB TYPE A or USB TYPE B port, or
if there is no signal
4:3 (xed)
Operating
For an HDMI
TM
signal
NORMAL Æ 4:3 Æ 16:9 Æ 16:10 Æ 14:9 Æ NATIVE
SEARCH button
VIDEO
DOC.CAMERA
KE STONE
ASPECT SEARCH
BLANK
MUTE
M BUTTON
12
COMPUTER
M SOURCE/
AUTO
MAGNIF
VOLUME
ON
OFF
FREE E
PAGE
UP
DOWN
ASPECT button
VIDEO
DOC.CAMERA
KEYSTONE
ASPECT SEARCH
BLANK
MUTE
MY BUTTON
12
COMPUTER
MY SOURCE/
AUTO
MAGNIFY
VOLUME
ON
OFF
FREE E
PAGE
UP
DOWN
COMPUTER IN1 Æ COMPUTER IN2
VIDEO LAN
S-VIDEO USB TYPE A
HDMI
Æ
USB TYPE B
