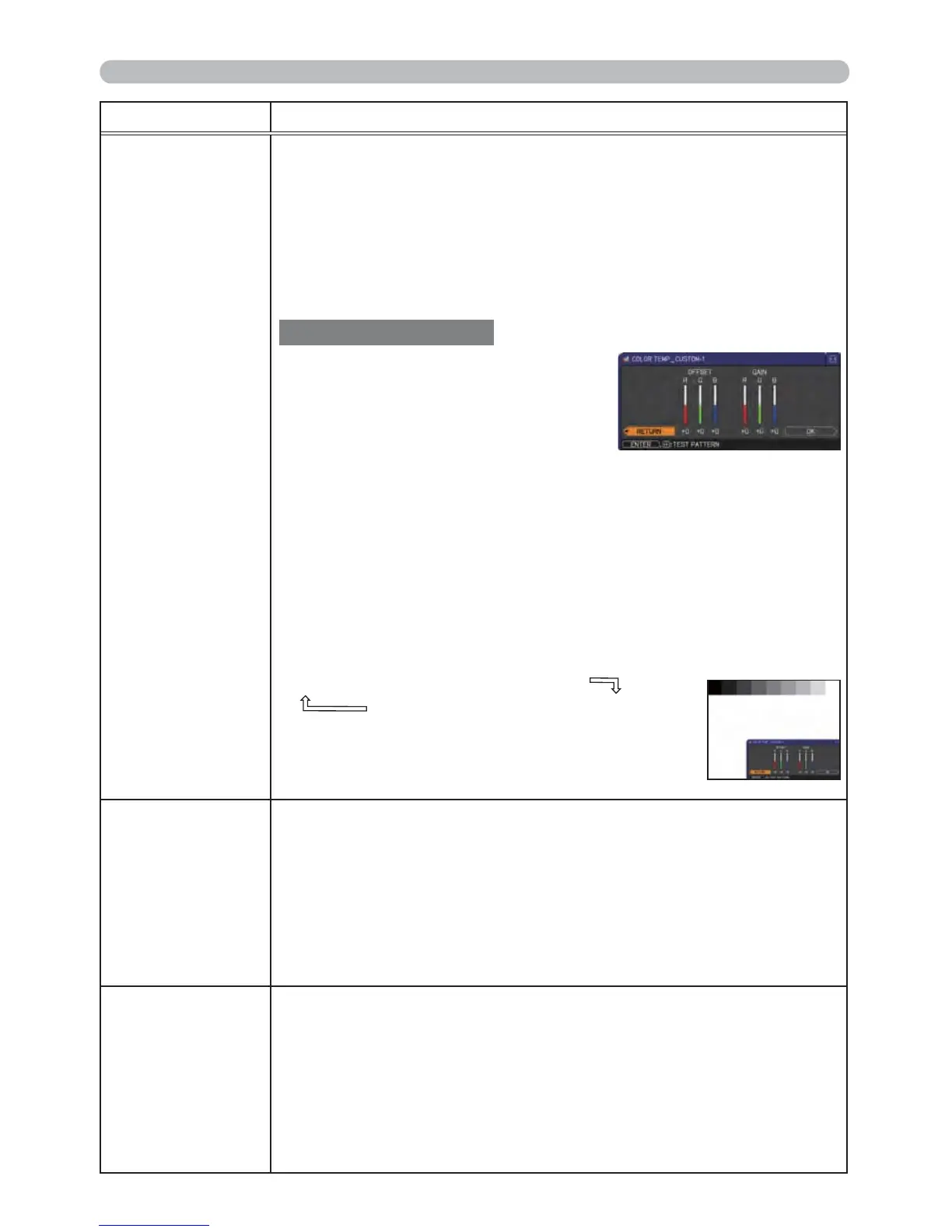

PICTURE menu
(continued on next page)
Item Description
COLOR TEMP
Using the ▲/▼ buttons switches the color temperature mode.
To adjust CUSTOM
Selecting a mode whose name includes
CUSTOM and then pressing the ► button
or the ENTER button displays a dialog
to aid you in adjusting the OFFSET and
GAIN of the selected mode.
OFFSET adjustments change the color intensity on the whole tones
of the test pattern.
GAIN adjustments mainly affect color intensity on the brighter tones
of the test pattern.
Choose an item using the ◄/► buttons, and adjust the level using
the ▲/▼ buttons.
You can display a test pattern for checking the effect of your
adjustment by pressing the ENTER button.
Each time you press the ENTER button, the pattern changes as below.
No pattern
Ö
Gray scale of 9 steps
Ramp
Õ
Gray scale of 15 steps
• Lines or other noise might appear on the screen
when this function is operated, but it is not a
malfunction.
COLOR
Using the ◄/► buttons adjusts the strength of whole color.
Weak
Ù
Strong
• This item can be selected only for a video, s-video and component
video signal.
•
For an HDMI
TM
signal, this item can also be selected if either (1) or (2) applies.
(1) HDMI FORMAT item in the INPUT menu is set to VIDEO.
(2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the
projector recognizes that it receives video signals.
TINT
Using the ◄/► buttons adjusts the tint.
Reddish
Ù
Greenish
• This item can be selected only for a video, s-video and component
video signal.
•
For an HDMI
TM
signal, this item can also be selected if either (1) or (2) applies.
(1) HDMI FORMAT item in the INPUT menu is set to VIDEO.
(2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the
projector recognizes that it receives video signals.
1 HIGH
Ù
1 CUSTOM
Ù
2 MID
Ù
2 CUSTOM
3 LOW
5 CUSTOM
Ù
5 Hi-BRIGHT-2
Ù
4 CUSTOM
Ù
4 Hi-BRIGHT-1
6 CUSTOM
Ù
Ù
ÙÙÙ
6 Hi-BRIGHT-3
Ù
3 CUSTOM

Hitachi CP-A220N Specifications

General

Matrix size	0.63 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	106 kHz
Horizontal synchronization (min)	15 kHz
Throw ratio	0.3:1
Focal length range	- mm
Lamp power	210 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	10 W
Number of built-in speakers	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Optical disc player type	Not included
Noise level	35 dB
Certification	UL, C-UL, FCC, CE
Noise level (economic mode)	28 dB
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	310 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	303 mm
Width	344.93 mm
Height	85.09 mm
Weight	3900 g
