Hitachi CP-A220N User Manual

43

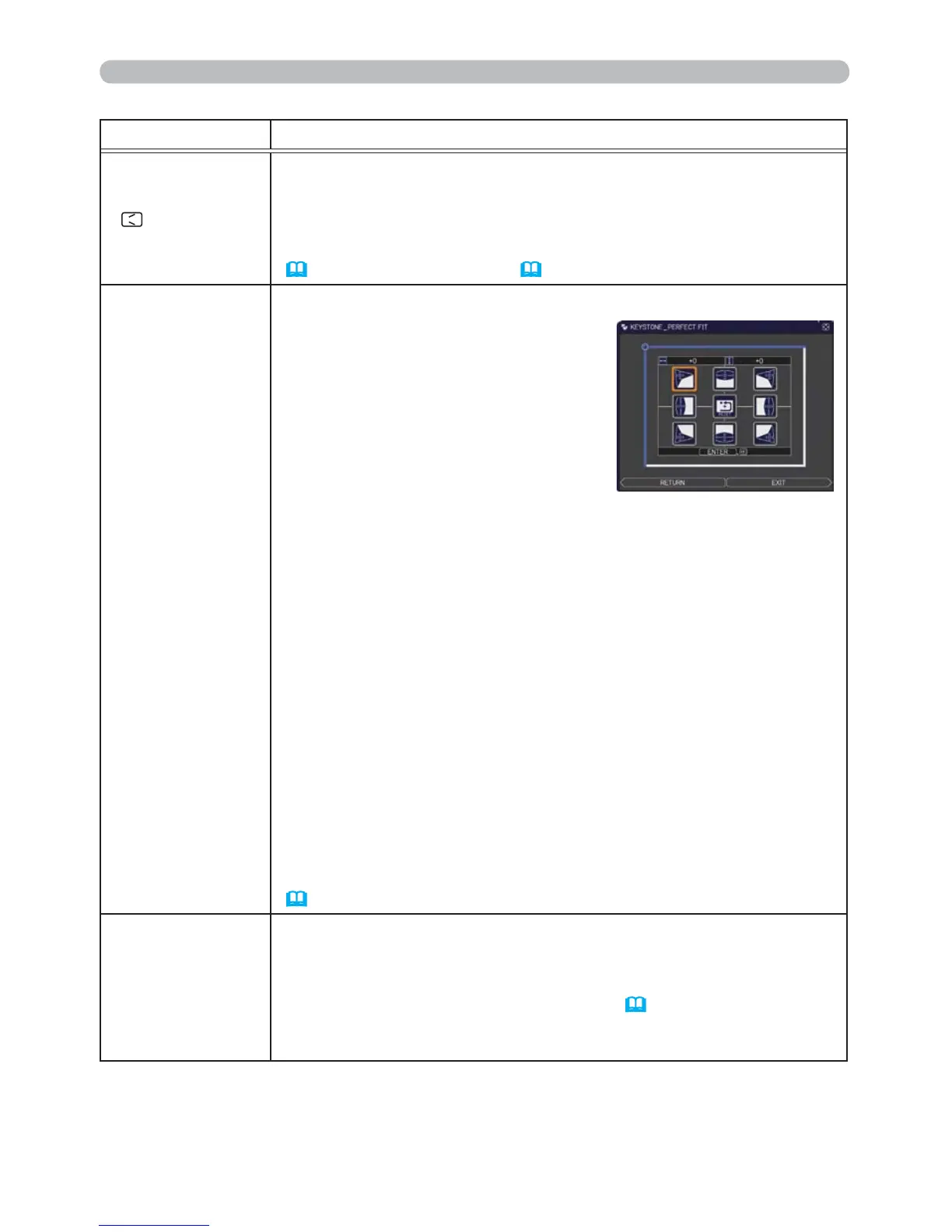

SETUP menu
Item Description
KEYSTONE
Using the ◄/► buttons corrects the horizontal keystone distortion.
Shrink the right of the image
Ù
Shrink the left of the image
• The adjustable range of this function will vary among inputs. For
some input, this function may not work well.
• This function will be unavailable when the Transition Detector is on
(

74) or the PERFECT FIT (

43) is adjusted.
PERFECT FIT
This item allows you to adjust the shape of the projected image in
each of the corners and sides.
(1) Choose a corner or side to adjust
using the ▲/▼/◄/► buttons and press
the ENTER or INPUT button.
(2) Adjust the distortion as below. Use
the ▲/▼/◄/► buttons to adjust the
position of the corner. Use the ▲/▼
buttons to adjust the distortion of the
top or bottom side, after dening the
adjusting position with the ◄/► buttons.
Use the ◄/► buttons to adjust the distortion of the left or right side,
after dening the adjusting position with the ▲/▼ buttons.
(3) To adjust another corner or side, follow the same procedure
from (1) above. To reset the adjustment of all the corners and sides,
select RESET with the ▲/▼ buttons and press the ENTER or
INPUT button.
• While the distortion is adjusted with the PERFECT FIT function,
keystone adjustment feature is unavailable. To correct the keystone
distortion, reset the adjustment of all the corners and sides.
• The adjustable range of this correction will vary among inputs. For
some input, this function may not work well.
• One adjustment position common to the top and bottom sides can
be set. Also, another adjustment position common to the left and
right sides can be set.
• The distortion of the top and bottom sides can be adjusted only in
the same direction, pincushion or barrel. The adjustment for the left
and right sides is carried out in the same manner.
• This function will be unavailable when the Transition Detector is on
(

74).
AUTO ECO MODE
Using the ▲/▼ buttons turns on/off the AUTO ECO MODE.
ON
Ù
OFF
•
When ON is selected, the projector will always be set to Eco mode
at start-up regardless of the ECO MODE (

44) setting. An OSD
message “AUTO ECO MODE” will be displayed for tens of seconds
when the projector starts with this function activated.
(continued on next page)

Hitachi CP-A220N Specifications

General

Matrix size	0.63 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	106 kHz
Horizontal synchronization (min)	15 kHz
Throw ratio	0.3:1
Focal length range	- mm
Lamp power	210 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	10 W
Number of built-in speakers	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Optical disc player type	Not included
Noise level	35 dB
Certification	UL, C-UL, FCC, CE
Noise level (economic mode)	28 dB
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	310 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	303 mm
Width	344.93 mm
Height	85.09 mm
Weight	3900 g
