CP-X2520 ( M2-25ED ) / CP-X3020 ( M2-30ED )
Wiring diagram 6
Wiring around lamp house
(1) Wire and secure CNLAP
(2) Attach TSW and wire TSW cable
OK NG
The boss is
between two
wires.
Two wires.can be
seen here separately.
Two wires.cannot be
seen here.
The wire
passes over the
boss.
CNLAP
Ribs
Lamp House

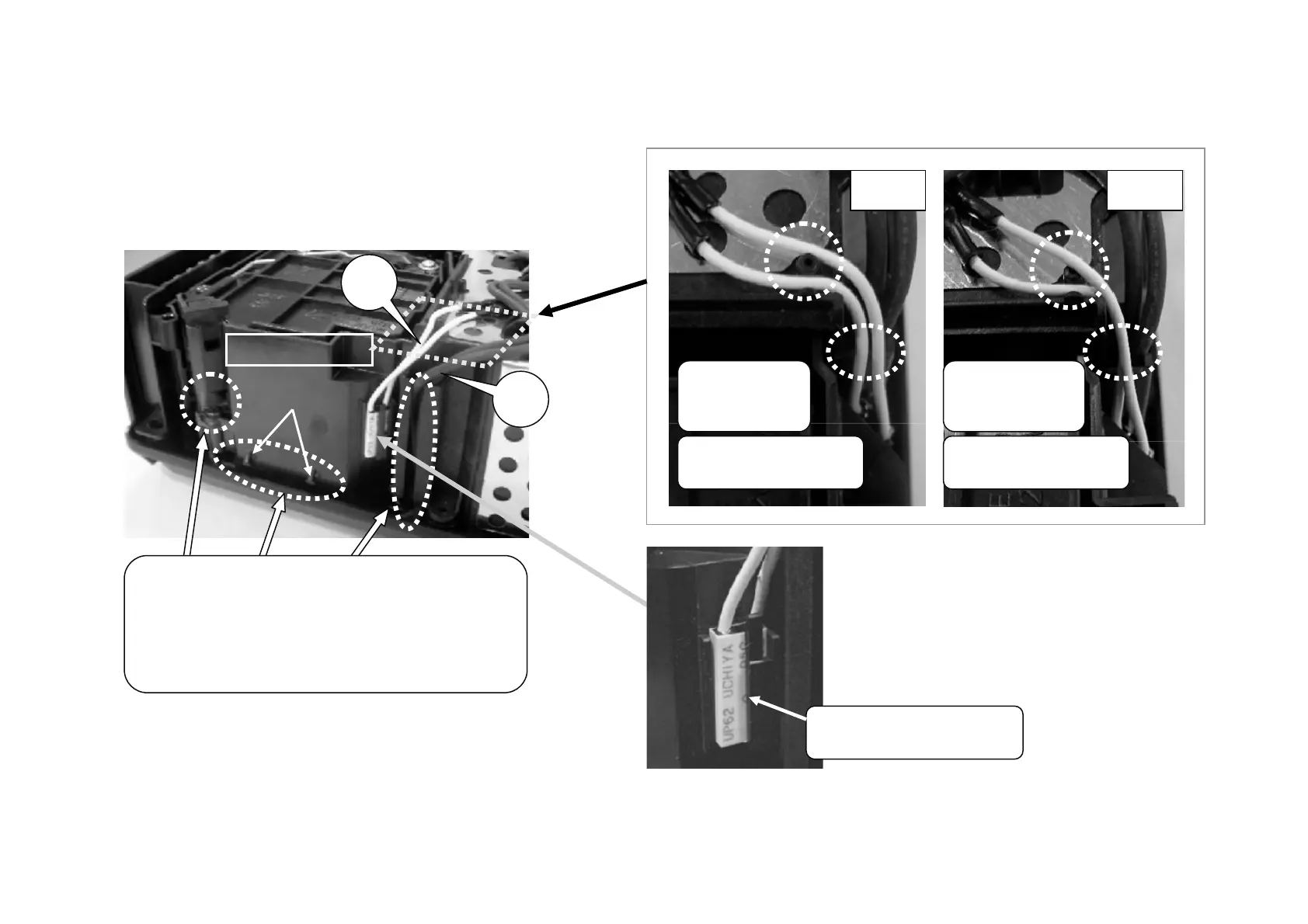

Wire the CNLAP in the procedure below.
1. Secure the connector housing of the CNLAP with
a screw.
2. Push the CNLAP into the space under the ribs on
the side of the lamp house.
3. Pass the CNLAP into the groove.
TSW
cable
Face the printed surface
or the TSW to the outside.
