CP-X2520 ( M2-25ED ) / CP-X3020 ( M2-30ED )
Wiring diagram 8

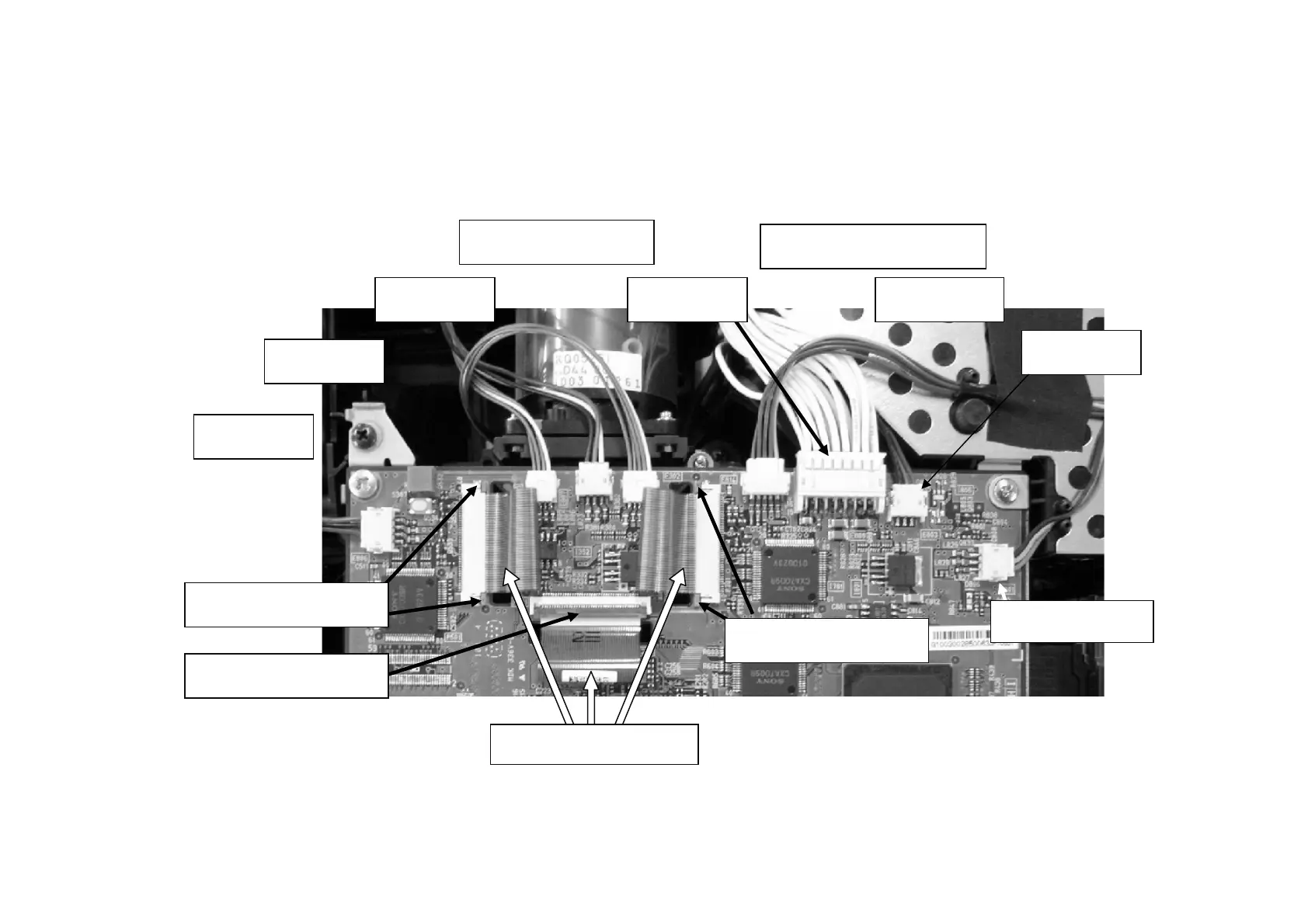

Wiring of MAIN board 1
(1) Attach CNTS and CNGD1
(2) Attach FE1 to CNPFC
Connect the CNBAR with a
click. (Lock type connector)
Connect the
#3010 cable.
Connect the
CNRC cable.
Connect the
#3000 cable.
Connect the
CNAIR cable.
Connect the
CNPOW cable.
Connect the
#3030 cable.
Connect the #3040
(Exhaust fan cable).
Slide the stopper to fasten
the panel flexible cable.
Put the excessive lengths
on the MAIN board.
Slide the stopper to fasten
the panel flexible cable.
Close the stopper to fasten
the panel flexible cable.
Pass the CNAIR over the
other cables here.
