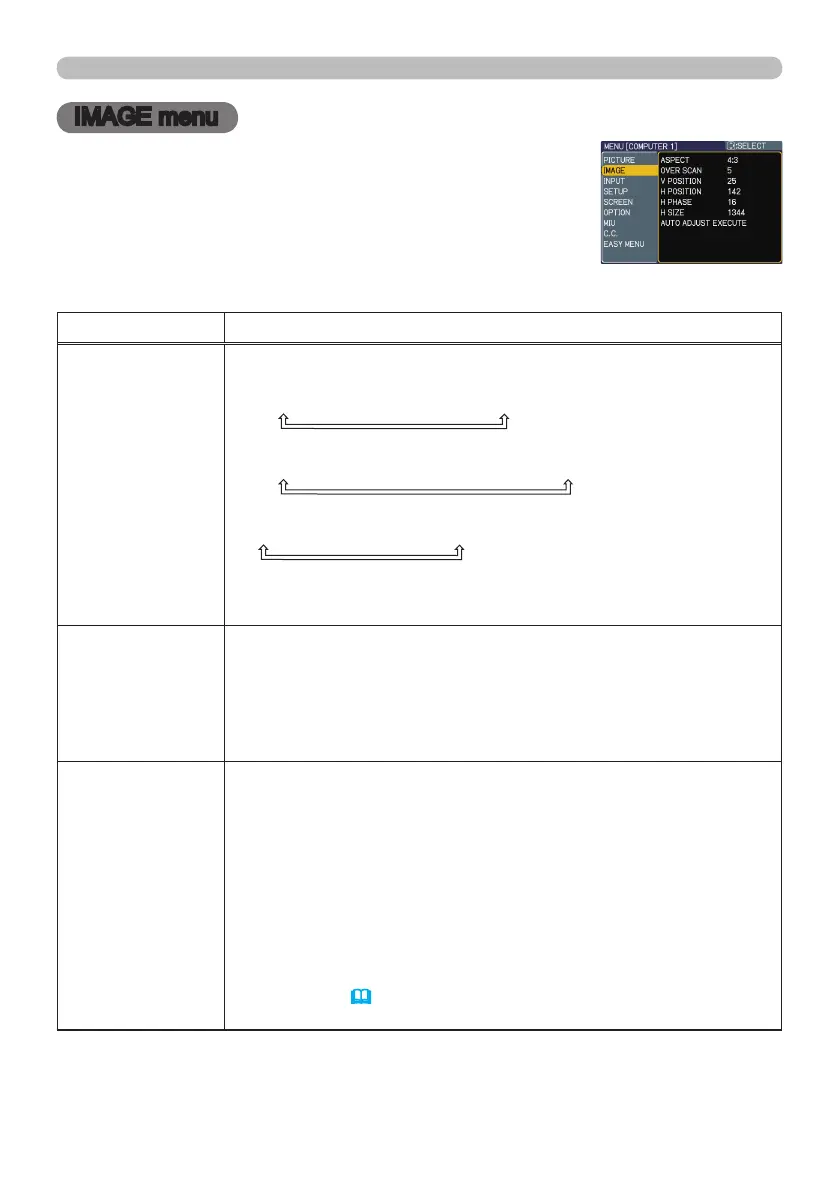

IMAGE menu
IMAGE menu
From the IMAGE menu, items shown in the table below
can be performed.
Select an item using the ▲/▼ cursor buttons, and press
the ► cursor button or ENTER button to execute the item.
Then perform it according to the following table.
Item Description
ASPECT
Using the ▲/▼ buttons switches the mode for aspect ratio.
For a computer signal or MIU signal
NORMAL
ó
4:3
ó
16:9
ó
SMALL
For an HDMI signal
NORMAL
ó
4:3
ó
16:9
ó
14:9
ó
SMALL
For a Video signal, S-video signal or Component video signal
4:3
ó
16:9
ó
14:9
ó
SMALL
For no signal
4:3 (xed)
• The NORMAL mode keeps the original aspect ratio of the signal.
OVER SCAN
Using the ▲/▼ buttons adjusts the over-scan ratio.
Large (It reduces picture)
ó
Small (It magnies picture)
• This item can be selected only for a video, s-vide, component
video and HDMI signal.
• When this adjustment is too large, certain degradation may appear
at the frame area of the picture. In such a case, please adjust small.
V POSITION
Using the ▲/▼ buttons adjusts the vertical position.
Up
ó
Down
•
The V POSITION can not be adjusted for signals from the HDMI port.
• Over-adjusting the vertical position may cause noise to appear
on the screen. If this occurs please reset the vertical position to the
default setting.
Pressing RESET button when V POSITION is selected will reset V
POSITION to the default setting.
• When this function is performed on a video signal, s-video signal,
or component video signal, of 525i (480i) or 625i (576i) input from
the COMPONENT port, the range of this adjustment depends on
OVER SCAN (

above) setting. It is not possible to adjust when
OVER SCAN is set to 10.
(continued on next page)
