Introduction
Part names (continued)
• Any button marked with “*” is not supported on this projector (119).
• Each time you press any button (except ID buttons), the ID button of current
selected ID number will light (
17).
NOTE
Back of
the remote control
Remote control

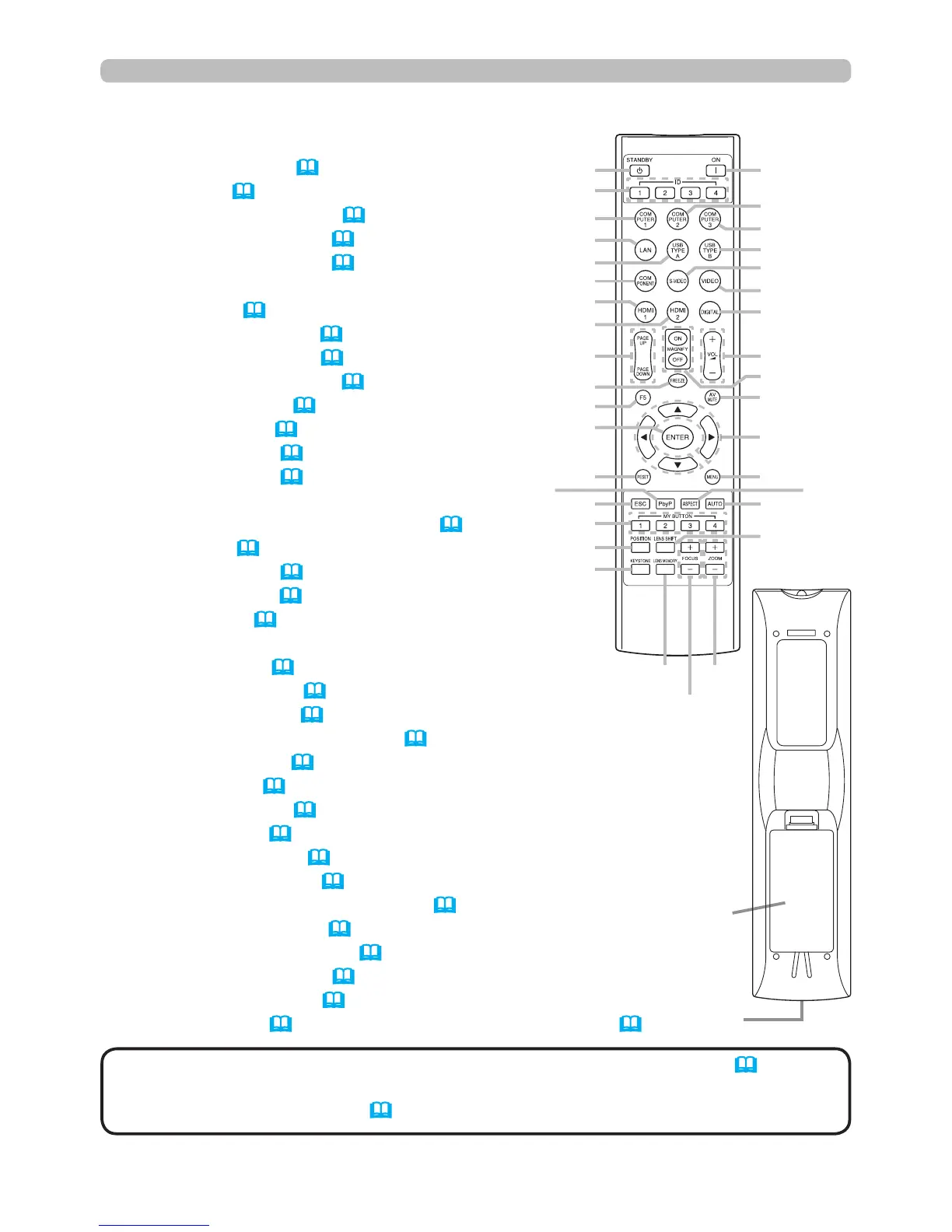

(1) STANDBY button (24)
(2) ON button (
24)
(3) ID - 1 / 2 / 3 / 4 buttons (
17)
(4) COMPUTER 1 button (
26)
(5) COMPUTER 2 button (
26)
(6) COMPUTER 3 button *
(7) LAN button (
26)
(8) USB TYPE A button (
26)
(9) USB TYPE B button (
26)
(10) COMPONENT button (
26)
(11) S-VIDEO button (
26)
(12) VIDEO button (
26)
(13) HDMI 1 button (
26)
(14) HDMI 2 button (
26)
(15) DIGITAL button *
(16)
PAGE UP / PAGE DOWN buttons (19, 100)
(17) F5 button (
18, 19)
(18) ENTER button (
19, 22, 41)
(19) RESET button (
41)
(20) ESC button (
19, 41)
(21) ▲/▼/◄/►cursor buttons
(22) MENU button (
41)
(23) VOL + / - buttons (
25)
(24) AV MUTE button (
25)
(25) MAGNIFY ON / OFF buttons (
35)
(26) FREEZE button (
36)
(27) PbyP button (
37)
(28) ASPECT button (
27)
(29) AUTO button (
31)
(30) POSITION button (
30, 31, 42)
(31) KEYSTONE button (
32)
(32) MY BUTTON - 1, 2, 3, 4 buttons (
71)
(33) LENS SHIFT button (
29)
(34) LENS MEMORY button (
30)
(35) FOCUS + / - buttons (
29)
(36) ZOOM + / - buttons (
29)
(37) Battery cover (
17) (38) Wired remote control port (14)
(1)
(3)
(4)
(7)
(8)
(10)
(13)
(14)
(16)
(26)
(17)
(18)
(19)
(20)
(32)
(30)
(31)
(2)
(5)
(6)
(9)
(11)
(12)
(15)
(23)
(25)
(24)
(21)
(22)
(29)
(33)
(37)
(34) (36)
(35)
(27)
(28)
(38)
