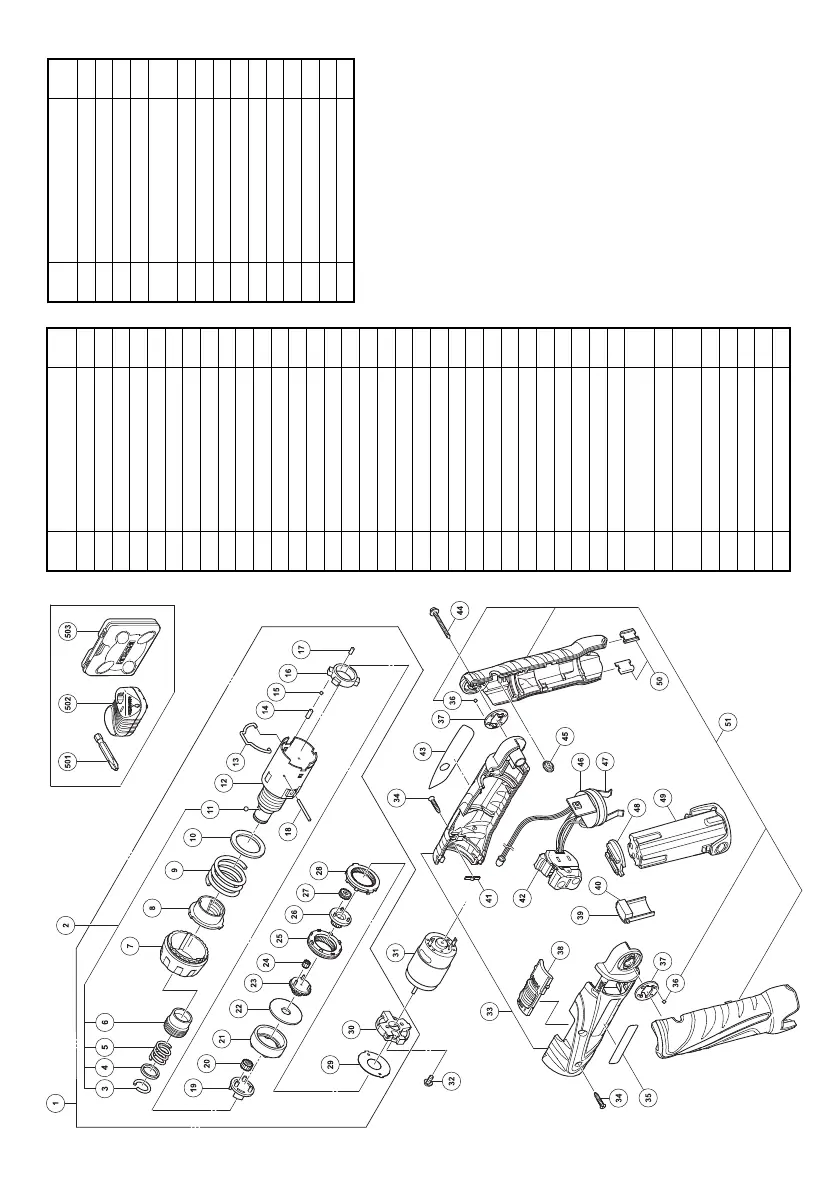

Hitachi DB3DL2 - Parts List; Liste des Pièces; Lista de Piezas

Item
No.
Part Name Q’TY
1
GEAR BOX ASS’Y
1
2 GUIDE SLEEVE SET 1 3 RETAINING RING 1 4WASHER (D) 1 5GUIDE SPRING 1 6GUIDE SLEEVE 1 7 CLUTCH DIAL 1 8NUT 1 9SPRING 1
10 WASHER (D) 1
11 STEEL BALL D3.5 1
12 GEAR CASE 1
13 SHIFT ARM 1
14 PIN 3
15 STEEL BALL D3 3
16 LOCK RING 1
17 NEEDLE ROLLER 6
18 NEEDLE 2
19 CARRIER 1
20 PLANET GEAR (C) SET 3
21 RING GEAR 1
22 WASHER (B) 2
23 PINION (C) 1
24 PLANET GEAR (B) SET 3
25 SLIDE RING GEAR 1
26 PINION (B) 1
27 PLANET GEAR (A) SET 3
28 FIRST RING GEAR 1
29 WASHER (A) 1
30 MOTOR SPACER 1
31 MOTOR 1
32
MACHINE SCREW (W/SP. WASHER) M2.6 × 6
2
33 HOUSING (A) (B) SET 1
34
PAN HD. TAPPING SCREW D3 × 8
4
35 HITACHI LABEL 1
36 STEEL BALL D3 4
37 CLICK PLATE 2
38 SHIFT KNOB 1
39 HANDLE COVER 1
Item
No.
Part Name Q’TY
40 PACKING (A) 1
41 CLICK SPRING 1
42 SWITCH 1
43 NAME PLATE 1
44
TAPPING SCREW (W/FLANGE) D4 × 20
1
45 BUTTON 1
46 PRINTED CIRCUIT BOARD 1
47 TERMINAL 2
48 TERMINAL SUPPORT 1
49 BATTERY (EBM315) 2 50 CLIP 2
51 HANDLE (A) (B )SET 1
501 + DRIVER BIT (B) NO.2 50L 1
502 CHARGER (UC3SFL) 1
503 CASE 1
53
