OPERATING THE MACHINE
5-1

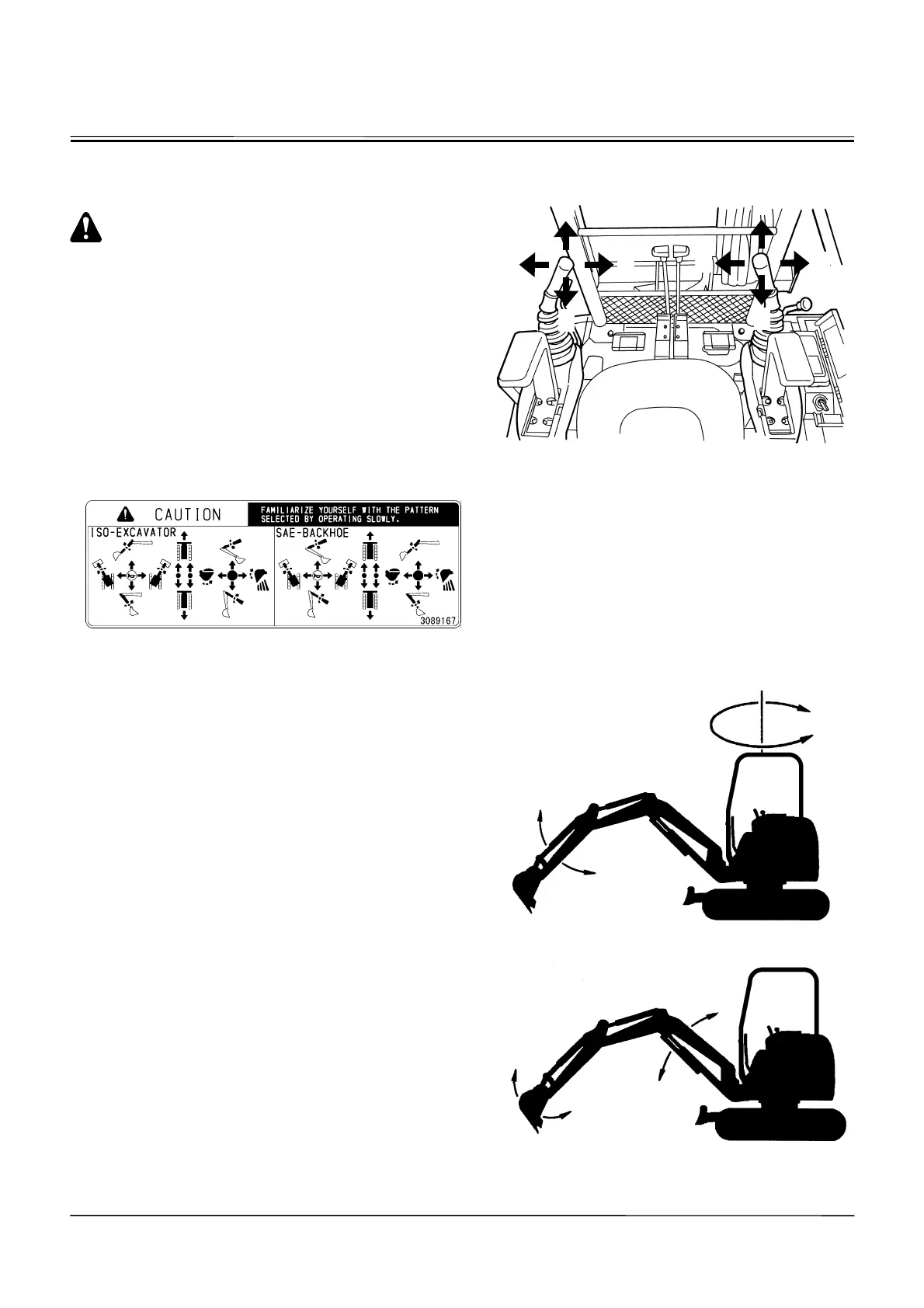

CONTROL LEVER
(ISO EXCAVATOR PATTERN)
CAUTION: Make sure you know the location and
function of each control lever before operating.
The upperstructure and/or front attachment may
unexpectedly move in an attempt to look back
because a part of operator’s body may come into
contact with the control lever(s). Take care not to
come into contact with the control levers when
looking back.
Labels showing the ISO EXCAVATOR pattern are provided
on the operator’s right.
SS3089167
When a lever is released, it automatically returns to neutral,
stopping the function.
1- Arm Roll-Out
2- Arm Roll-In
3- Swing Right
4- Swing Left
5- Boom Lower
6- Boom Raise
7- Bucket Roll-In
8- Bucket Roll-Out
M586-01-023
M586-05-032
M586-05-033
2
1
4
3
3
2
4
1
8
6
7
5
5
7
8
6
